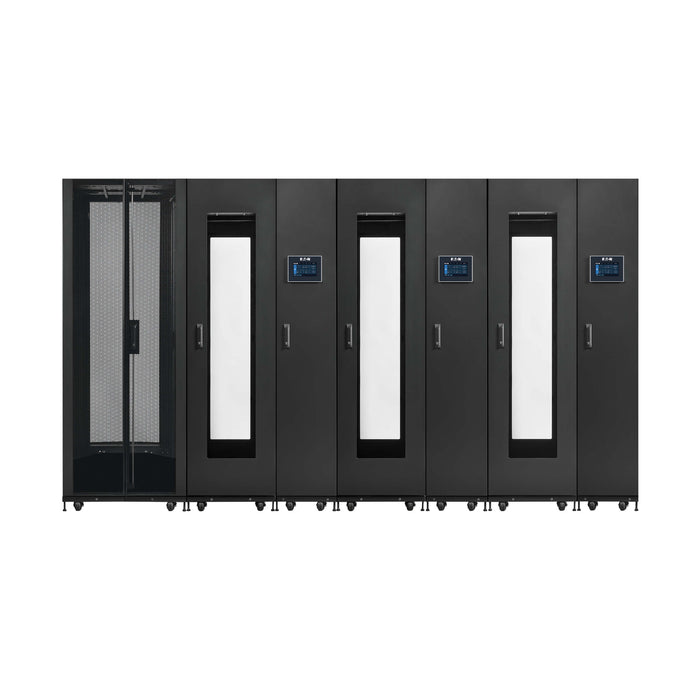

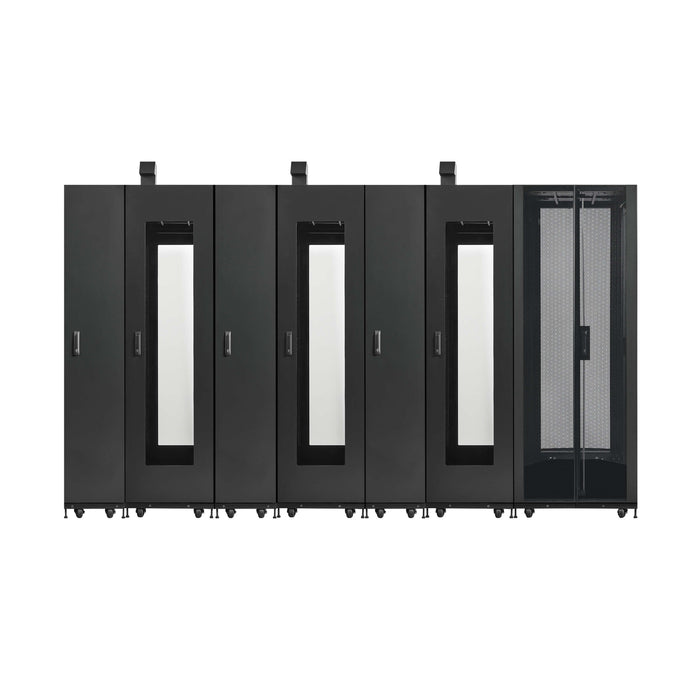

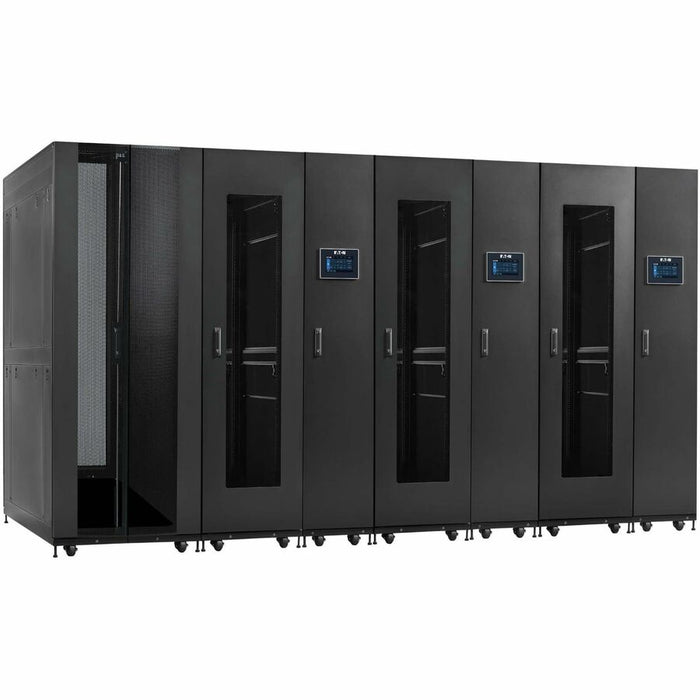

Eaton SmartRack Modular Data Center, 3x 44U Racks, 3x 12kW Cooling Units, Customizable Service Enclosure – SRP-3R-3C12-M

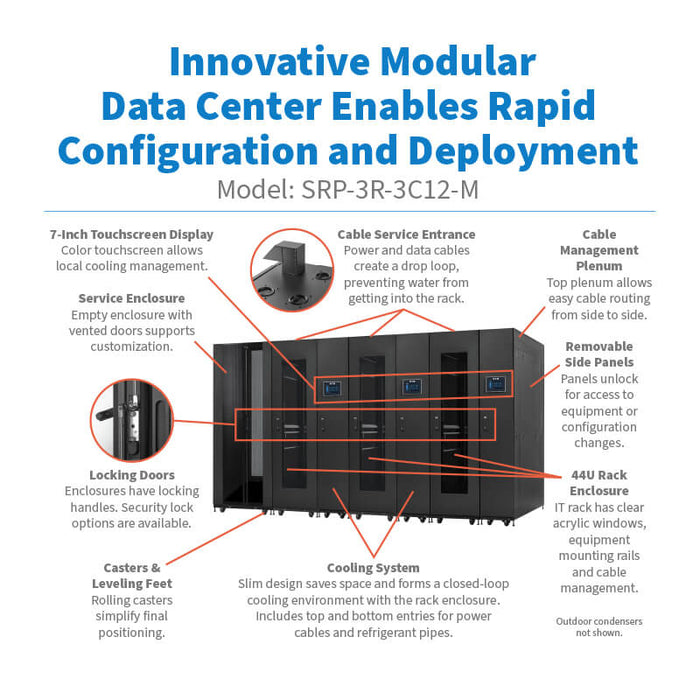

The Eaton SRP-3R-3C12-M is a fully integrated, self-cooling modular data center solution designed for rapid deployment in edge computing, AI, and industrial environments. This performance-optimized POD (Performance Optimized Data Center) includes three 44U IT rack enclosures, three 12kW in-row cooling units (SRCOOLDXRW12), and one customizable service enclosure.
Engineered for scalability, the SRP-3R-3C12-M delivers efficient closed-loop cooling, advanced equipment protection, and streamlined cabling. The system arrives pre-configured and ready for fast on-site deployment, with pre-installed casters for easy positioning. Each cooling unit offers remote and local monitoring via a 7-inch touchscreen and WEBCARDLXMINI.
The service enclosure can be tailored for UPS systems, PDU panels, or fire suppression equipment, making it a versatile infrastructure foundation for evolving needs. Ideal for harsh environments with its IP54 protection, the unit also complies with FCC Part 15 Class A and RoHS standards.
| Category | Details |
|---|---|
| Model Number | SRP-3R-3C12-M |
| Rack Units | 3 x 44U IT Rack Enclosures |
| Cooling Units | 3 x 12kW In-Row Cooling (SRCOOLDXRW12) with DX, R410A refrigerant |
| Service Enclosure | 1 x 800mm customizable enclosure |
| Cooling Capacity | 38.4 kW / 131,058 BTU |
| Airflow | 4,425 CFM |
| Input Voltage | 208V, 3-wire / 4-wire + Ground, 60 Hz |
| Display | 7-inch color touchscreen + WEBCARDLXMINI |
| Physical Dimensions | 95.07" H x 153.38" W x 64.88" D (241.48 x 389.59 x 164.80 cm) |
| Weight | 4957 lbs (2248.46 kg) |
| Protection Rating | IP54 |
| Noise Level | < 68 dBA |
| Operating Temp. | 64°F to 104°F (18°C to 40°C) |
| Warranty | 1-Year Cooling Unit / 5-Year Rack & Enclosure |
| Compliance | FCC Part 15 Class A, RoHS |
| Applications | Edge Computing, AI/ML, Manufacturing, Harsh Environments |
