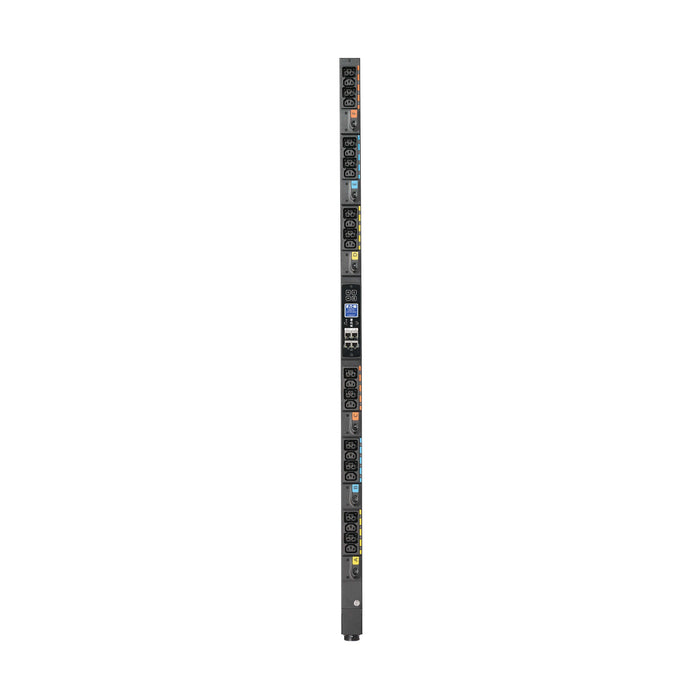

Eaton Universal-Input Managed Rack PDU G4, 208V & 415/240V, 24 Outlets, 0U Vertical
The Eaton EVMAGU23A-E is a powerful and flexible Universal-Input Managed PDU (UPDU) G4 designed to support a wide range of data center applications. Compatible with both single- and three-phase power at 208V and 415/240V, this PDU accommodates up to 23kVA output when paired with your choice of 17 removable input cables (sold separately).

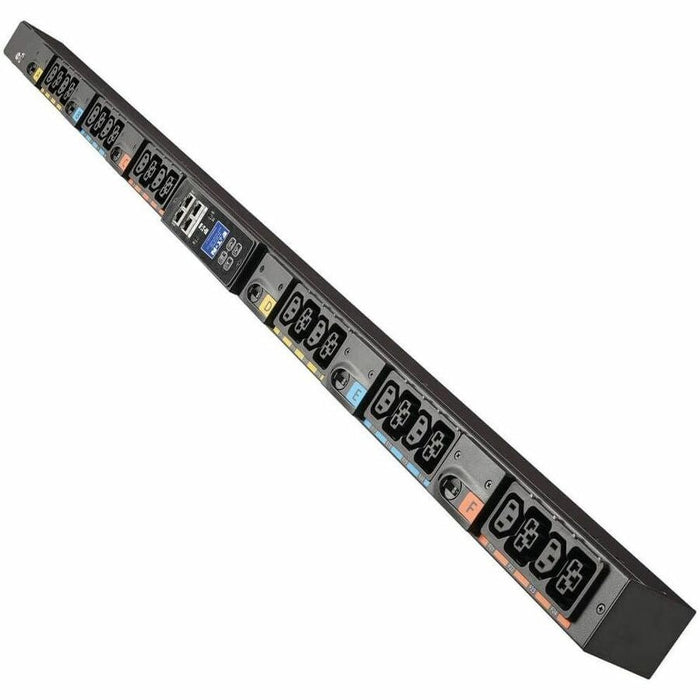

With 24 managed outlets (12 C13 and 12 universal C39), this 0U vertical PDU offers full remote management, outlet-level switching, and precise monitoring. An embedded hot-swappable Eaton Gigabit Network Module (GNM) ensures top-tier cybersecurity, remote diagnostics, and integration with Eaton Brightlayer software for automation and alerting.
Its compact vertical form factor with toolless mounting simplifies installation and saves valuable rack space, making it an ideal choice for scalable, future-proof power distribution in enterprise IT and edge environments.
| Feature | Details |
|---|---|
| Model Number | EVMAGU23A-E |

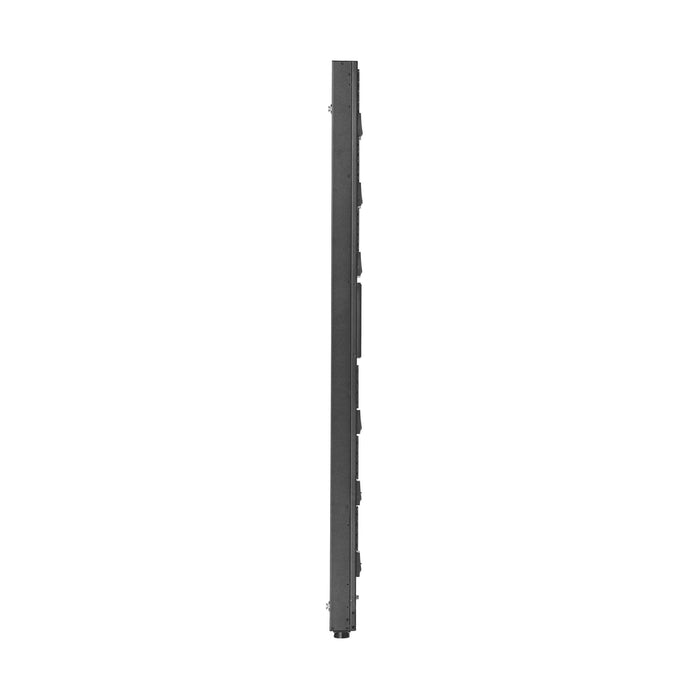

| Form Factor | 0U Vertical |
| Mounting | Toolless buttons, fits 32U+ racks |
| Input Voltage | 208V, 415/240V, 208/120V (Single/Three Phase) |
| Max Input Current | 63A (depends on cable/plug used) |

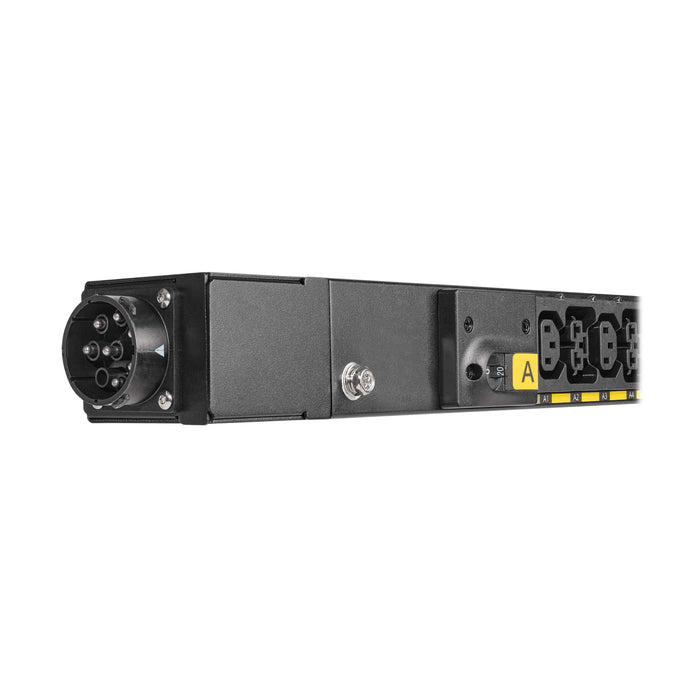

| Input Plug Type | Universal Input (Cable Sold Separately) |
| Output Capacity | Up to 23kW / 23kVA |
| Outlet Configuration | 12 x C13, 12 x Universal C39 |
| Circuit Protection | 6 x Low-profile 2-pole breakers (20A US / 16A EU) |
| Network Module | Embedded Gigabit Network Module G4 (GNM) |
| Management Features | Outlet-level switching, metering, alerts, remote management |
| Cybersecurity | Chain-of-trust encryption, zero-trust architecture, secure boot |
| Daisy-Chaining | Supports cascading up to 40 PDUs |
| Material | Lightweight aluminum |
| Dimensions (H x W x D) | 55.9 x 2.0 x 2.56 in (141.98 x 5.08 x 6.50 cm) |
| Weight | 11.2 lbs (5.08 kg) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Certifications | CE, FCC Part 15 Class A, cTUVus, IEC 62368-1, ICES |
| Warranty | 3-Year Limited Warranty |
