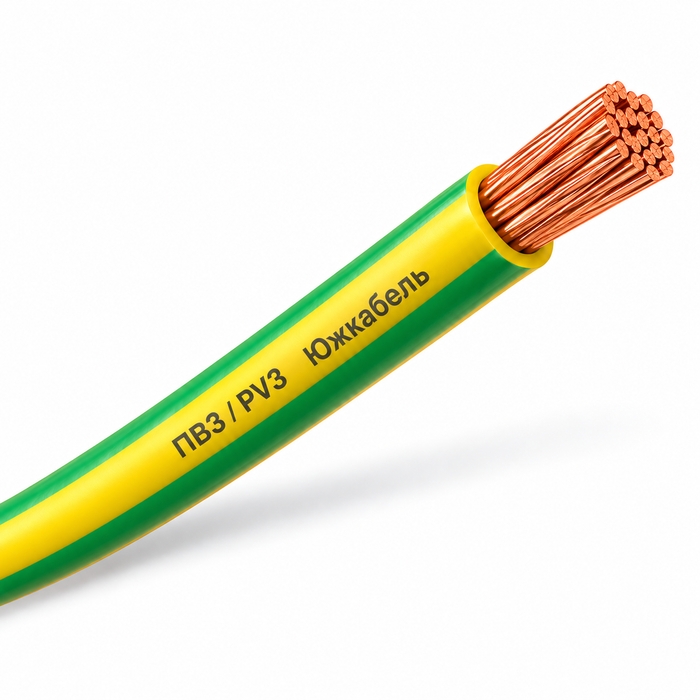

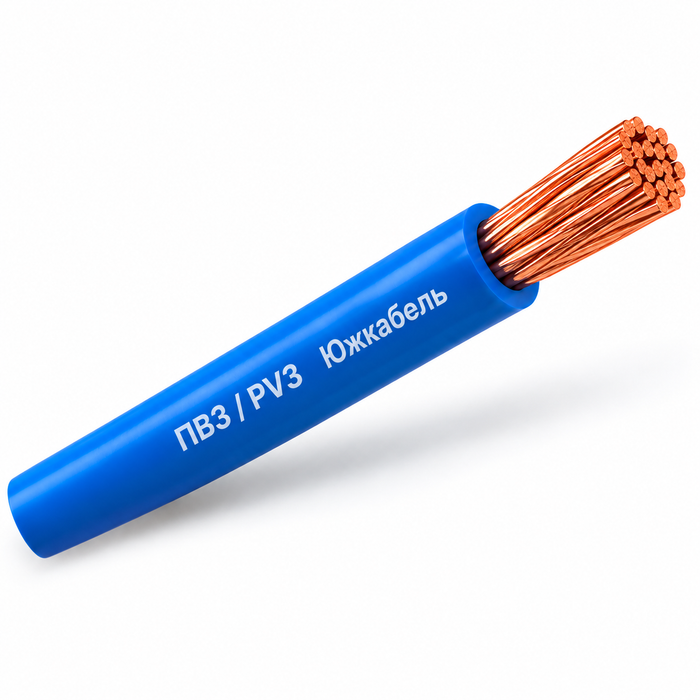

PV3 1×25
PV3 1×25 mm² — flexible copper installation wire
Single-core installation wire with a stranded copper conductor and PVC insulation. Intended for fixed wiring in lighting and power circuits and for connection of electrical equipment where bending during installation is required. These are PV3/PVC characteristics, not a halogen-free (HF) cable specification.
Technical specifications
| Cable mark | ПВ3 / PV3 |
|---|---|
| Conductors and cross-section | 1 × 25 mm² |
| Conductor material | Copper, stranded |
| Insulation | PVC (polyvinyl chloride) |
| Rated voltage | 0.45 kV; up to 450/750 V AC networks per manufacturer reference |
| Operating temperature | −50 to +50 °C (reference manufacturer series) |
| Conductor colour options | Blue; yellow-green |
| Manufacturer technical specification | ТУ У 31.3-00214534-056:2006 (Yuzhcable reference) |
Construction and selection
One insulated copper conductor; no separate cable sheath or metallic screen is specified for this wire type. Select section, conductor colour and installation method for the circuit. Blue and yellow-green are the options configured in this catalogue; actual stock, price and delivery time must be confirmed when requesting a quotation.
Technical reference: Yuzhcable — PV3 factory size range. Dimensions, tolerance, electrical ratings and specification for the actual delivered manufacturer and batch require confirmation against its passport; these factory reference figures are not a stock or supply guarantee.
Price on request
Stock, price and lead time are confirmed upon inquiry. Please specify quantity in metres.
