Vertiv Liebert APS 10kVA Modular UPS | Scalable to 15kVA N+1 | 120/208V Split Phase | Rack/Tower Convertible
The Vertiv Liebert APS 10kVA Modular UPS (AS5B0NCVGNNXLKB) is a scalable and redundant power solution designed to protect mission-critical systems. With online double conversion technology, it ensures uninterrupted power delivery even under fluctuating utility conditions.

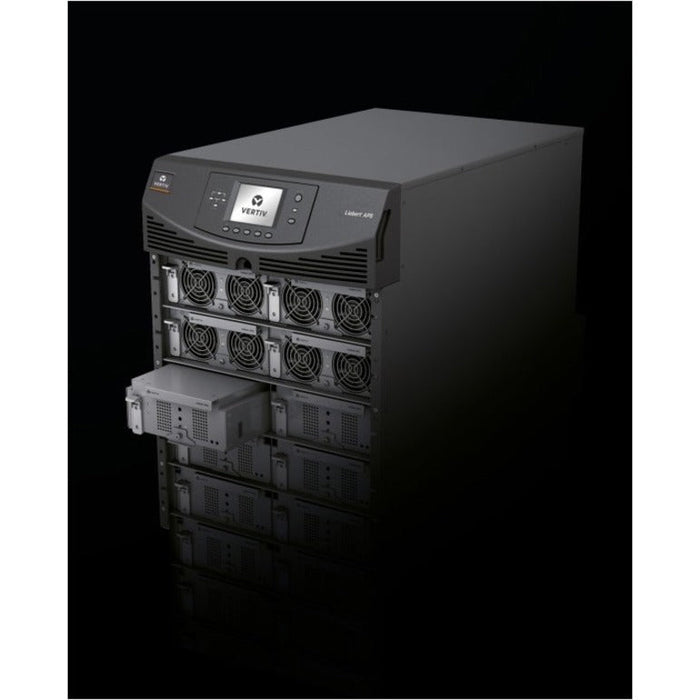

Ideal for room or row-based deployments, it delivers 5 minutes full-load runtime, and its modular FlexPower assemblies and battery units are hot-swappable—maximizing uptime and adaptability. Factory-installed SNMP/Webcard (IS-UNITY-DP) provides free access to Vertiv Power Insight software and environmental monitoring features.
This UPS is scalable up to 15kVA N+1, offering investment protection with “pay as you grow” flexibility. With a high efficiency of up to 92%, it reduces energy costs and total cost of ownership.
| Specification | Details |
|---|---|
| Brand | Vertiv |
| Series | Liebert APS |
| Model Number | AS5B0NCVGNNXLKB |
| Form Factor | Rack/Tower Convertible |
| Power Capacity | 10kVA (Scalable to 15kVA N+1) |
| Input Voltage | 120V AC – 280V AC |
| Output Voltage | 100/120V AC, 200/240V AC (Split Phase) |
| Phase | Single Phase |
| Runtime @ Full Load | 5 Minutes |
| Runtime @ Half Load | 15 Minutes |
| Efficiency | Up to 92% |
| Battery Type | Valve-regulated, Lead Acid |
| Hot Swappable Modules | Yes (Power & Battery Modules) |
| Remote Monitoring | SNMP/Webcard (IS-UNITY-DP), USB, EPO |
| LCD Display | Yes |
| Software Included | Trellis™ Power Insight |
| Environmental Monitoring | Supported via Unity Card |
| Altitude Support | Up to 3000m @ 25°C (77°F) |
| Relative Humidity Range | 0–95% (Non-Condensing) |
| Dimensions (H x W x D) | 42" x 17" x 32" |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 1 lbs. |
| Warranty | 2 Years Limited |
