Vertiv Liebert APS 20kVA N+1 Modular UPS – 120/208V Split Phase | 10-Min Runtime | Rack/Tower
Ensure critical uptime with the Vertiv Liebert APS 20kVA N+1 Modular UPS (AS6D0NCJGNNXLKB), a high-performance online double conversion system built for enterprise IT environments. Designed for scalability, this modular UPS supports up to 20kVA of capacity with N+1 redundancy, providing up to 10 minutes of full-load runtime.

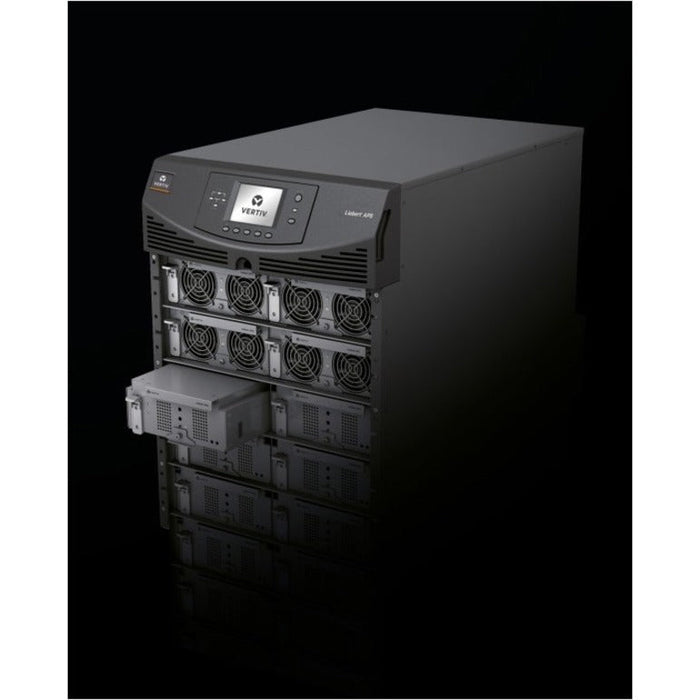

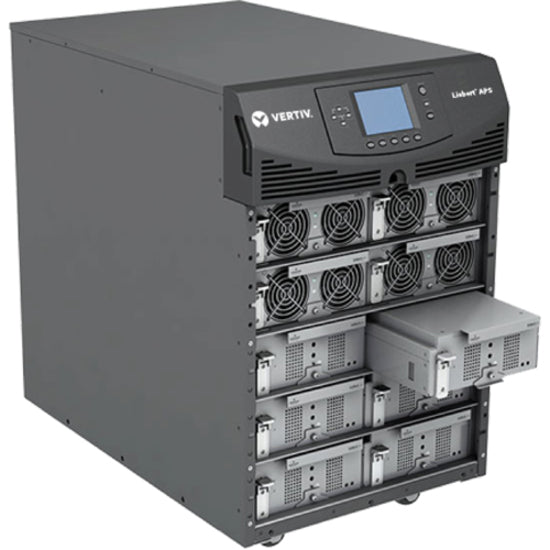

Its hot-swappable FlexPower™ modules simplify maintenance and expansion without service disruption. The factory-installed Liebert IntelliSlot Unity Card enables remote monitoring, Power Insight software integration, and environmental sensor compatibility—making it ideal for dynamic data centers.
Additional benefits include 92% energy efficiency, transformer-based isolation, auto-shutdown software, and support for 208V and 120V output.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Liebert |
| Product Line | APS |
| Model Number | AS6D0NCJGNNXLKB |
| Product Type | Online Double Conversion UPS |
| Form Factor | Rack/Tower Convertible |
| Scalability | 20kVA Max, N+1 Redundancy |
| Full Load Runtime | 10 Minutes |
| Half Load Runtime | 27 Minutes |
| Input Voltage Range | 120–280V AC |
| Input Voltage | 120/230V AC |
| Output Voltage | 208V and 120V AC (Split Phase) |
| Power Capacity | 20 kVA / 18 kW |
| Phase | Single Phase |
| Frequency (Input/Output) | 70 Hz / 60 Hz |
| Plug Type | Hardwire 4-wire (L-L-N-G) |
| Remote Monitoring | Liebert IntelliSlot Unity Card (IS-UNITY-DP) – Included |
| Interface Ports | USB (HID), Serial, EPO |
| Status Display | LCD Display |
| Environmental Monitoring | Temp, Humidity, Leak Sensors |
| Max Operating Temp | 104°F (40°C) |
| Humidity Tolerance | 0–95% (non-condensing) |
| Height x Width x Depth | 49" x 17" x 34" |
| Weight (Shipping) | 1 lb (as listed) |
| Warranty | 2-Year Limited |
| Software | Trellis™ Power Insight (Auto Shutdown) |
| Environmentally Friendly | Yes |
