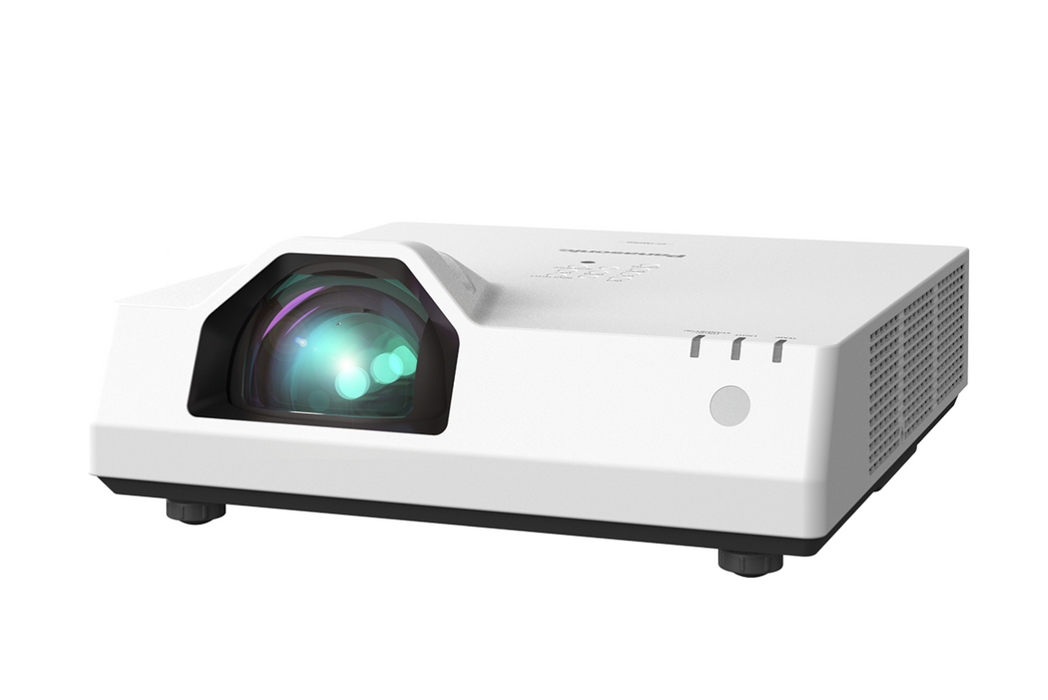

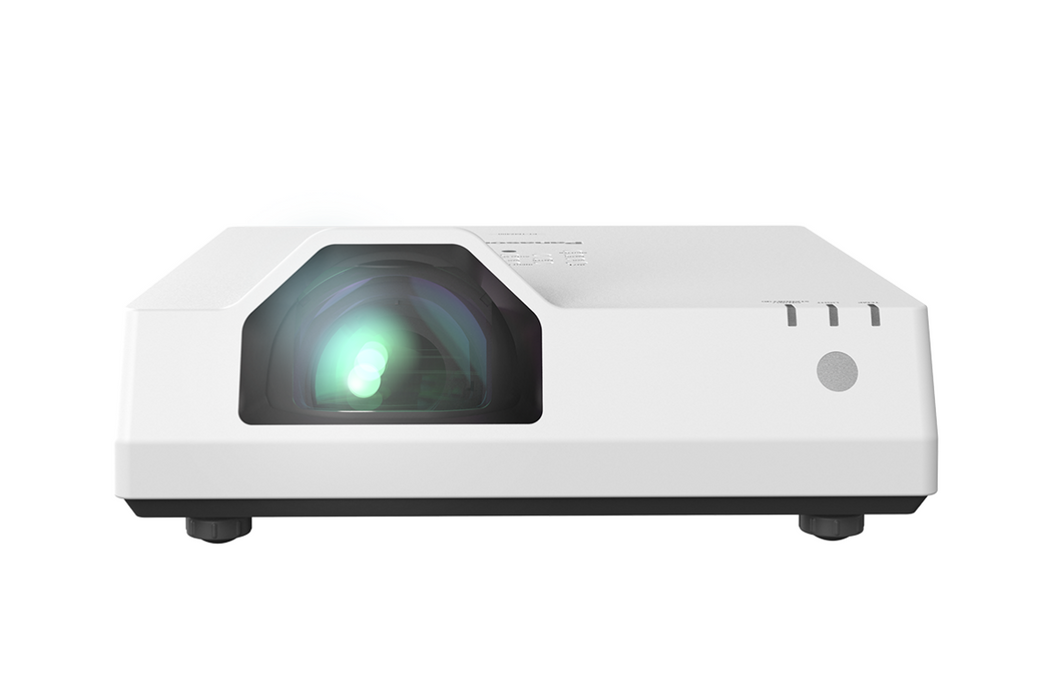

Panasonic PT-TMW380 3LCD WXGA Short-Throw Laser Projector
by Panasonic
| Specification | Description |
|---|---|
| Projector type | LCD projectors |
| LCD panel | Panel size | 16.3 mm (0.64 in) diagonal (16:10 aspect ratio) |
| LCD Panel | Display System | Transparent LCD panel (x 3, R/G/B) |
| LCD panel | Drive method | Active matrix |
| LCD panel | Pixels | 1,024,000 (1280 x 800) pixels |
| Light source | Laser diodes |
| Light Output*1 *2 | 3,800 lm |
| Time until light output declines to 50 %*3 | 20,000 hours (NORMAL/QUIET)/24,000 hours (ECO) |
| Resolution | WXGA (1280 x 800 pixels) |
| Contrast Ratio*1 | 3,000,000:1 (Full On/Full Off) (When [PICTURE MODE] is set to [DYNAMIC] and [DYNAMIC CONTRAST] is set to [1].) |
| Screen Size (Diagonal) | 1.27–2.54 m (50–100 in), 16:10 aspect ratio |
| Center-to-corner zone ratio*1 | 85 % |
| LENS | Fixed zoom, manual focus lens, F = 1.8, f = 6.08 mm,throw ratio: 0.47:1 (Projection distance: 0.83 m [2.72 ft] for 80-inch image) |
| Digital Zoom Extender *4 | Throw Ratio 0.47–0.59:15 (Corresponding value) (TBD) |
| Keystone correction range | Vertical: ±15 ° (Auto, Manual), Horizontal: ±15 ° (Manual) |
| Installation | Ceiling/floor, front/rear, free 360-degree installation |

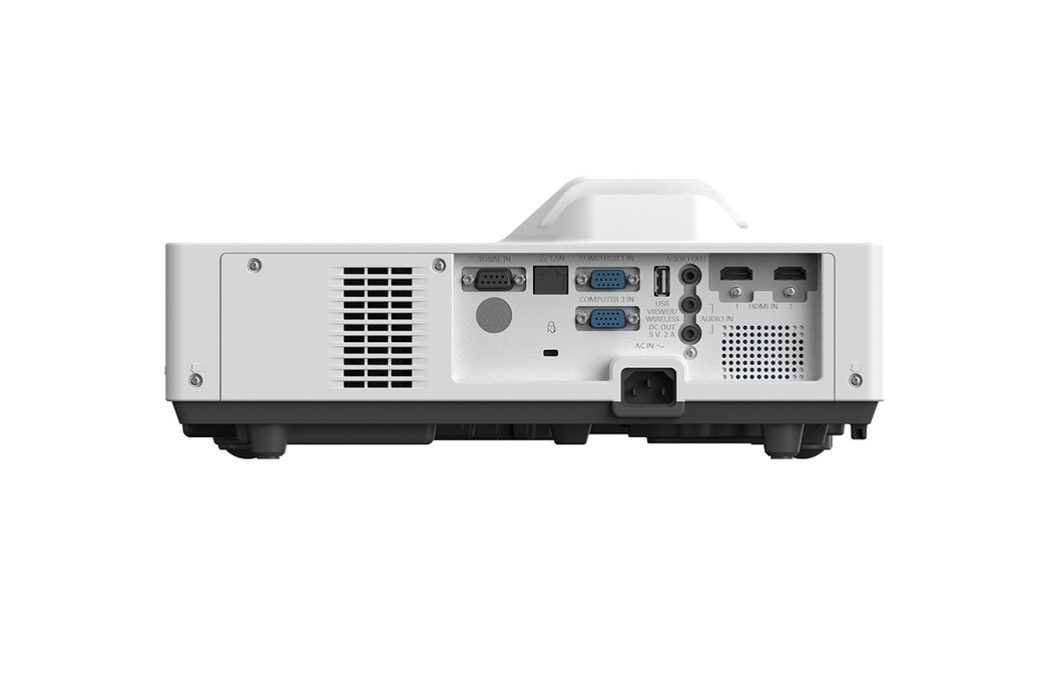

| Terminals | HDMI 1/2 IN | HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p6 signal input), CEC supported*7 |
| Terminals | COMPUTER 1 IN | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | Computer 2 In | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
| Terminals | AUDIO 1/2 IN | M3 stereo mini-jack x 2 |
| Terminals | VARIABLE AUDIO OUT | M3 stereo mini-jack x 1 |
| Terminals | SERIAL IN | D-sub 9-pin (female) x 1 for computer control (RS-232C compliant) |
| Terminals | LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ [Class 2] |
| Terminals | USB(VIEWER/WIRELESS/DC OUT) | USB connector (Type A) x 1 for Memory Viewer function, optional AJ-WM50 Series Wireless Module, power supply (DC 5 V, maximum 2 A*8) |
| Power supply | AC 100 V–240 V, 50/60 Hz |
| Power Consumption*9 | Maximum power consumption | 280 W (TBD) |
| Power Consumption*9 | On-mode power consumption (Light Power) | [NORMAL] 250 W (TBD), [ECO] 200 W (TBD), [QUIET] 195 W (TBD) |
| Built in speaker | 10 W monaural |
| Cabinet materials | Molded plastic |
| Filter*10 | Included (Estimated maintenance time: approx. 15,000 hours) (TBD) |
| Operation noise*1 | 36 dB (NORMAL/ECO) (TBD), 26 dB (QUIET) (TBD) |
| Dimensions (W x H x D) | 349 mm x 88 mm x 370 mm (13 3/4˝ x 3 15/32˝ x 14 9/16˝ ) (not including protruding parts) (TBD) |
| Weight with supplied lens*11 | Approx. 5.5 kg (12.13 lbs) (TBD) |
| Operating environment | Operating temperature: 0–45 °C (32–113 °F)*12, Operating humidity: 20–80 % (no condensation) |
| Applicable software | Multi Monitoring & Control Software, Logo Transfer Software, Presenter Light Software for Windows®*13, Wireless Projector App for iOS/Android™*14 |
