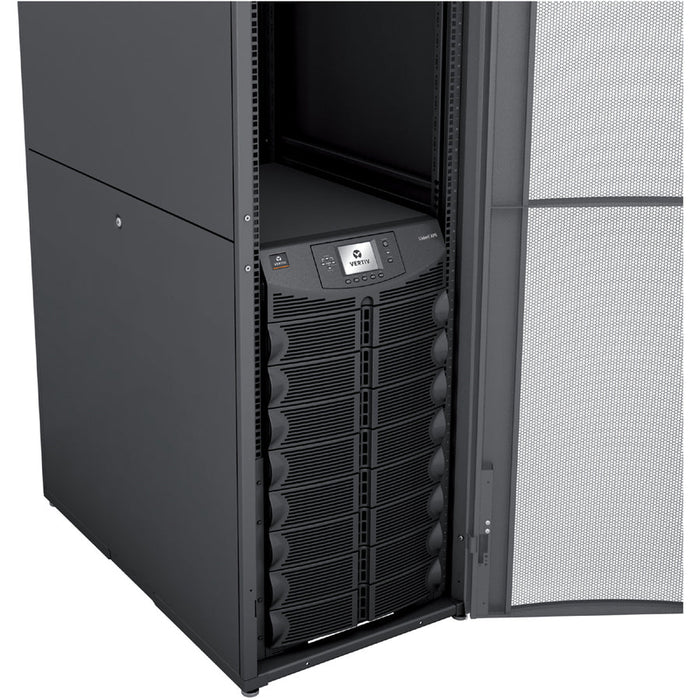

Vertiv Liebert APS 10kVA Modular UPS, Scalable to 15kVA N+1 | 120/208V Split Phase | 16 Min Runtime
The Vertiv Liebert APS 10kVA Modular UPS (AS5B0NCXGNNXLKB) is a high-performance online double conversion UPS engineered for mission-critical environments. Designed with scalability in mind, it supports growth from 10kVA to 15kVA N+1, delivering unmatched power availability and flexibility.
This split-phase UPS offers up to 16 minutes of full-load runtime, making it ideal for room or row-based applications. Featuring factory-installed SNMP/Webcard (IS-UNITY-DP) and Trellis™ Power Insight software, it ensures intelligent power management and remote monitoring.

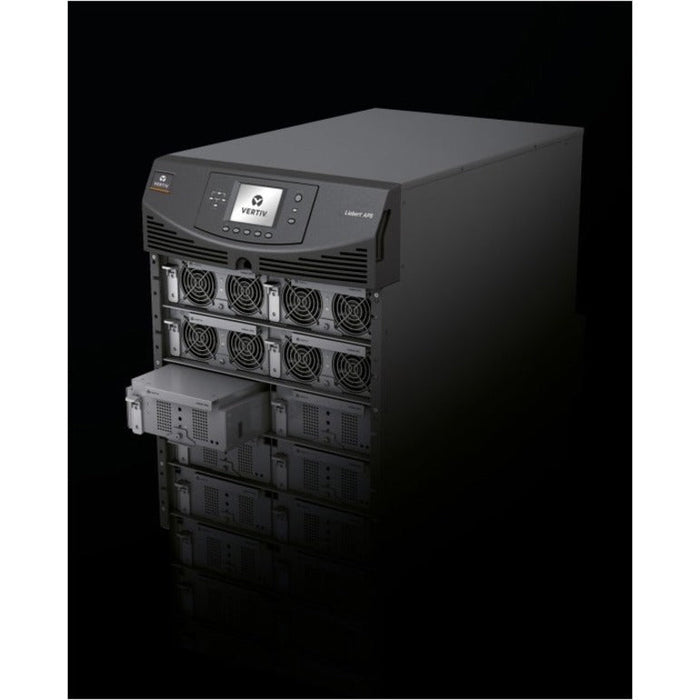

With a high efficiency rating of up to 92%, hot-swappable FlexPower and battery modules, and dual 208V and 120VAC output, this system reduces total cost of ownership while enabling seamless maintenance. Ideal for supporting servers, critical equipment, and facility infrastructure.
| Specification | Details |
|---|---|
| Model Number | AS5B0NCXGNNXLKB |
| Brand | Vertiv Liebert |
| Product Type | Online Double Conversion Modular UPS |
| Scalability | 10kVA to 15kVA N+1 |
| Output Voltage | 208V / 120V Split Phase |
| Runtime (Full Load) | Up to 16 minutes |
| Runtime (Half Load) | Up to 41 minutes |
| Hot Swappable Modules | Yes (FlexPower & Battery) |
| Form Factor | Rack/Tower Convertible |
| Dimensions (HxWxD) | 42" x 17" x 32" |
| Plug Type | Hard Wire 4-wire (L-L-N-G) |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Battery Capacity | 36W @ 15-min rate to 1.67V per cell @ 25°C |
| Charge Current (Max) | 1.8A (internal), 10A (external charger module) |
| Nominal DC Voltage | 144VDC |
| Environmental Monitoring | Leak, Temperature, and Humidity Sensors |
| Interfaces | LCD Display, USB, Serial, EPO |
| Remote Management | SNMP/Webcard (IS-UNITY-DP, factory-installed), Free Power Insight Software |
| Efficiency | Up to 92% |
| Certifications | UL 1778 4th Ed, CSA 22.2, FCC Class A, IEC/EN/AS 62040-1/-2, CISPR22 |
| Warranty | 2 Years |
| Shipping Weight | 1 lb |
| Condition | New and Factory Fresh |
