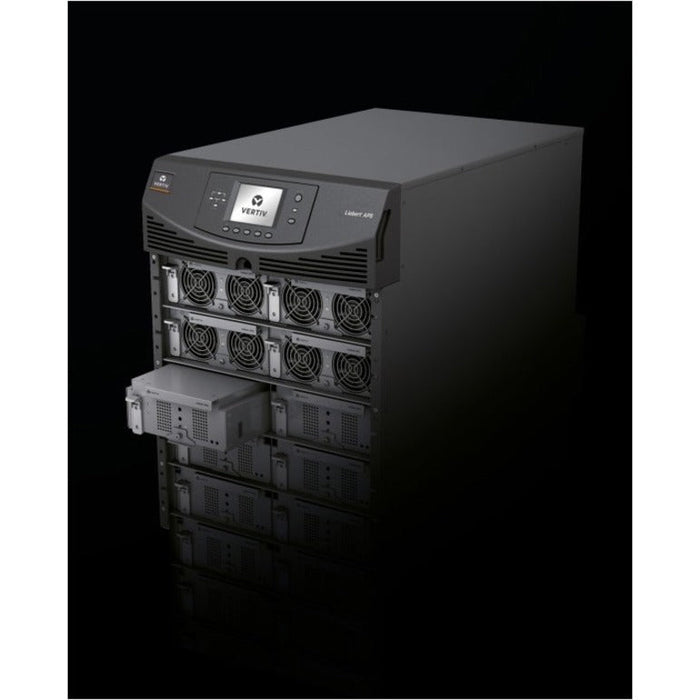

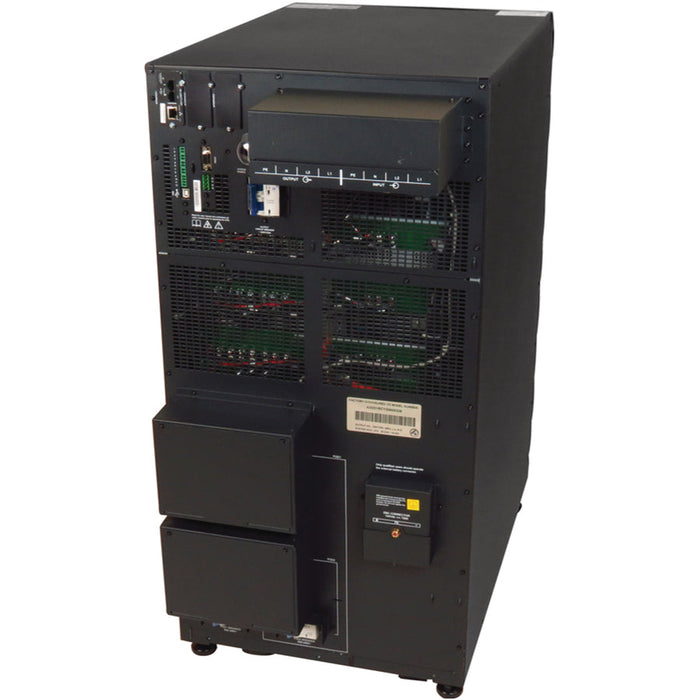

Vertiv Liebert APS 10kVA UPS, Scalable to 20kVA N+1 | 120/208V Split Phase | 10 Min Runtime

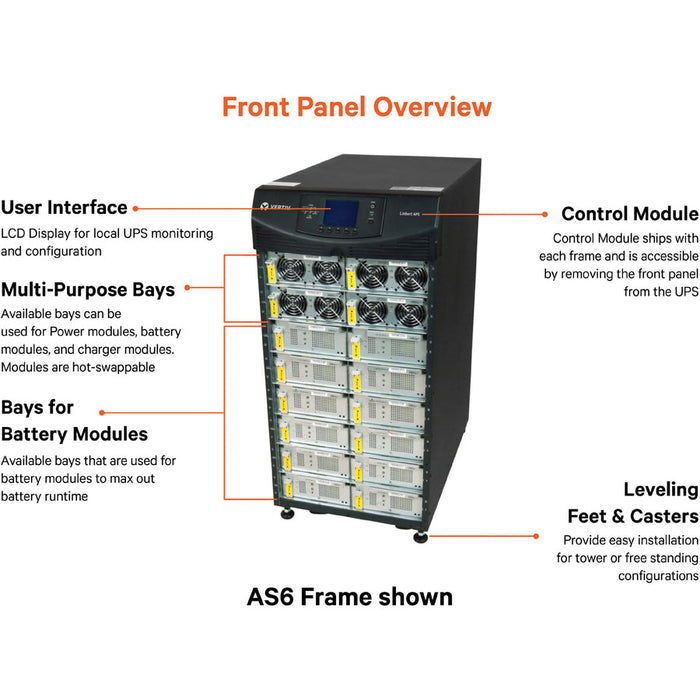

The Vertiv Liebert APS 10kVA Scalable to 20kVA N+1 120/208V Modular UPS (AS6B0NCWGNNXLKB) is a flexible and intelligent power protection solution designed for mission-critical systems. Featuring an online double conversion design, this UPS delivers 10 minutes of runtime at full load, with hot-swappable FlexPower and battery modules to ensure uninterrupted power even during maintenance.
Built for growth, its "pay-as-you-grow" scalability allows users to expand capacity up to 20kVA N+1 without disrupting operations. It comes factory-equipped with an SNMP/Webcard (IS-UNITY-DP) for environmental monitoring and remote management via free Vertiv Power Insight software.
With up to 92% energy efficiency, intelligent battery management, and integrated sensors for leak, temperature, and humidity, it’s an ideal UPS for server rooms, data centers, and critical IT infrastructure.
| Specification | Details |
|---|---|
| Brand Name | Vertiv Liebert |
| Part Number | AS6B0NCWGNNXLKB |
| UPS Type | Online Double Conversion |
| Capacity | 10kVA (Scalable to 20kVA N+1) |
| Voltage (Input) | 120V – 280V AC |
| Voltage (Output) | 208/120VAC |
| Frequency | Input: 70 Hz / Output: 60 Hz |
| Full Load Runtime | 10 Minutes |
| Half Load Runtime | 27 Minutes |

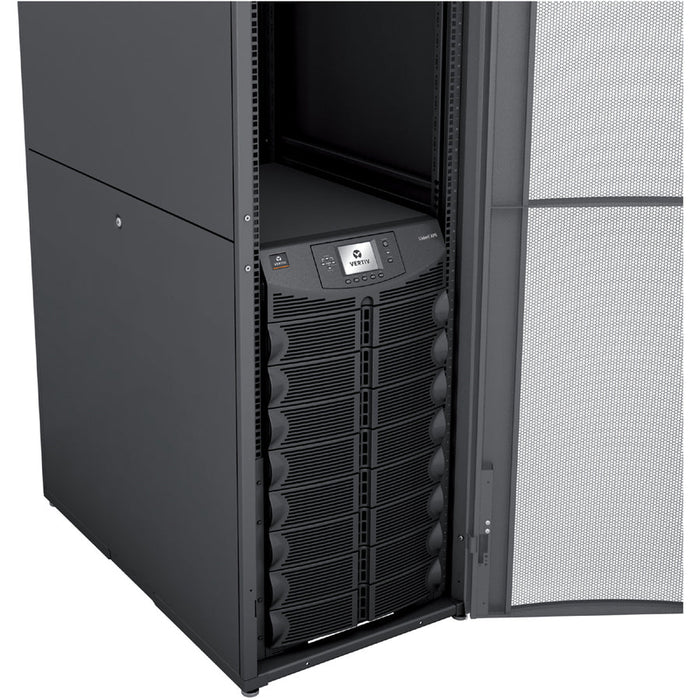

| Form Factor | Rack/Tower Convertible |
| Plug Type | Hard Wire 4-wire (L-L-N-G) |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Capacity | 36W @ 15min to 1.67V/cell @ 25°C |
| Battery Voltage | 144 VDC |
| Charge Current | Internal: 1.8A / Module: 10A |
| Indicators | LCD Display |
| Ports | USB (HID Compliant), Serial, EPO |
| Environmental Monitoring | Leak, Temperature, Humidity Sensors |
| Height x Width x Depth | 49” x 17” x 34” |
| Certifications | UL 1778 4th Ed, CSA 22.2 No. 107.1, FCC, RoHS, REACH, IEC/EN/AS 62040 |
| Software Included | Trellis™ Power Insight (Shutdown & Monitoring) |
| Remote Management | Factory-installed SNMP/Webcard (IS-UNITY-DP) |
| Warranty | 2-Year Limited |
| Shipping Weight | 1 lb (as listed, likely placeholder) |
