Vertiv Liebert APS 15kVA Modular UPS | Scalable to 15kVA N+1 | 208V Single Phase

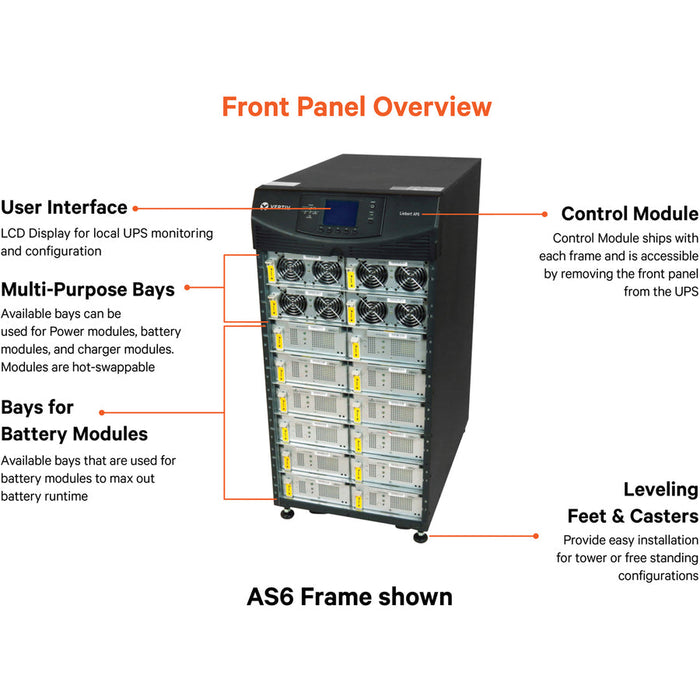

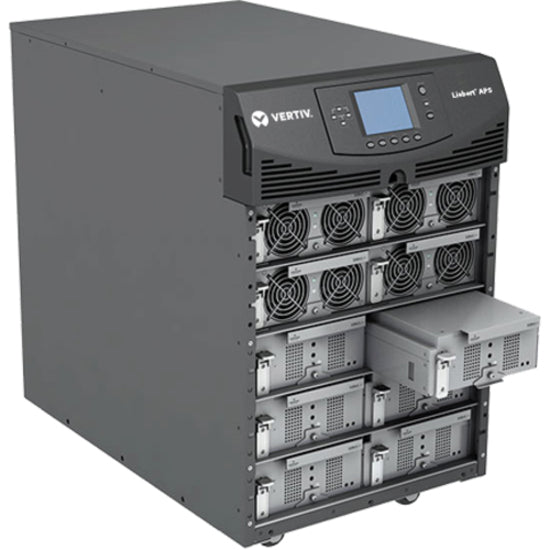

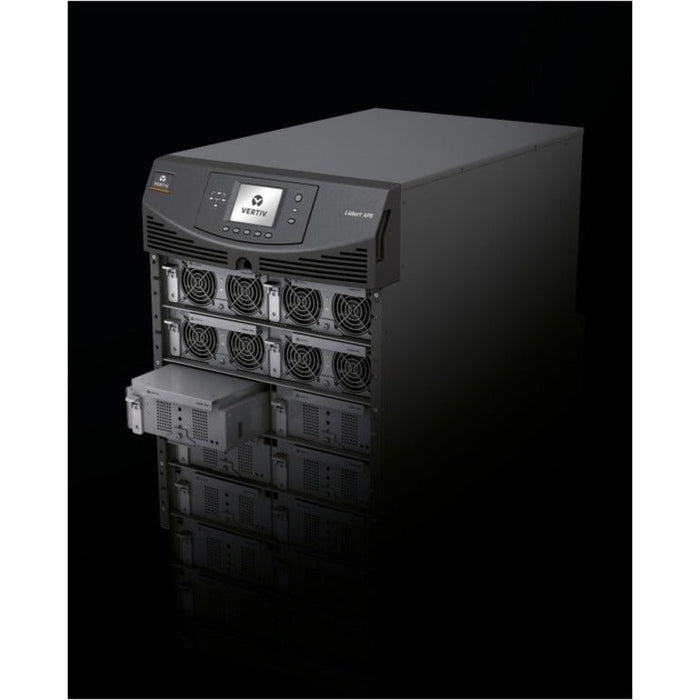

The Vertiv Liebert APS 15kVA Modular UPS (AS3C0NCXGNNXLKB) is a highly reliable, online double conversion uninterruptible power supply built for critical room or row-based applications. Designed with a scalable and modular architecture, this UPS supports N+1 redundancy and features hot-swappable power and battery modules, enabling easy expansion and maintenance without power disruption.
With up to 8 minutes of full-load runtime, intelligent battery management, and factory-installed SNMP/Webcard (Liebert IntelliSlot Unity Card), the APS UPS enables robust remote monitoring and control. Supporting both rack and tower configurations, it delivers high efficiency (up to 92%), integrated step-down transformer for 208V and 120VAC outputs, and advanced environmental sensor integration.
Perfect for IT infrastructure, business continuity, and mission-critical environments.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Liebert |
| Product Line | APS |
| Model Number | AS3C0NCXGNNXLKB |
| Topology | Online Double Conversion |

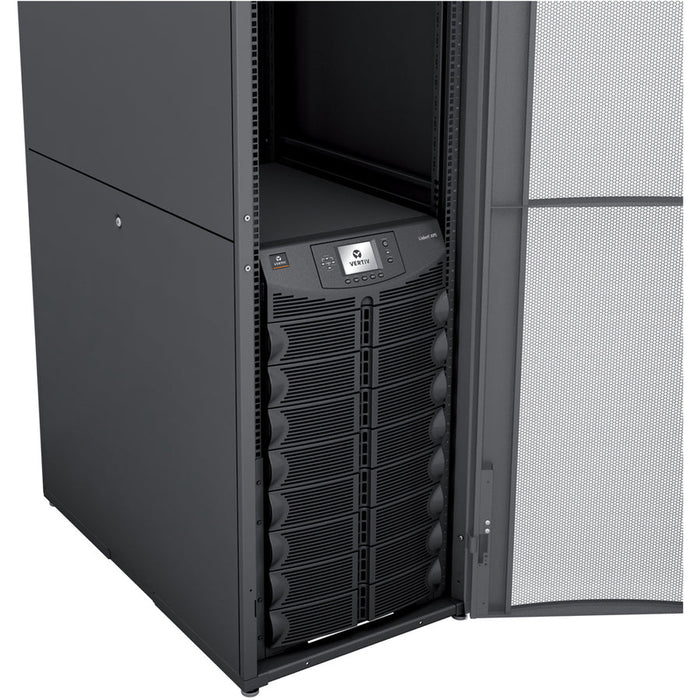

| Form Factor | Rack/Tower |
| Load Capacity | 15kVA / 13.5kW N+1 |
| Input Voltage Range | 120V - 280V AC |
| Output Voltage | 100V - 240V AC |
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Backup Time (Full Load) | 8 Minutes |
| Backup Time (Half Load) | 22 Minutes |
| Battery Voltage | 144V DC |
| Battery Chemistry | Lead Acid, Valve-Regulated |
| Plug/Connector Type | Hard Wire 3-wire (L-L-G) |
| Interfaces | USB, Serial Port, EPO Port |
| Environmental Sensors Supported | Leak, Temperature, Humidity |
| Max Operating Temp | 104°F (40°C) |
| Thermal Dissipation | 1233.24 W |
| Dimensions (H x W x D) | 27" x 17" x 32" |
| Weight (Shipping) | 1 lb (as listed) |
| Certifications | UL 1778, CSA 22.2, IEC 62040-1/-2, FCC Part 15 |
| Software Included | Trellis™ Power Insight |
| Warranty | 2-Year Limited Warranty |
