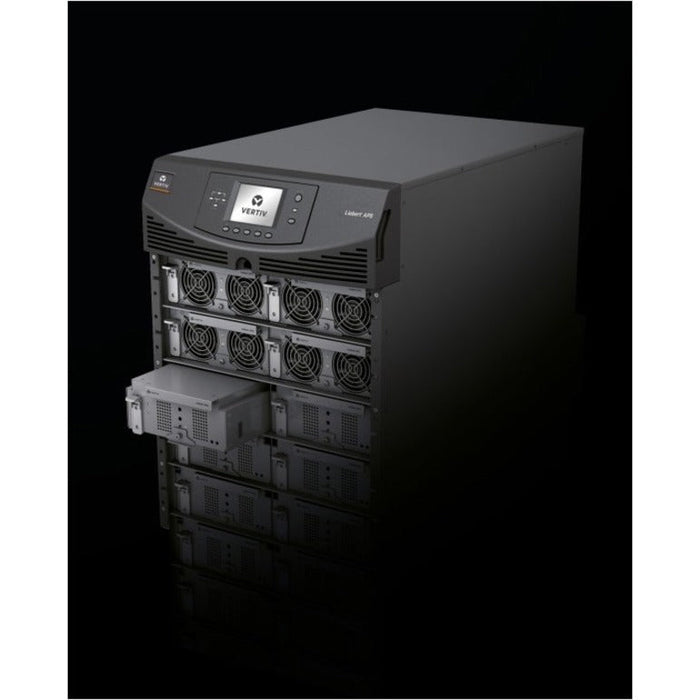

Vertiv Liebert APS UPS - 5kVA Scalable to 15kVA N+1 | 208V Single Phase Modular
The Vertiv Liebert APS AS3 UPS (AS3A0NCUGNNXLKB) is a modular, online double-conversion uninterruptible power supply system designed for dynamic, room-based, or row-based applications. Offering a 5kVA/4.5kW capacity, this system is scalable up to 15kVA N+1, delivering redundancy, flexibility, and unmatched reliability. The factory-installed SNMP/Webcard enables remote management through Vertiv’s free Power Insight software, while intelligent battery modules support hot-swappable installation for zero-downtime servicing.
Featuring a 5-minute full-load runtime, pure sine wave output, and support for both 208V and 120VAC output via internal step-down transformer, this UPS is perfect for mission-critical environments. Built with sustainability in mind, it operates at up to 92% efficiency, reducing energy costs and total cost of ownership (TCO).
| Category | Details |
|---|---|
| Brand | Vertiv Liebert |
| Series / Model | APS AS3 / AS3A0NCUGNNXLKB |
| Type | Double Conversion Online Modular UPS |
| Scalability | 5kVA to 15kVA N+1 |
| Output Capacity | 5000 VA / 4500 W |
| Output Voltage | 208V and 120VAC (via internal transformer) |
| Input Voltage Range | 120 – 280 VAC |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Waveform | Pure Sine Wave |
| Runtime (Full Load) | 5 Minutes |
| Runtime (Half Load) | 14 Minutes |
| Hot-Swappable Modules | Yes |
| Battery Chemistry | Lead Acid, Valve-Regulated |
| Interfaces | USB, Serial Port, EPO |
| Remote Monitoring | Factory-installed SNMP/Webcard (IS-UNITY-DP) |
| Environmental Sensors | Leak, Temperature, Humidity |
| Display | LCD |
| Form Factor | Rack/Tower |
| Dimensions (H x W x D) | 27" x 17" x 32" |
| Weight | 28.3 lbs |
| Certifications | UL 1778, CSA, FCC Part 15, NOM, RoHS, WEEE, REACH |
| Software Included | Power Insight 2.2 |
| Warranty | 5 Years |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 1 lb |
| Country of Origin | China |
| Environmentally Friendly | Yes |
