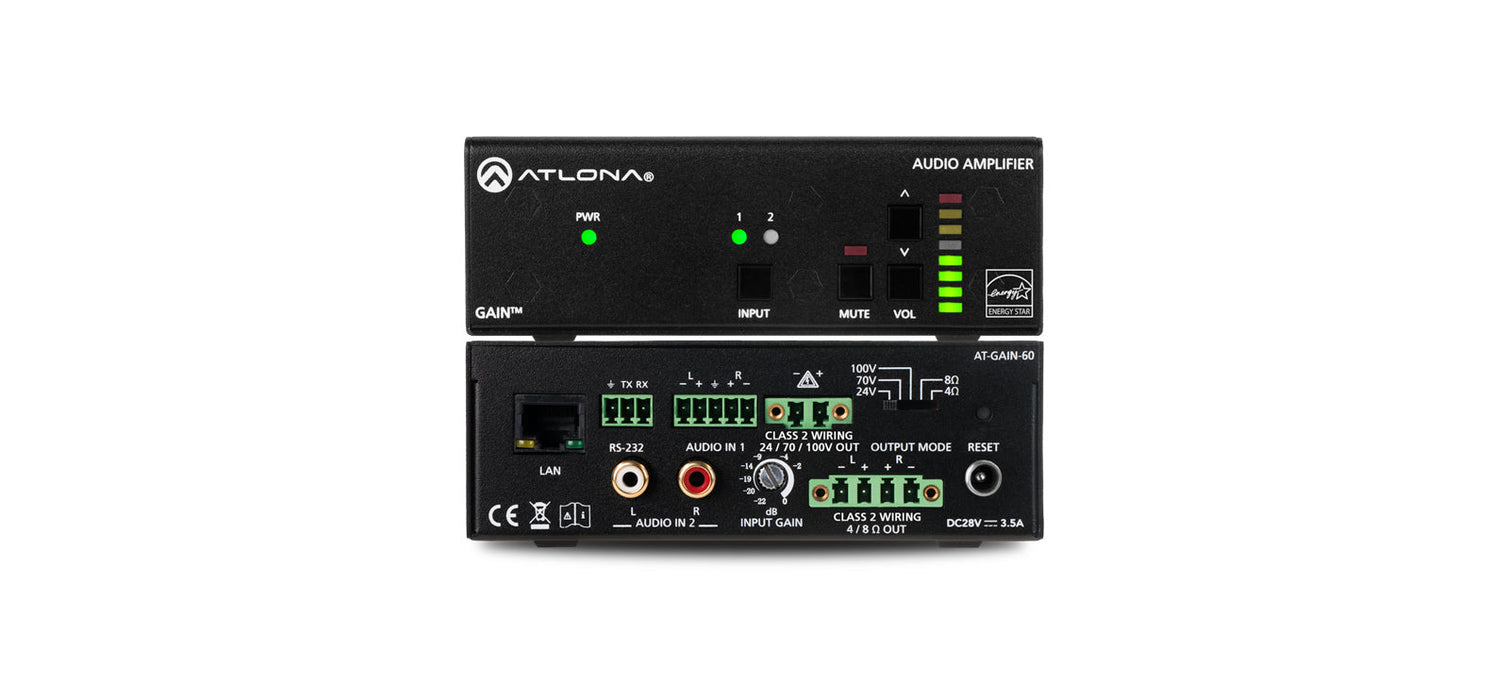

Atlona AT-GAIN-60 | Stereo / Mono Power Amplifier – 60 Watts

• 2 x 30 watts @ 4 or 8 ohms
• 1 x 60 watts @ 24, 70, or 100 volts
• Selectable balanced and unbalanced audio inputs
• ENERGY STAR^® qualified
• Convection cooled – no need for fans
• UL 2043 plenum rated

The Atlona Gain™ 60 (AT-GAIN-60) is a compact power amplifier designed for low or high impedance applications. A mode selector switch allows the Gain 60 to deliver two channels of 30 watts each into 4 or 8 ohms, or a single channel of 60 watts at 24, 70, or 100 volts. This Class D amplifier is energy efficient and ENERGY STAR qualified, and is also convection cooled without the need for fans. Additionally, the Gain 60 is UL 2043 plenum rated, allowing convenient yet discreet installation in a plenum airspace above a drop ceiling. Balanced and unbalanced inputs are provided for system design versatility. The Gain 60 is controllable via TCP/IP or RS-232, and can be integrated with Atlona AV switchers and OmniStream™ AV systems for a wide variety of sound reinforcement applications.

Documentation

	Datasheet
	Installation Guide
	Manual
	API

Declaration of Conformity

	AT-GAIN-60
	EC AT-GAIN-60

CAD File

AT-GAIN-60
