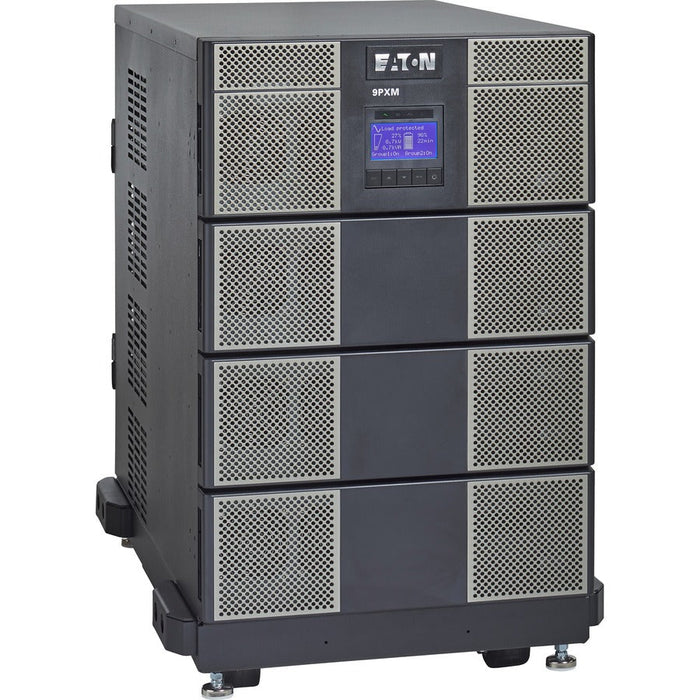

Eaton 9PXM8S4K-PD UPS, 4 kVA Scalable to 16 kVA, 208-240V, Rack/Tower, 14U
by Eaton
The Eaton 9PXM8S4K-PD is a highly scalable, online double-conversion UPS offering 4 kVA capacity, expandable up to 16 kVA. Designed for IT and enterprise environments, it features a hardwired input and diverse output options including (4) 5-20R and (2) L6-30R receptacles. Housed in a 14U convertible Rack/Tower form factor, this model delivers maximum flexibility, high efficiency, and robust battery management with hot-swappable modules and ABM technology. The unit supports intelligent network monitoring with optional communication cards and comes backed by a 2-year factory warranty.
| Category | Details |
|---|---|
| Model | Eaton 9PXM8S4K-PD |
| UPS Topology | Online/Double-conversion |
| VA / Watt Rating | 4000 VA / 3600 W |
| Power Factor | 0.9 |
| Scalability | Up to 16 kVA |
| Input Connection | Hardwired |
| Input Voltage | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Input Frequency | 50–70 Hz (Nominal 60 Hz) |
| Input Power Factor | >0.99 typical |
| Output Connections | (4) 5-20R, (2) L6-30R |
| Output Voltage | 120/208V |
| Output Waveform | True Sine Wave |
| Bypass | Internal |
| Form Factor | Rack/Tower Convertible (14U) |
| Dimensions (in) | 34.5 (D) x 17.5 (W) x 25 (H) |
| Weight | 229 lb |
| Battery Type | Hot-swappable internal batteries, EBM-compatible |
| Battery Management | ABM technology (extends service life by 50%) |
| Expansion Slots | (2) Mini-Slot ports (Gigabit Network, Modbus, or Relay cards optional) |
| Software Compatibility | Eaton Intelligent Power Software Suite |
| Environment | 0–40°C; 5–95% RH non-condensing |
| Color | Black/Silver |
| Certifications | cULus, TAA, FCC, ICES-003, IEC 62040-1/-2, 60950, CE |
| Warranty | 2-Year Standard (Extended service plans available) |
