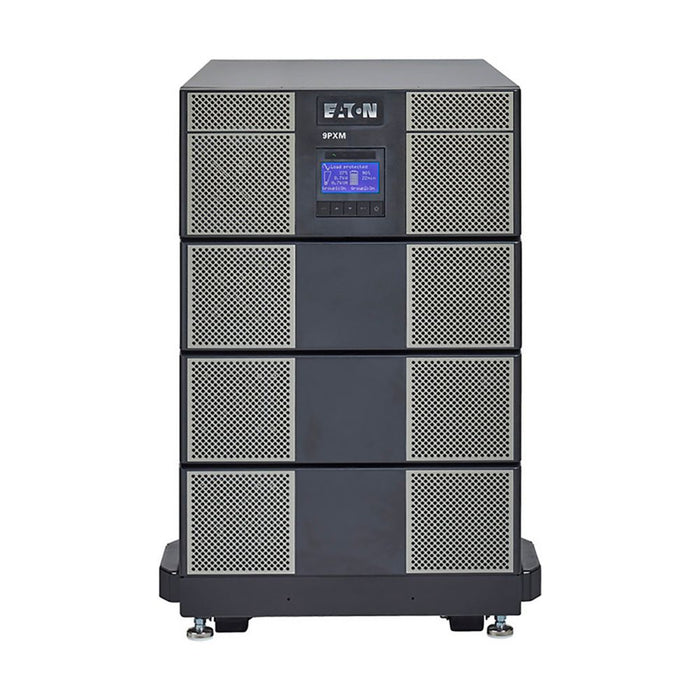

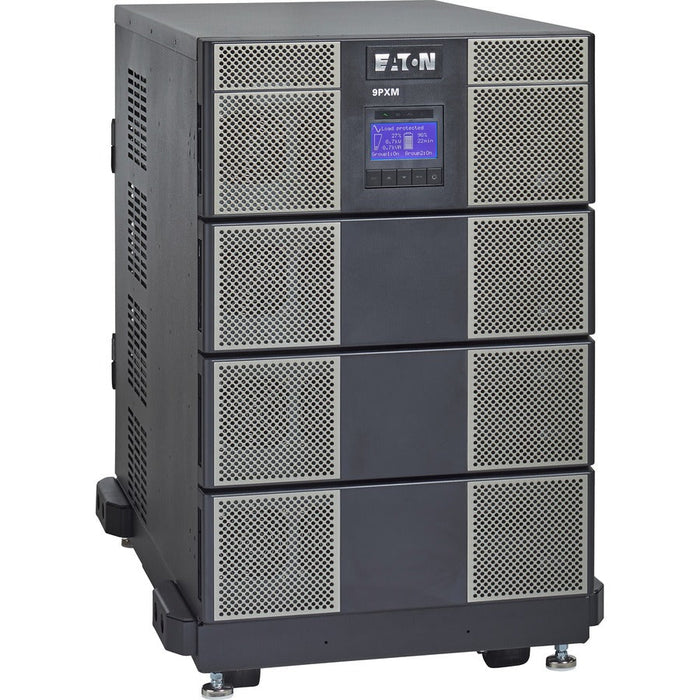

Eaton 9PXM8S4K UPS, 4 kVA to 16 kVA Scalable, 208-240V, 14U Rack/Tower
by Eaton
The Eaton 9PXM8S4K is a scalable and versatile online double-conversion UPS system designed for high-performance power protection. Starting at 4 kVA and scalable up to 16 kVA, it features hardwired input and output, supports multiple voltage configurations (208V–240V), and fits seamlessly in a 14U rack or tower setup. Ideal for growing IT environments, this TAA-compliant UPS includes hot-swappable internal batteries, ABM technology for battery longevity, and intelligent management options via Gigabit Network, Modbus, or Relay cards. Reliable, efficient, and compact—this unit is built to grow with your power demands.
| Specification | Details |
|---|---|
| Catalog Number | 9PXM8S4K |

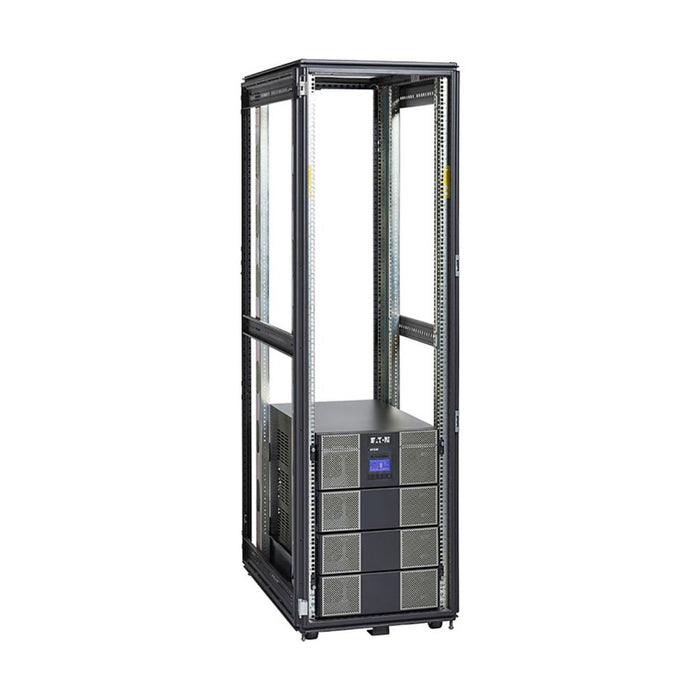

| Form Factor | Rack/Tower Convertible (14U) |
| Power Capacity | 4 kVA / 3.6 kW, scalable to 16 kVA |

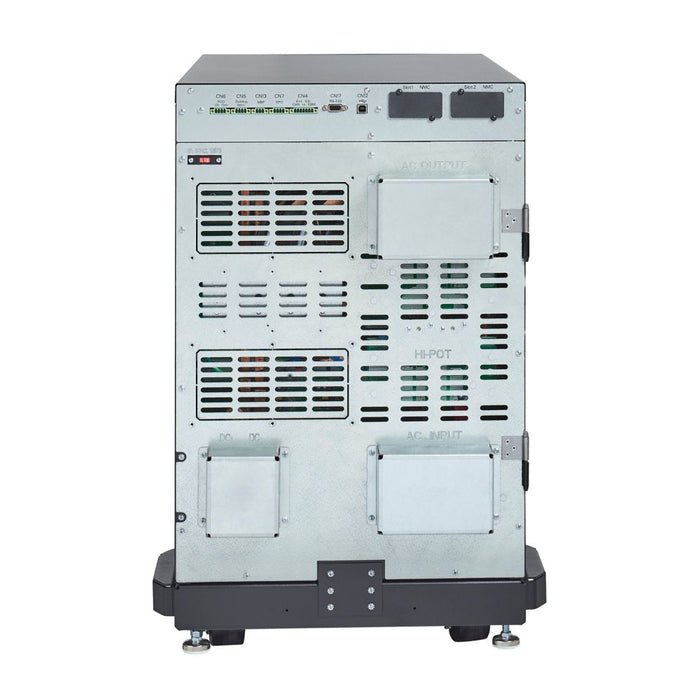

| Input Connection | Hardwired |
| Output Connection | Hardwired |
| Input Voltage Range | 110V/220V, 120V/208V, 120V/240V, 127V/220V |
| Output Voltage | 120/208V nominal |
| Output Power Factor | 0.9 (True Sine Wave) |
| Topology | Online/Double-conversion |
| Battery Type | Hot-swappable internal batteries & extended battery modules (EBMs) |
| Battery Management | ABM Technology (3-stage charging, extended battery life) |
| Extended Battery Capability | Yes |

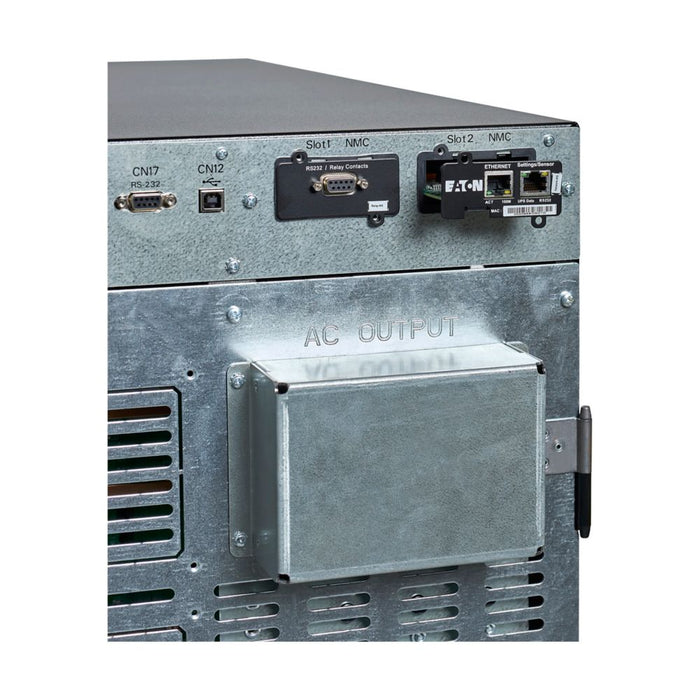

| Communications Slots | (2) Mini-Slot expansion ports (Network, Modbus, Relay) |
| Software Compatibility | Intelligent Power Software Suite |
| Bypass Support | Internal bypass and auto shutdown function |
| Color | Black/Silver |
| Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Humidity | 5–95% RH (non-condensing) |
| Certifications | cULus Listed, TAA Compliant, FCC Compliant, IEC Rated |
| Dimensions (H x W x D) | 25 in x 17.5 in x 34.5 in |
| Weight | 229 lbs |
| Warranty | 2-Year Factory Warranty (Parts, Electronics, Batteries) |
| Extended Service Options | 5-Year Depot Exchange or On-Site Plans Available |
