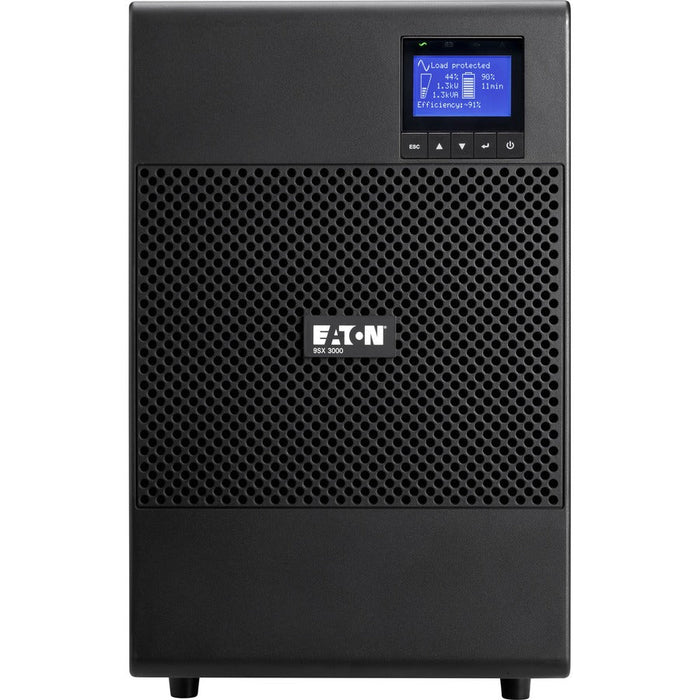

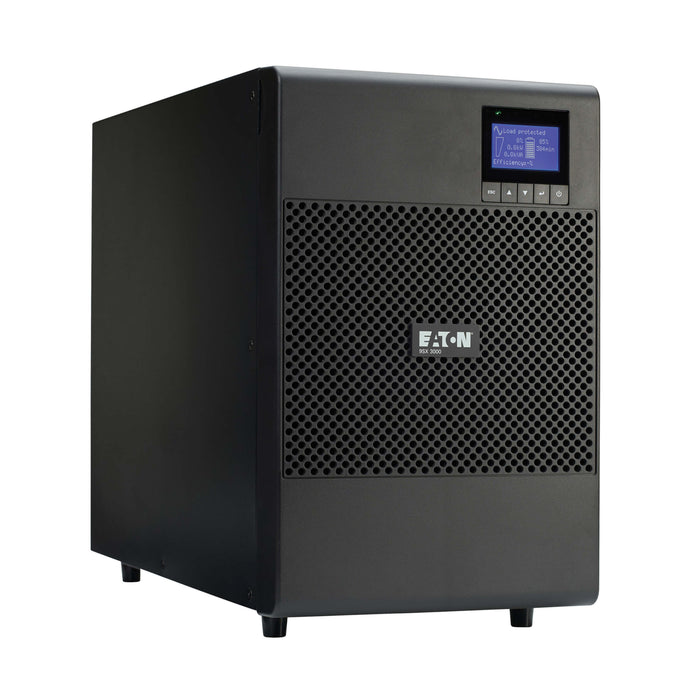

Eaton 9SX 3000VA 2700W 208V Online Double-Conversion UPS – 2 NEMA 6-20R, 1 L6-30R, 2 L6-20R Outlets, Network Card Option, Tower, Extended Run
The Eaton 9SX3000GL delivers reliable, continuous power for mission-critical IT, medical, light industrial, and automation systems. This 3000VA/2700W online double-conversion UPS provides zero transfer time and pure sine wave output for maximum uptime and power quality. Equipped with 2 NEMA 6-20R, 1 L6-30R, and 2 L6-20R outlets, it allows load segment control to prioritize essential equipment. Advanced ABM battery management extends battery life by up to 50%, and support for up to 4 external battery modules allows for long runtime scalability. The optional cybersecure Network-M3 card enables full remote monitoring and control. Its tower design fits neatly in tight IT spaces, supported by a crisp LCD interface and multiple communication ports.
| Specification | Details |
|---|---|
| Model | Eaton 9SX3000GL |
| Form Factor | Tower |
| Topology | Online Double-Conversion |
| Power Capacity | 3000VA / 2700W |
| Input Voltage | 208V AC |
| Input Plug Type | NEMA L6-20P |
| Input Cord Length | 8 ft (2.4 m) |
| Output Voltage | 200V–250V selectable |

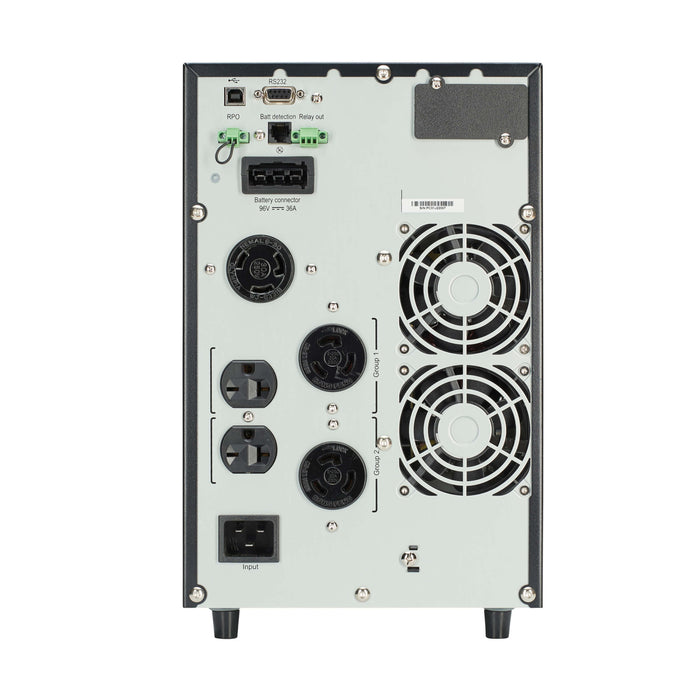

| Output Receptacles | 2× 6-20R, 2× L6-20R, 1× L6-30R |
| Outlet Load Segments | 2 Individually Controllable Load Banks |
| Runtime @ Full Load (2700W) | 5.8 minutes |
| Runtime @ Half Load (1350W) | 15.7 minutes |
| Expandable Runtime | Yes – up to 4 EBMs (9SXEBM96) |

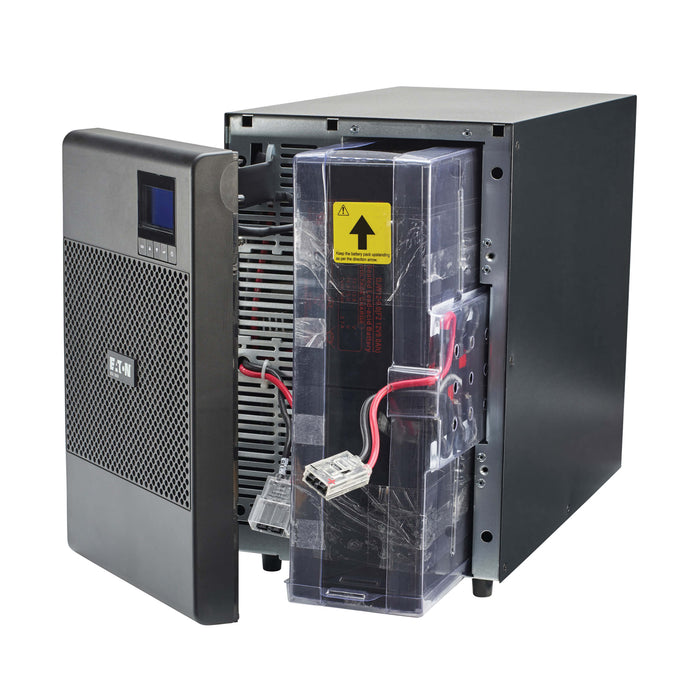

| Battery Type | Hot-swappable, VRLA |
| Battery Management | ABM Technology (3-stage charging) |
| LCD Display | Yes, Graphical with System Alerts |
| Network Management Option | Yes – Network-M3 (Sold Separately) |
| Communications Ports | USB, RS-232, Dry Contact, RPO/ROO, SNMP Slot |
| EMI/RFI Suppression | Yes |
| Certifications | UL, cUL, FCC, RoHS, CE, OSHPD Seismic |
| Dimensions (HxWxD) | 13.6 x 8.4 x 16.2 in |
| Weight | 77.2 lbs (35.02 kg) |
| Operating Temperature | 0° to 40°C (32° to 104°F) |
| Warranty | 3-Year Limited Warranty |
