Eaton EBA200-10 Basic Rack PDU, 0U, 24A, L14-30P, 34 Outlets, TAA
by Eaton
The Eaton EBA200-10 is a TAA-compliant, basic rackmount PDU designed for high-density IT environments. With a vertical 0U form factor, this split-phase unit delivers up to 5.76 kW of reliable power via a 10-foot cord with an L14-30P input plug. It features a total of 34 outlets—(8) 5-20R, (20) C13 with outlet grip, and (6) C19 with outlet grip—providing secure, versatile connectivity for your critical equipment. Built with rugged construction and UL certification, the EBA200-10 supports continuous uptime with dependable, efficient power distribution.
| Specification | Details |
|---|---|
| Product Name | Eaton Basic Rack PDU |
| Part Number | EBA200-10 |
| Form Factor | 0U (Vertical) |
| Input Voltage | 120/240V Split-phase |
| Input Connection | L14-30P |
| Cord Length | 10 ft |
| Max Power Capacity | 5.76 kW |
| Amperage Rating | 24A |
| Frequency | 50–60 Hz |
| Outlet Count | 34 outlets |

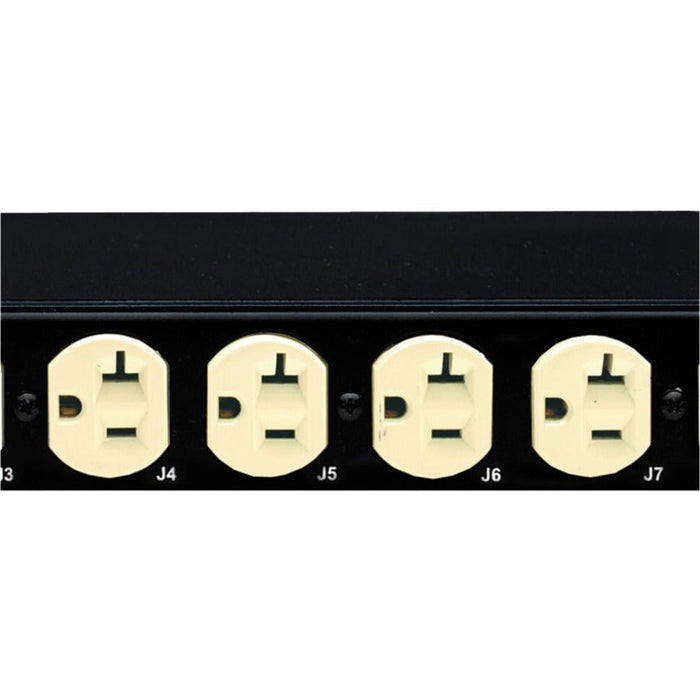

| Outlet Types | (8) 5-20R, (20) C13 with outlet grip, (6) C19 with outlet grip |
| Outlet Control | No |
| Interfaces | No Ethernet or Serial Interface |
| Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Certifications | UL Listed, TAA Compliant |
| Warranty | 3-Year Warranty |
| Dimensions (L x W x H) | 66.5 in x 2.05 in x 2.09 in |
| Weight | 11.5 lb |
| UPC | 786685974699 |
