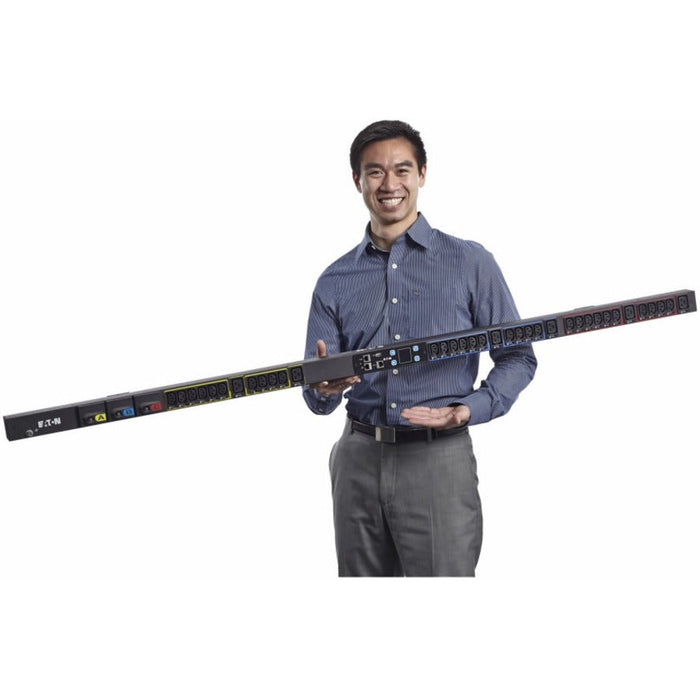

Eaton EMI331-10 G3 Metered Input ePDU, 0U, 8.6kW, 3-Phase, 33 Outlets, L21-30P, 10 ft Cord
The Eaton EMI331-10 is a G3 Metered Input rack PDU engineered for high-reliability power distribution in demanding IT and data center environments. This 0U vertical PDU features a three-phase NEMA L21-30P input and delivers up to 8.6 kW of power across 33 outlets: (6) 5-20R, (24) IEC C13, and (3) IEC C19.
Designed for high-density deployments, the unit enables precise power monitoring with billing-grade accuracy for voltage, current, energy, and power on both input and branch circuits. The built-in LCD pixel display and network connectivity allow seamless remote monitoring, aiding in load balancing, capacity planning, and energy efficiency management.
Built to operate reliably under elevated temperatures in hot aisle containment or networking closets, the EMI331-10 helps ensure uptime while optimizing energy use across mission-critical environments.
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Model Number | EMI331-10 |
| Product Type | Metered Input Rack PDU |
| Mounting Type | Vertical (0U), Rack-Mountable |
| Form Factor | 38U |
| Input Plug Type | NEMA L21-30P |
| Input Voltage | 120/208V |
| Input Phase | 3-Phase |
| Input Cord Length | 10 ft |
| Maximum Power Capacity | 8.6 kW |
| Rated Current | 24A |
| Output Receptacles | 6 x NEMA 5-20R24 x IEC 60320 C133 x IEC 60320 C19 |
| Total Output Connectors | 33 |
| Display | Local pixel LCD screen |
| Monitoring | Input and branch circuit metering (V, A, kWh, W) |
| Network Connectivity | Yes (Remote monitoring capabilities) |
| Operating Environment | Designed for high-temperature IT applications |
| Compliance | Billing-grade accuracy |
