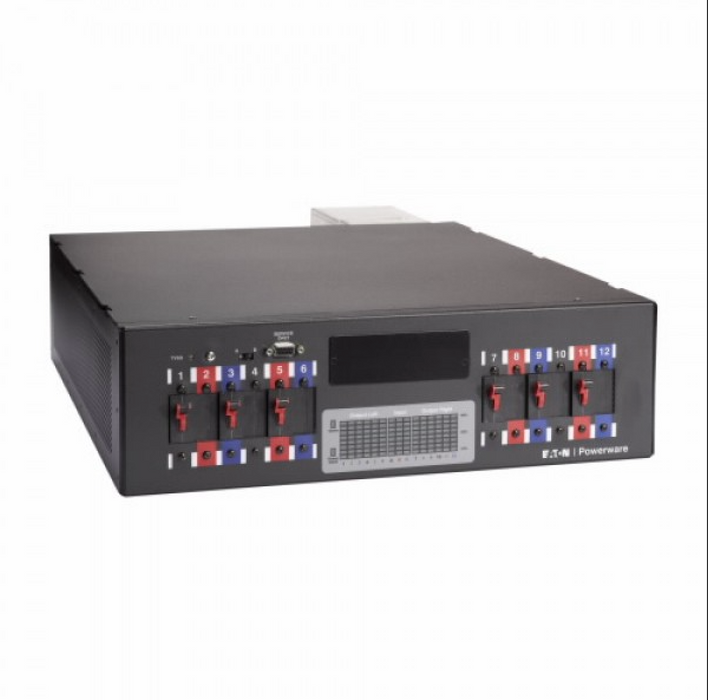

Eaton Rack Power Module (RPM) 208V, 4 x NEMA L21-20R, 36kW, 3U - Y03113011300000
by Eaton
The Eaton Rack Power Module (RPM), model Y03113011300000, delivers up to 36 kW of power in a compact 3U form factor, providing a flexible and reliable power distribution solution for data center environments. Designed to connect directly from a three-phase UPS like the Eaton BladeUPS, it distributes power to downstream devices such as Eaton ePDUs. With twelve pole positions and four NEMA L21-20R receptacles, the RPM supports customizable voltage and outlet configurations. Its tool-less mounting design simplifies installation into standard 19-inch racks, and its durable construction ensures long-lasting performance.
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Part Number | Y03113011300000 |
| Product Name | Rack Power Module (RPM) |
| Product Type | Power Module |
| Input Voltage | 208 V AC |
| Output Power Capacity | Up to 36 kW |
| Receptacles | 4 x NEMA L21-20R |
| Mounting Type | Rack-mountable (3U) |
| Pole Positions | 12 |
| Compatible With | Eaton BladeUPS, Eaton ePDU |
| Height | 5.2 inches |
| Width | 17.4 inches |
| Depth | 26.3 inches |
| Weight | Approx. 31.97 lbs |
| Shipping Weight | 44 lbs |
| Condition | New and Factory Fresh |
