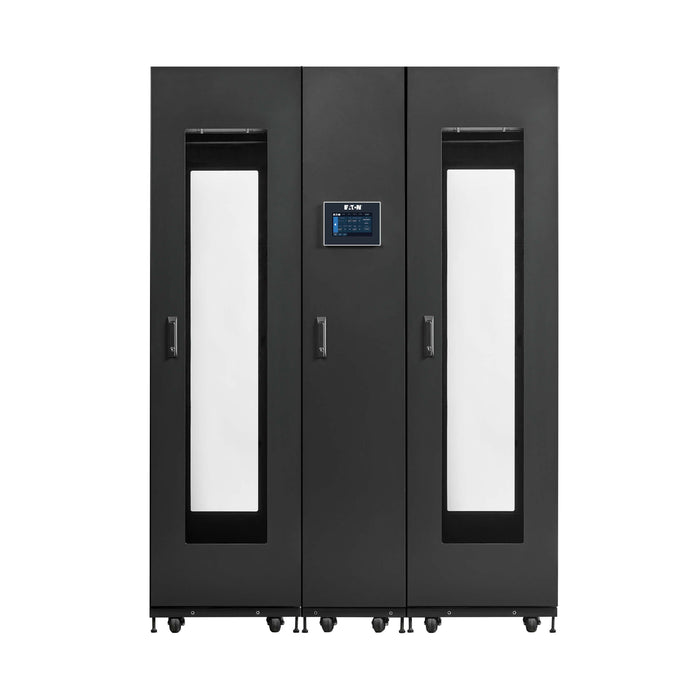

Eaton SmartRack Modular Data Center – 2x 44U Racks with 12 kW In-Row Cooling, Pre-Configured, IP54, Self-Contained POD
by Eaton

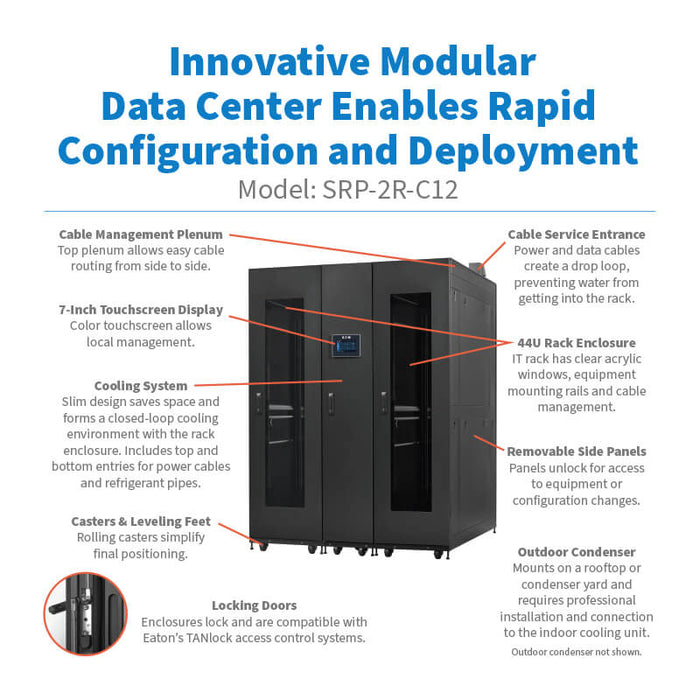

The Eaton SRP-2R-C12 SmartRack® Modular Data Center offers a high-efficiency, scalable solution designed for rapid deployment at the edge. Combining two 44U IT rack enclosures and a 12 kW in-row cooling unit into a pre-configured, self-contained pod, this system simplifies data center setup and reduces both cost and time. Built for performance and protection, it features closed-loop active cooling with an outdoor condenser, a 7-inch touchscreen for local access, remote monitoring via WEBCARDLXMINI, IP54 ingress protection, and lockable doors with clear acrylic windows for safe, visible operations. Ideal for edge computing, AI, and manufacturing environments, the SRP-2R-C12 is engineered to be robust, transportable, and quick to install.
| Specification | Details |
|---|---|
| Model Number | SRP-2R-C12 |
| Rack Configuration | 2x 44U IT Rack Enclosures (88U total) |
| Cooling System | 12 kW In-Row Precision Cooling (DX type) |
| Cooling Capacity | 43,686 BTU/hr (12.8 kW) |
| Airflow | 1,475 CFM |
| Refrigerant | R410A |
| Cooling Unit Features | LCD Touchscreen, Remote Monitoring (WEBCARDLXMINI) |
| Voltage Compatibility | 208V (3-wire / 4-wire + Ground) |
| Operating Temperature | 18° to 40°C (64° to 104°F) |
| Ingress Protection Rating | IP54 |
| Max Device Depth | 123.7 cm / 48.7 in |
| Unit Dimensions (H x W x D) | 241.5 x 163.2 x 164.8 cm (95.07 x 64.25 x 64.88 in) |
| Unit Weight | 896.75 kg / 1977 lbs |
| Weight Capacity (Static) | 1,361 kg / 3000 lbs |
| Sound Level | < 68 dBA |
| Humidity Range (Operating) | 5% to 80% RH |
| Elevation (Operating) | 0 to 4,000 m (0 to 13,123 ft) |
| Condensate Drain Pump | 9 L/hr per unit |
| Compressor Type | Rotary (Inverter Driven) |
| Casters & Mobility | Pre-installed metal casters |
| Compliance & Certifications | FCC Part 15 Class A, RoHS Compliant |
| Warranty | 5-Year (Racks), 1-Year (Cooling Unit) |
