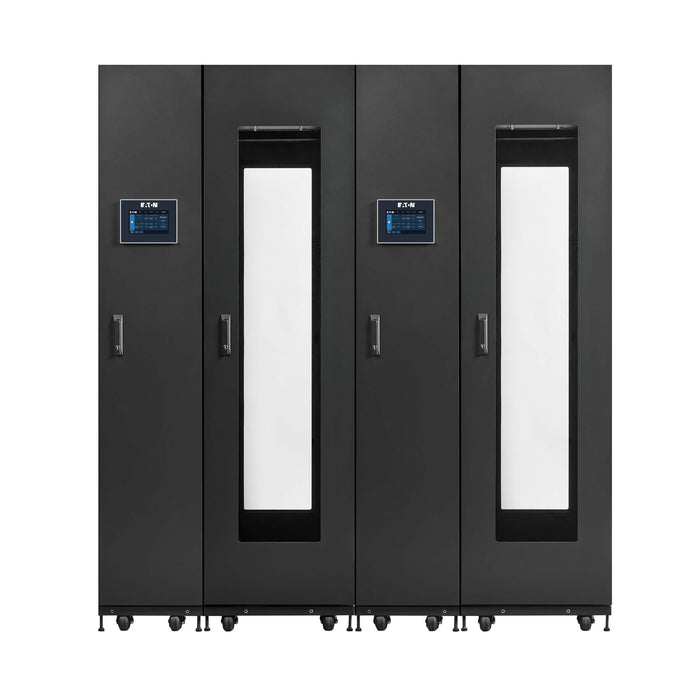

Eaton SmartRack SRP-2R-2C12 Modular Data Center – 2x 44U Racks, 2x 12 kW AC Units

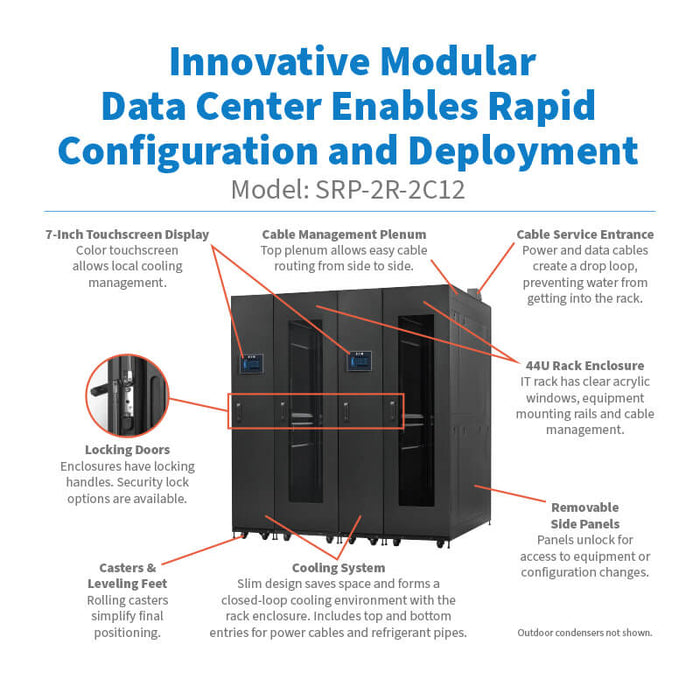

The Eaton SmartRack SRP-2R-2C12 is a pre-configured, self-cooling modular data center designed to simplify deployment, lower costs, and meet the demands of edge computing and AI workloads. This performance-optimized data center (POD) includes two 44U IT rack enclosures and two 12 kW in-row cooling units (SRCOOLDXRW12), forming a compact closed-loop system that delivers efficient precision cooling in a secure, scalable format.

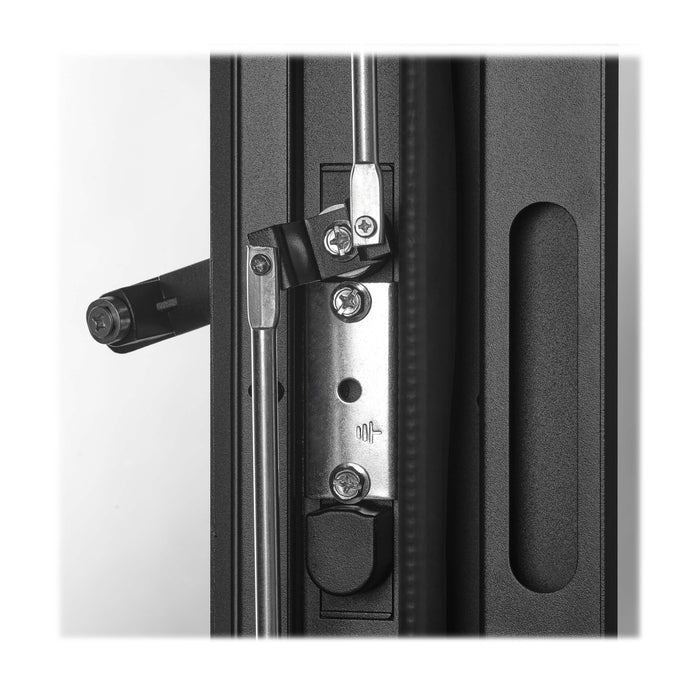

Ideal for factories, warehouses, and distributed sites, the SRP-2R-2C12 protects equipment from physical and environmental stress with its locking doors, moisture-isolated cable routing, and IP54-rated design. The entire system arrives preassembled with casters for easy positioning and includes user-friendly touchscreen interfaces and remote monitoring capabilities.
| Specification | Details |
|---|---|
| Model Number | SRP-2R-2C12 |
| Rack Capacity | 2x 44U Enclosures (88U total) |
| Cooling Units | 2x 12 kW In-Row Cooling Units (SRCOOLDXRW12) |
| Cooling Type | Direct Expansion (DX), Active Cooling |
| Cooling Capacity | 25.6 kW / 87,372 BTU |
| Airflow | 2,950 CFM |
| Refrigerant | R410A |
| Compressor | Rotary (Inverter Driven) |
| Display Interface | 7" Color Touchscreen + WEBCARDLXMINI (Remote Access) |
| Ingress Protection (IP) | IP54 |
| Noise Level | < 68 dBA |
| Casters | Pre-installed for mobility |
| Dimensions (H x W x D) | 95.07 x 81.02 x 64.88 in (241.48 x 205.79 x 164.80 cm) |
| Weight (Total) | 2,814 lbs (1,276.41 kg) |
| Weight Capacity (Stationary) | 3,000 lbs (1,361 kg) |
| Operating Temp | 64°F to 104°F (18°C to 40°C) |
| Storage Temp | -40°F to 140°F (-40°C to 60°C) |
| Humidity Range | 5% to 80% RH |
| Elevation (Operating) | Up to 13,123 ft (4,000 m) |
| Condensate Drain Pumps | 9 L/hr per unit |
| Certifications | FCC Part 15 Class A (USA), RoHS |
| Warranty | 1-Year (Cooling Units), 5-Year (Rack Enclosures) |
