Eaton SmartRack Modular Data Center – 2x 44U Racks, 3x 12 kW Cooling Units, Customizable Service Enclosure

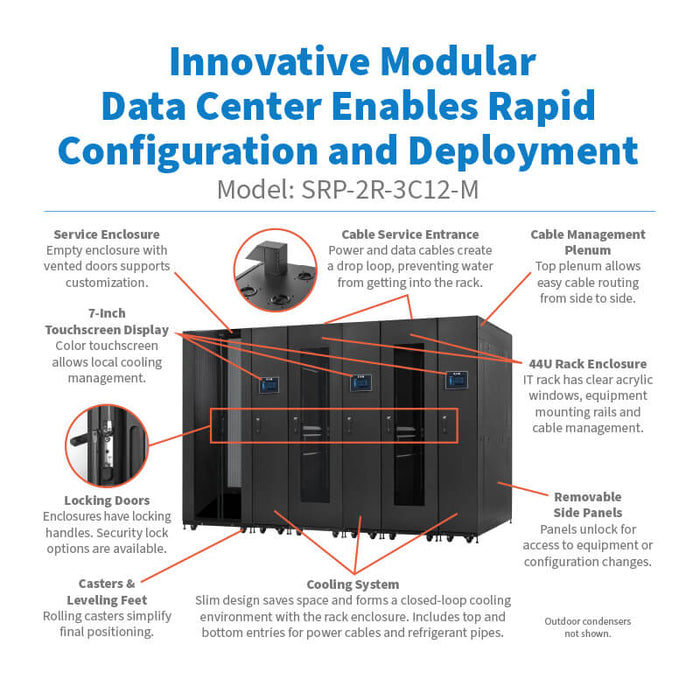

The Eaton SmartRack SRP-2R-3C12-M is a pre-configured, self-cooling modular data center solution designed for high-density edge computing, AI, and industrial applications. It integrates two 44U IT rack enclosures, three 12 kW in-row precision cooling units, and one customizable service enclosure into a compact, easy-to-deploy POD (Performance Optimized Data Center). This system offers scalable deployment, fast configuration, physical security, and closed-loop cooling to minimize downtime and hot spots.
The included SRCOOLDXRW12 cooling units ensure effective thermal management with remote monitoring capabilities and user-replaceable filters. Casters and removable panels support convenient transportation and access. The vented service enclosure allows you to install essential infrastructure such as UPS systems, fire suppression, or power panels as your needs evolve.
| Category | Details |
|---|---|
| Model Number | SRP-2R-3C12-M |
| Rack Capacity | 2x 44U IT rack enclosures |
| Cooling Units | 3x 12 kW In-Row Cooling (SRCOOLDXRW12) |
| Service Enclosure | 1x Customizable, vented (800 mm wide) |
| Cooling Type | Active, In-Row Precision Cooling (DX) |
| Cooling Capacity | 38.4 kW / 131,058 BTU |
| Airflow | 4,425 CFM |
| Refrigerant | R410A |
| Touchscreen Display | 7-inch color LCD |
| Remote Monitoring | WEBCARDLXMINI included |
| Input Voltage | 208 VAC, 60 Hz, 3-wire / 4-wire + Ground |
| Operating Temp. Range | 18° to 40°C (64° to 104°F) |
| Humidity Range | 5% to 80% RH |
| Condensate Drain | Yes, 9 L/hr per unit |
| Dimensions (H x W x D) | 95.07 x 129.52 x 64.88 in (241.48 x 328.98 x 164.80 cm) |
| Weight | 1,989.91 kg (4,387 lbs) |
| Weight Capacity | 1,361 kg (3,000 lbs) per rack |
| Ingress Protection Rating | IP54 |
| Noise Level | < 68 dBA |

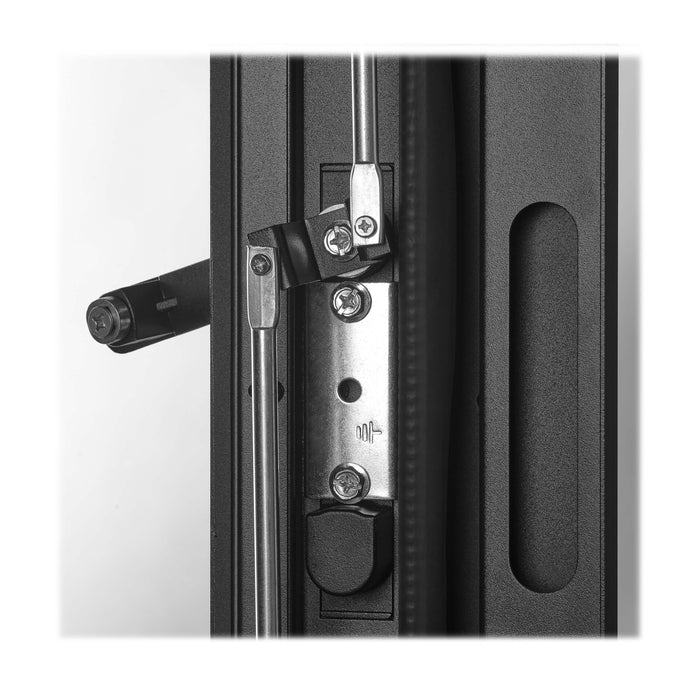

| Casters & Locking Doors | Yes |
| Compliance | FCC Part 15 Class A, RoHS |
| Warranty | 1-Year (Cooling), 5-Year (Racks and Service Enclosure) |
