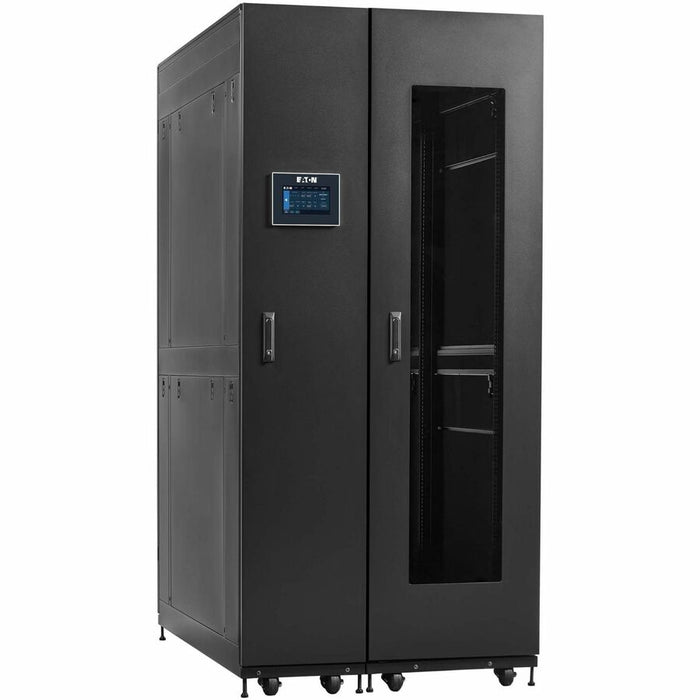

Eaton SRP-R-C12 SmartRack 44U Modular Data Center with 12kW Self-Cooling AC Unit
by Eaton
The Eaton SRP-R-C12 SmartRack is a fully pre-configured, self-cooling modular data center designed to simplify deployment and maximize uptime in edge computing, AI/ML, and manufacturing environments. This 44U rack enclosure comes with a built-in 12 kW Direct Expansion (DX) cooling system, pre-installed casters, built-in cable management, and a 7-inch touchscreen LCD interface. Its integrated design reduces installation time and total cost of ownership, while its 1,407 lb build and 3,000 lb weight capacity ensure rugged, scalable performance in high-demand IT spaces.
| Specification | Details |
|---|---|
| Catalog Number | SRP-R-C12 |
| Rack Height | 44U |
| Cooling Capacity | 12.8 kW / 43,686 BTU |
| Cooling Type | Direct Expansion (DX), Row Cooling |
| Compressor Type | Rotary (Inverter Driven) |
| Airflow | 1,475 CFM |
| Noise Level | < 68 dBA |
| Cooling Enclosure | 1 (Top and bottom bracketed, holed) |
| Fans | 3 x EC, 0–2000 RPM |
| LCD Display | 7-inch color touchscreen |
| Device Compatibility | Servers, UPS, PDU, Patch Panels |
| Rack Depth (Max Device Depth) | Deep (48.7 in) |
| Voltage Compatibility | 208 VAC |
| Frequency Rating | 60 Hz |
| Weight Capacity (Stationary) | 3,000 lb |
| Condensate Drain Pumps | 9 liters/hr per unit |
| Dimensions (H x W x D) | 95.07 x 40.39 x 64.88 in |
| Weight | 1,407 lb |
| Color | Black |
| Operating Temperature Range | 64° to 104°F (18° to 40°C) |
| Storage Temperature Range | -40° to 140°F (-40° to 60°C) |
| Operating Humidity Range | 5% to 80% RH |
| Operating Elevation | 0–13,123 ft (0–4000 m) |
| Rack Features | Locking, Clear Window Panels, Cable Mgmt, Casters |
| Certifications | FCC Class A, RoHS |
