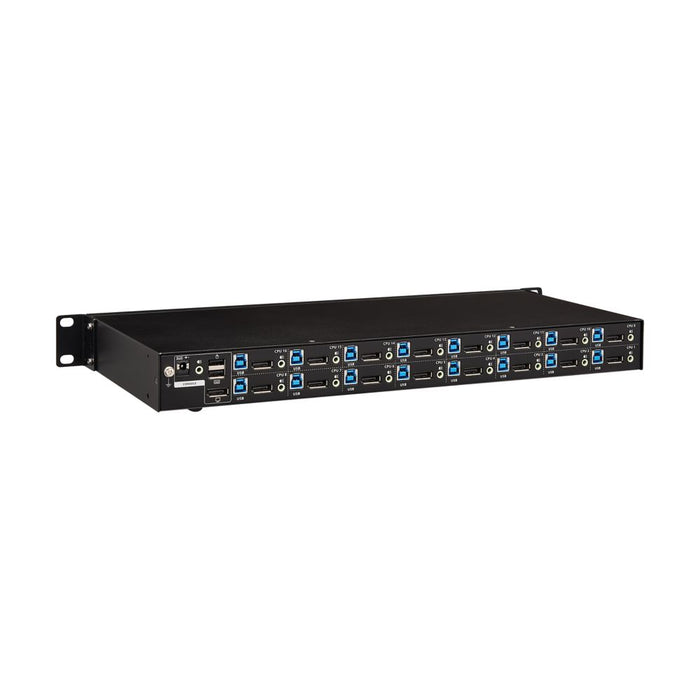

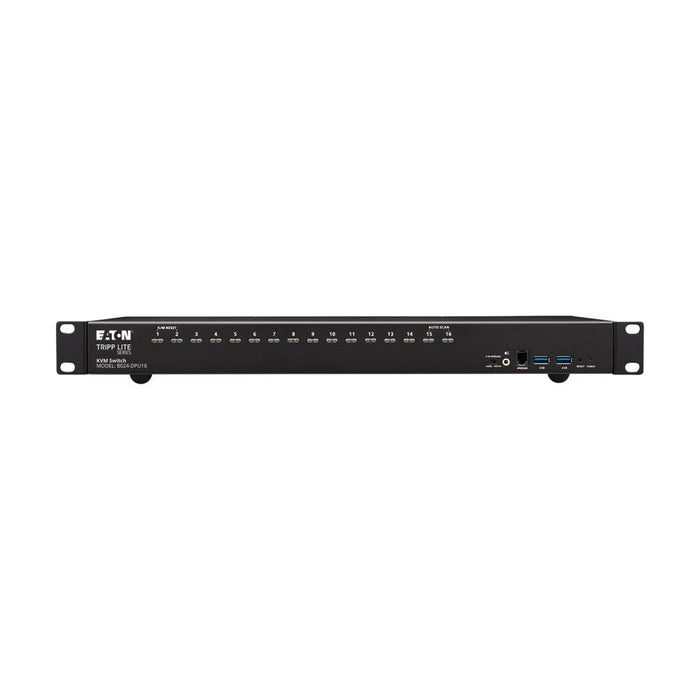

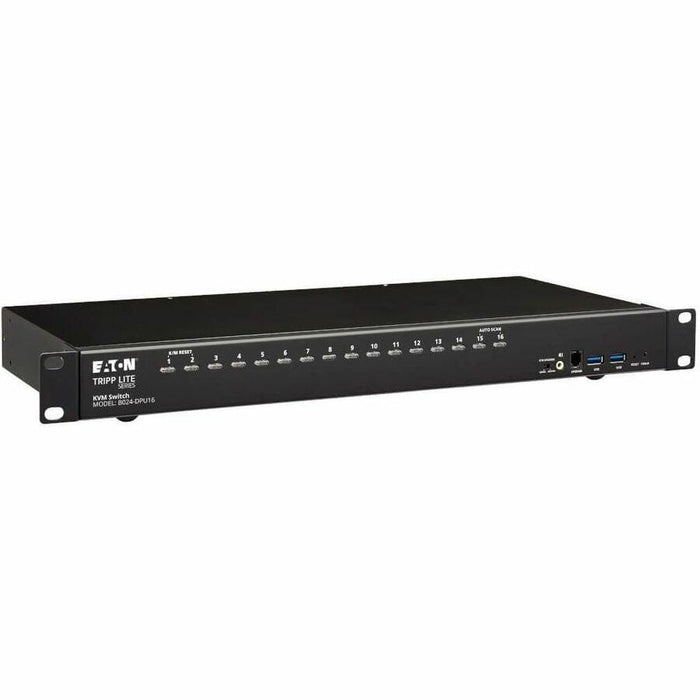

Eaton Tripp Lite 16-Port DisplayPort/USB KVM Switch with Audio, USB Sharing, 4K 60 Hz, 1U Rack-Mount
by Eaton
The Eaton Tripp Lite B024-DPU16 is a 16-Port DisplayPort/USB KVM switch that enables efficient control of multiple computers from a single console. Featuring DisplayPort video, USB keyboard/mouse support, and audio capability, it delivers ultra-high-definition 4K video at 60 Hz, while allowing seamless switching via hotkeys, push buttons, or on-screen display (OSD). Its built-in USB 3.1 hub allows peripheral sharing across systems. Rackmount-ready and TAA-compliant, this KVM is ideal for enterprise environments requiring fast, centralized control of servers or desktops with minimal clutter.
| Specification | Details |
|---|---|
| Model | Eaton B024-DPU16 |
| Product Type | Rackmount KVM Switch |
| Form Factor | 1U Rack-Mount |
| Number of Ports | 16 |
| Max Supported Resolution | 4096 x 2160 @ 60 Hz (4K UHD) |
| Video Interface | DisplayPort 1.2 |
| Audio Support | Stereo (3.5 mm jack) |
| USB Peripheral Sharing | Yes (via integrated 2-port USB 3.1 hub) |
| Port Switching Methods | Pushbuttons, Hotkeys, On-Screen Display (OSD) |
| Cascadable | Yes – Up to 2 levels (control up to 256 computers) |
| Console Interface | DisplayPort (video), USB (keyboard/mouse), 3.5 mm (audio) |
| Computer Interface | DisplayPort, USB-A, 3.5 mm audio |
| Users Supported | 1 |
| LED Indicators | Orange (Active Port), Green (Power/USB Link) |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | 0–80% RH (non-condensing) |
| Power Supply | External, 100–240V input, 12V 3.3A output |
| Power Consumption | 18.44 W |
| Certifications | RoHS, CE, WEEE, REACH, FCC, NOM |
| Chassis Material | Metal |
| Dimensions (H x W x D) | 1.73 x 17.02 x 8.44 in (44 x 432 x 214 mm) |
| Weight | 6.85 lb (3.1 kg) |
| Package Contents | KVM switch, DP & USB cables, audio cables, power supply, rack hardware, quick start guide |
