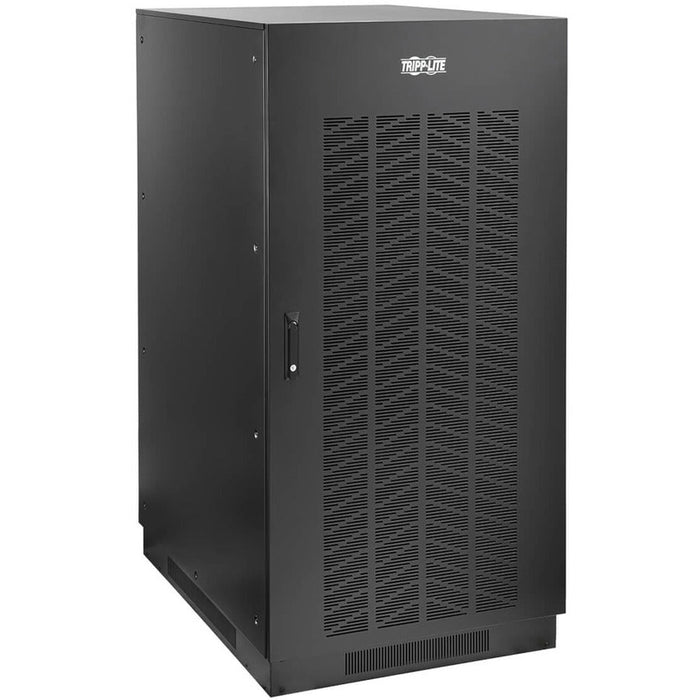

Eaton BP240V65L ±120VDC External Battery Cabinet with 40x 65Ah VRLA Batteries for 10-100K S3M-Series 3-Phase UPS
by Eaton
The Eaton BP240V65L is a heavy-duty external battery cabinet engineered to extend the runtime of Eaton Tripp Lite S3M-Series 10–100KVA 3-phase UPS systems. Equipped with 40x 65Ah VRLA (AGM) batteries, this ±120VDC battery pack ensures continued backup power for critical IT infrastructure, data centers, industrial systems, and emergency applications.
Built for demanding environments, the cabinet features rugged steel construction with a locking front door, integrated fuses, and an output breaker to enhance safety and performance. The BP240V65L also supports daisy-chaining with additional battery cabinets for scalable runtime expansion. Ships with cables for quick deployment with 10–20KVA models and terminal blocks for larger UPS integration.
| Specification | Details |
|---|---|
| Model Number | BP240V65L |
| Battery Type | 40x 65Ah VRLA (AGM) Batteries (included) |
| DC System Voltage | ±120VDC |
| UPS Compatibility | Tripp Lite S3M-Series UPS (10K–100KVA models) |
| UPS Connection | Hardwire (wiring by contractor; see manual) |
| Expandable Runtime | Yes – Daisy-chain capable |
| Cabinet Construction | Heavy-gauge powder-coated steel |
| Form Factor | Tower |
| Rack Height | 0U |
| Unit Dimensions (H x W x D) | 63.00 x 31.50 x 43.40 in (160.02 x 80.01 x 110.24 cm) |
| Shipping Dimensions (H x W x D) | 70.90 x 36.20 x 49.10 in |
| Unit Weight | 2,389.6 lb (1,083.90 kg) |
| Shipping Weight | 2,541.8 lb (1,152.99 kg) |
| Input Phase | 3-Phase |
| Compliance | RoHS |
| Warranty | 1-Year Limited Warranty |
| Included Accessories | (2) 3m Battery Cables, (4) Bottom Metal Skirts, Owner’s Manual |
