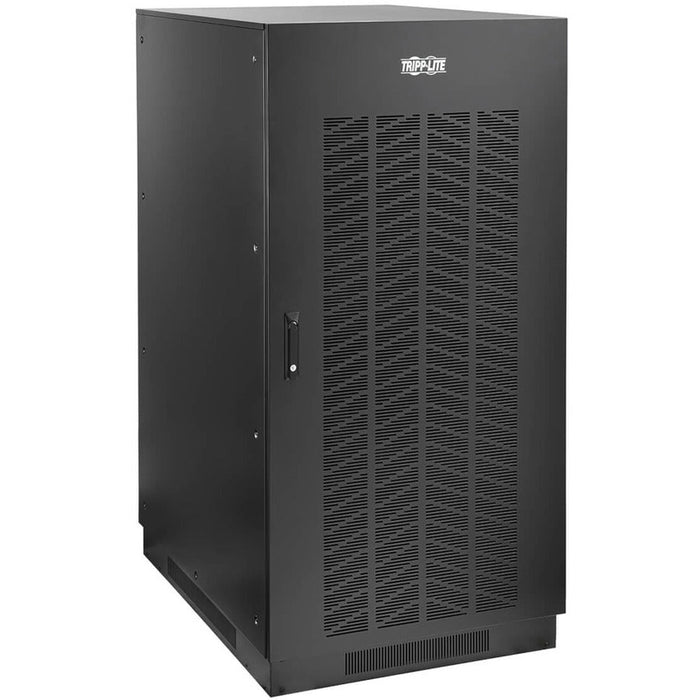

Eaton BP240V100L ±120VDC External Battery Cabinet, 40x 100Ah VRLA, for S3M-Series 3-Phase UPS (50–100KVA)
by Eaton
The Eaton BP240V100L External Battery Cabinet delivers extended backup runtime for mission-critical applications when paired with compatible Eaton Tripp Lite SmartOnline® S3M-Series 50–100KVA 3-Phase UPS systems. Featuring 40x 100Ah VRLA (AGM) batteries, the ±120VDC battery pack supports daisy-chaining for scalable runtime, making it ideal for high-availability environments such as data centers, industrial systems, and telecommunications infrastructure. Its rugged steel design, locking front door, and built-in fuses and output breaker ensure secure, durable, and safe operation.
| Specification | Details |
|---|---|
| Model Number | BP240V100L |
| UPC Code | 037332257772 |
| Battery Type | 40x 100Ah VRLA (AGM) |
| DC Voltage | ±120VDC |
| UPS Compatibility | Eaton Tripp Lite S3M-Series (S3M50K–S3M100K) |
| UPS Connection | Hardwire (via terminal blocks) |
| Expandable Runtime | Yes – Daisy-chainable |
| Input Phase | 3-Phase |
| Material | Heavy-Gauge Steel with Powder-Coated Finish |
| Form Factor | Tower (0U Rack Height) |
| Unit Dimensions (H x W x D) | 63.00 x 31.50 x 43.40 in (160.02 x 80.01 x 110.24 cm) |
| Shipping Dimensions (H x W x D) | 70.90 x 36.20 x 49.10 in |
| Unit Weight | 3612 lbs (1638.38 kg) |
| Shipping Weight | 1708.46 kg |
| Compliance | RoHS |
| Warranty | 1-Year Limited Warranty |
| Included Accessories | 4x bottom side metal skirts, Owner’s Manual |
