Eaton Tripp Lite 1U Rack-Mount Console with 19" 1080p LCD, DVI/VGA, USB, TAA Compliant

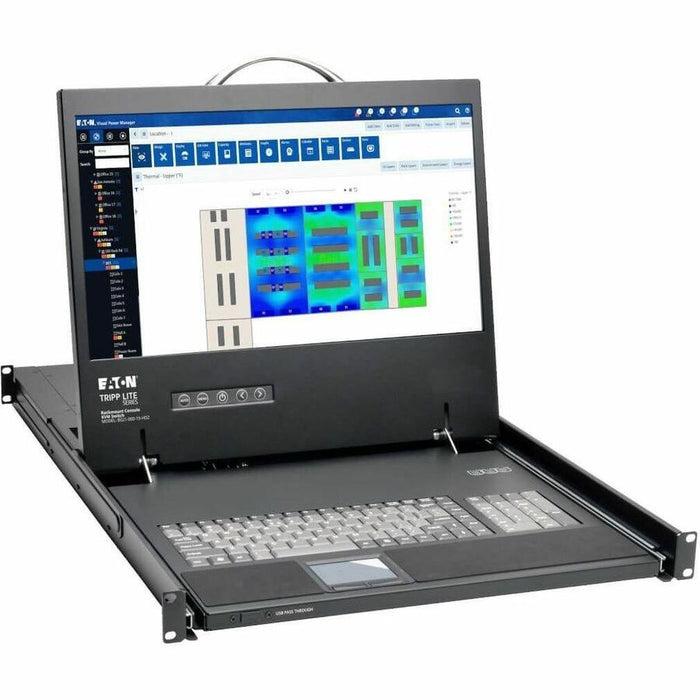

The Eaton Tripp Lite B021-000-19-HD2 1U Rack-Mount Console offers a compact, space-saving solution for IT environments where rack space is limited. It integrates a 19-inch full HD LCD monitor (1920 x 1080), keyboard, numeric keypad, and touchpad in a single sliding drawer that mounts into 1U of standard 19-inch rack space.
Compatible with DVI and VGA video sources, this versatile console supports USB keyboard and mouse input and includes pass-through USB 2.0 ports for connecting peripherals such as flash drives or CAC readers. The console easily folds away into the rack and enters automatic sleep mode when not in use. Ideal for server rooms, data centers, and control environments, this unit complies with TAA standards for government and GSA applications.
| Specification | Details |
|---|---|
| Model Number | B021-000-19-HD2 |
| Display Size | 19 in. LCD Monitor |
| Max Resolution | 1920 x 1080 (1080p) @ 60Hz |
| Input Video Types | DVI-I (digital and analog via adapter) |
| Input Devices | Full Keyboard, Numeric Keypad, Touchpad |
| USB Ports | USB 2.0 pass-through (Front & Rear) |
| Mounting | 1U Rack-Mount, fits 19 in. EIA-standard 2-/4-post racks |
| Power Input | 100–240V AC, 50/60Hz, 2A |
| Power Consumption | Max: 30W, Standby: 5W |
| Video Adapter Included | DVI to VGA Adapter |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -13° to 140°F (-25° to 60°C) |
| Humidity | 20% to 90% RH (non-condensing) |
| Unit Dimensions (H x W x D) | 1.7 x 18.78 x 27.26 in. (4.32 x 47.7 x 69.24 cm) |
| Unit Weight | 27.78 lbs (12.6 kg) |
| Compliance | RoHS, CE, FCC Part 15 Class A, TAA, UL, CAN/CSA |
| Warranty | 1-Year Limited Warranty |
| UPC Code | 037332194343 |

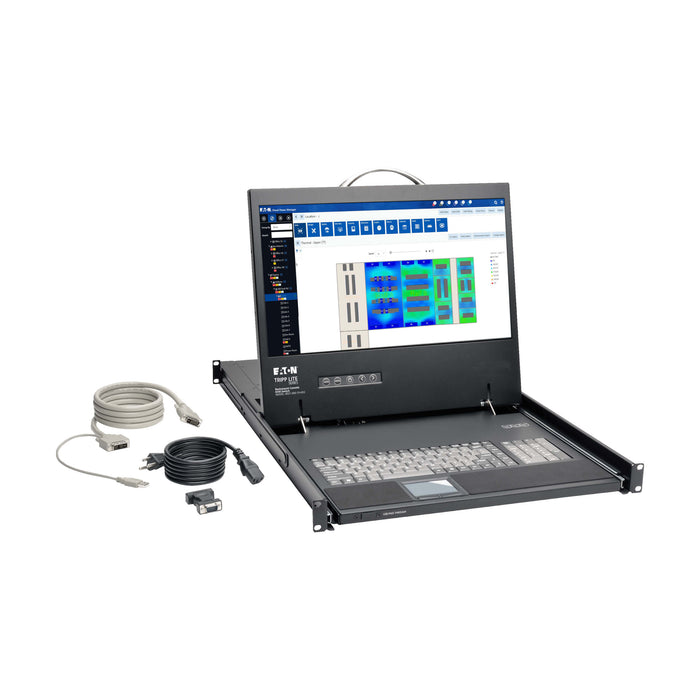

| Included Accessories | KVM cable (DVI-I/USB), DVI-VGA adapter, Power cord, Mounting brackets, Owner’s Manual |
