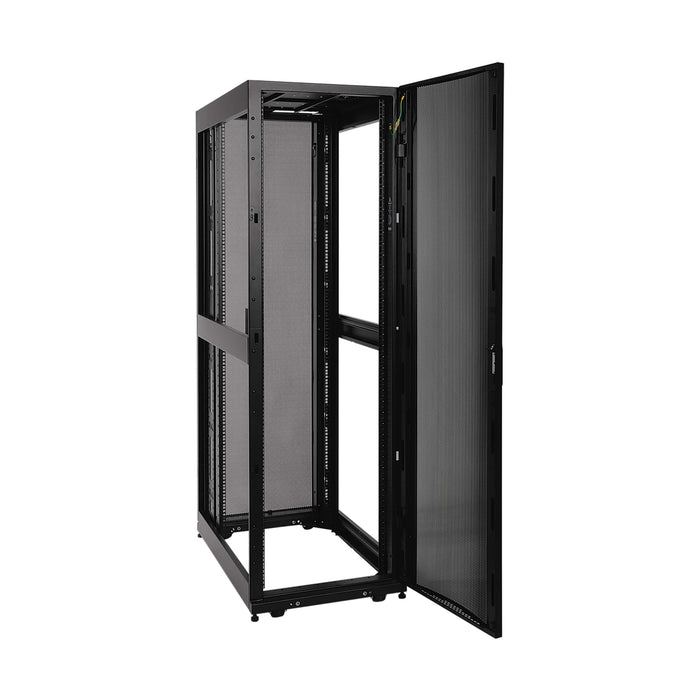

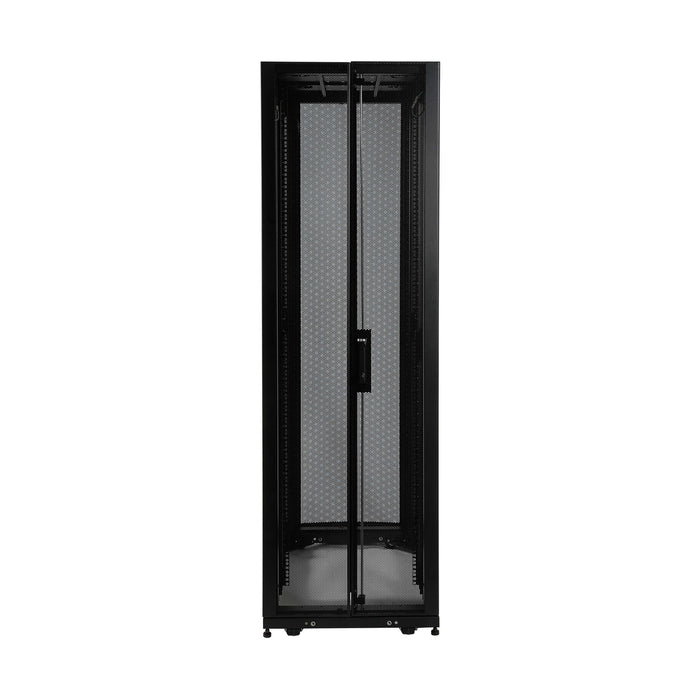

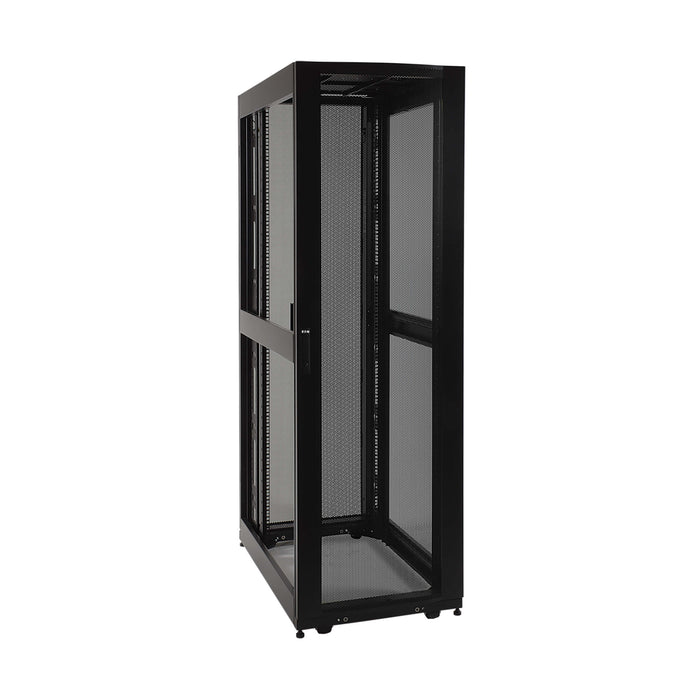

Eaton Tripp Lite 42U SmartRack Shallow-Depth Rack Enclosure Cabinet with Threaded 10-32 Mounting Holes, Doors & Side Panels
The Eaton Tripp Lite SR42UBSD1032 is a 42U SmartRack shallow-depth rack enclosure designed for applications with space constraints, A/V installations, or compact server environments. With a depth of only 32 inches, this cabinet supports up to 3,500 lbs of standard 19-inch rack equipment and features front and rear vertical rails with threaded 10-32 mounting holes. The cabinet is fully assembled, ships with locking, reversible doors and half-size locking side panels, and offers massive ventilation capacity for optimized airflow. Integrated casters and levelers enable easy positioning and stability.
This enclosure meets all PCI DSS compliance requirements and includes cable management and baying features for scalable data center use. Ideal for IT closets, retail, edge, or shallow network environments.
| Specification | Details |
|---|---|
| Model Number | SR42UBSD1032 |
| Rack Units (U) | 42U |
| Rack Depth | Shallow |
| Mounting Rail Type | Threaded 10-32 |
| Mounting Depth Range | 4 in – 27 in (10.16 cm – 68.58 cm) |
| Factory Preset Rack Depth | 19.25 in (489 mm) |
| Width x Depth x Height (Unit) | 23.63 x 32.48 x 78.5 in (60.02 x 82.5 x 199.39 cm) |
| Weight (Net / Shipping) | 215 lbs / 265 lbs (97.5 kg / 120.2 kg) |
| Weight Capacity (Stationary) | 3500 lbs (1588 kg) |
| Weight Capacity (Rolling) | 2250 lbs (1021 kg) |
| Ventilation | 65%+ perforation on front and rear doors |
| Doors | Reversible, removable front and split rear |
| Side Panels | Half-size, locking, removable (4 included) |
| Casters / Leveling Feet | Pre-installed, removable |
| Cable Management | Built-in, top and bottom access |
| Toolless Accessory Mounting Rails | Included |
| Certifications | UL 60950-1, RoHS, CE, UKCA |
| Warranty | 5-Year Limited Warranty |
| Compliance | PCI DSS Compliant |
| UPC | 037332175366 |
