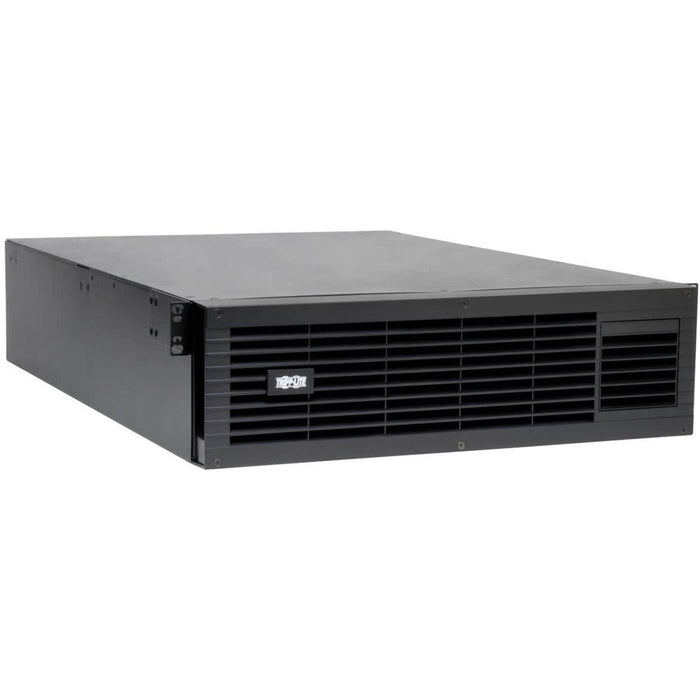

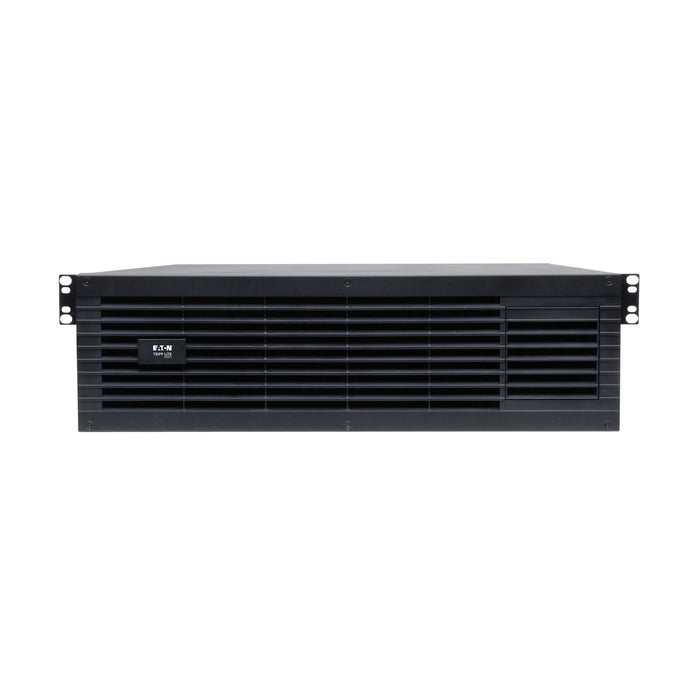

Eaton Tripp Lite External 192V 3U Rack/Tower Battery Pack for UPS Systems (BP192V12-3U)
by Eaton
The Eaton Tripp Lite BP192V12-3U is a high-capacity 192V external battery pack designed to extend the runtime of compatible Eaton UPS systems. With a versatile 3U rack/tower form factor, it supports both 4-post rack installations and optional 2-post or upright tower configurations. Built for demanding environments, this battery pack includes heavy-gauge DC cabling and daisy-chain connectors for scalable power backup solutions. Ideal for enterprise IT, network closets, and industrial applications requiring extended UPS performance.
| Specification | Details |
|---|---|
| Model Number | BP192V12-3U |
| Form Factor | 3U Rackmount / Tower |
| DC System Voltage | 192V DC |
| Expandable Runtime | Yes (Daisy-chain capable) |
| UPS Compatibility | SU5000RT4U, SU6000RT4U, SU8000RT4U, SU12KRT4UHW, and others |
| Input Phase | Single-Phase |
| Input Cord Length | 3 ft. (0.9 m) |

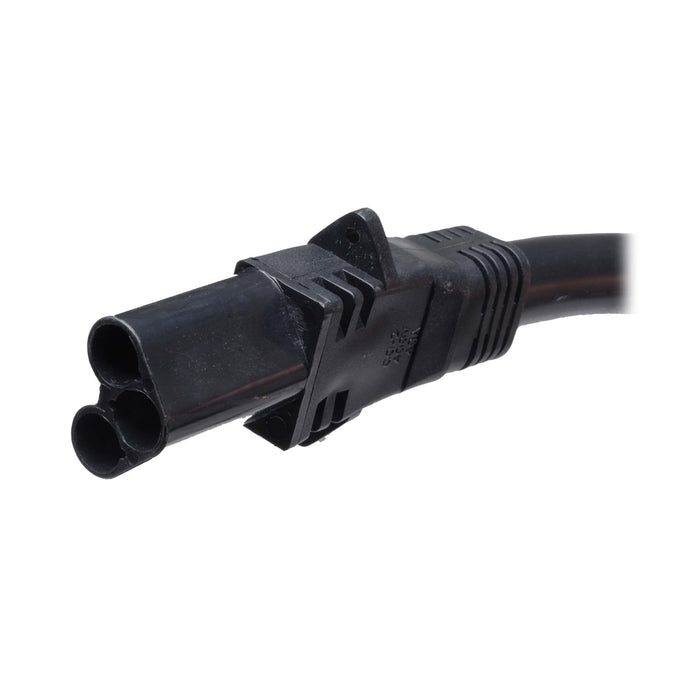

| UPS Connection | Detachable cable with high-current DC connector (90 cm, 8 gauge) |
| Overload Protection | 50A DC Output Fuse |
| Material of Construction | Steel |

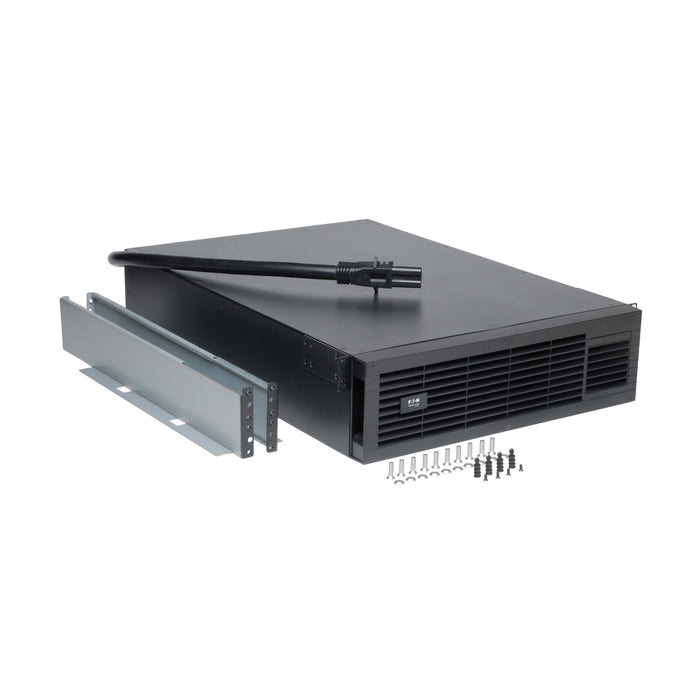

| Included Accessories | 4-post rack-mount kit, mounting hardware, manual |
| Optional Accessories | 2POSTRMKITHD (2-post mount), 2-9USTAND (tower stand) |
| Unit Dimensions (H x W x D) | 5.25 x 17.5 x 28 in. (13.3 x 44.5 x 71.1 cm) |
| Shipping Dimensions (H x W x D) | 11 x 23 x 33 in. (27.9 x 58.4 x 83.8 cm) |
| Unit Weight | 174 lbs (78.9 kg) |
| Shipping Weight | 200 lbs (90.7 kg) |
| Rack Depth Requirement | Minimum 31 in. (78.7 cm) |
| Compliance | RoHS, CE (Europe) |
| Warranty | 2-year limited (US/Canada); 1-year international |
