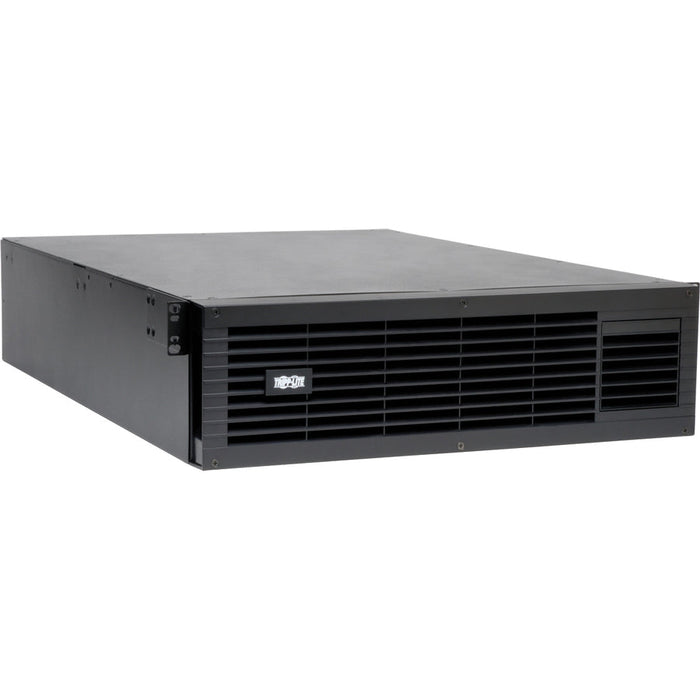

Eaton Tripp Lite 48V 3U External Battery Pack for Select UPS Systems, TAA (BP48V60RT3UTAA)
by Eaton
The Eaton Tripp Lite BP48V60RT3UTAA is a TAA-compliant 48V external battery pack designed to extend the runtime of compatible Eaton Tripp Lite UPS systems. Ideal for mission-critical environments, this rack/tower battery pack includes heavy-gauge cabling with high-current DC connectors for quick and secure installation. It supports 3U rack-mounting with 4-post installation accessories and includes a daisy-chain connector to link additional battery packs, maximizing power backup capabilities. Rugged steel construction and flexible mounting options make it an ideal choice for enterprise, government, or industrial applications.
| Specification | Details |
|---|---|
| Model Number | BP48V60RT3UTAA |
| Product Type | External Battery Pack |
| Voltage | 48V DC |
| Battery Type | Sealed Lead-Acid (user-replaceable) |
| Runtime Expandability | Yes – Daisy-chain with additional packs |
| UPS Compatibility | Compatible with multiple Eaton UPS models |

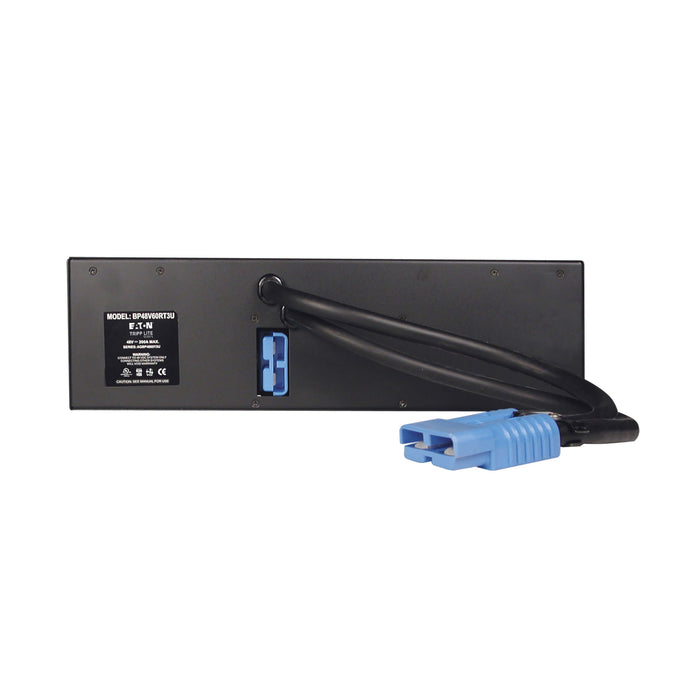

| Connector Type | Blue 175 amp DC male (20-inch cable) |
| Rack Height | 3U |
| Mounting Options | 4-post rack (included), 2-post & tower optional |
| Material | Steel |
| TAA Compliance | Yes – for GSA Schedule purchases |
| Unit Dimensions (H x W x D) | 5.25 x 17.5 x 25 in (13.3 x 44.4 x 63.5 cm) |
| Shipping Dimensions | 11 x 23 x 33 in (27.94 x 58.42 x 83.82 cm) |
| Unit Weight | 163.1 lbs (73.98 kg) |
| Shipping Weight | 185 lbs (83.91 kg) |
| Operating Temperature | 32–104°F (0–40°C) |
| Certifications | RoHS, CE, TAA |
| Warranty (U.S. & Canada) | 2-year limited |
