Eaton Tripp Lite BP48V48RT4U 48V 4U External Battery Pack for Select UPS Systems
by Eaton
The Eaton Tripp Lite BP48V48RT4U is a 4U external battery pack designed to extend runtime for select 48V DC UPS systems. Built with a reduced-depth form factor and durable steel housing, it integrates seamlessly with compatible Eaton UPS models, such as SMART2200CRMXL and SMART3000CRMXL.
Ideal for compact rack installations, this battery pack features heavy-gauge cabling with a high-current DC connector for safe and simple installation. It also supports daisy-chaining of additional compatible battery packs for scalable runtime expansion. Mounting hardware for 2-post racks is included, with 4-post rack compatibility available via an optional kit.
| Specification | Details |
|---|---|
| Model Number | BP48V48RT4U |
| Form Factor | Rack-mount, 4U |
| DC System Voltage | 48V DC |
| Compatibility | SMART2200CRMXL, SMART3000CRMXL, other 48V UPS |
| Battery Lifespan (Typical) | 4–6 years (North America) |
| Expandable Runtime | Yes, daisy-chain supported |
| Overload Protection | 180A DC output fuse system |

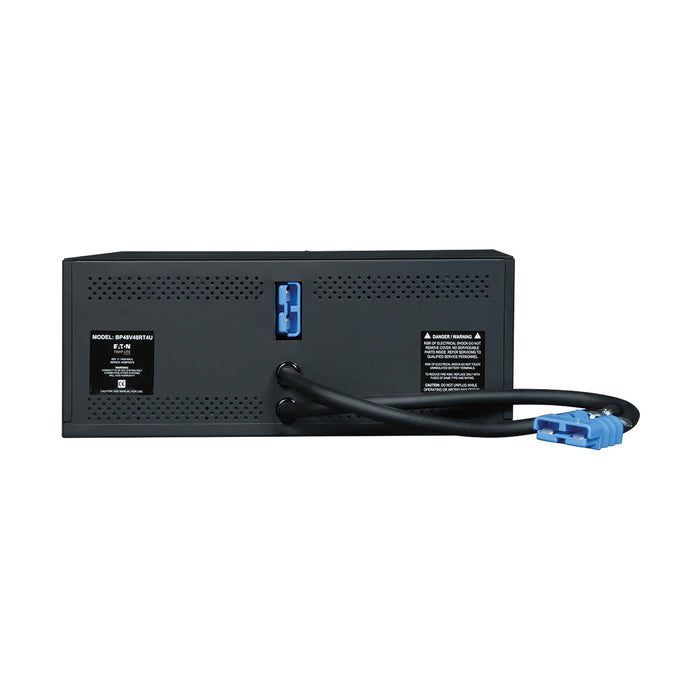

| UPS Connection | 20.5 in (52.1 cm), 4-gauge DC cable attached |
| Material | Steel |

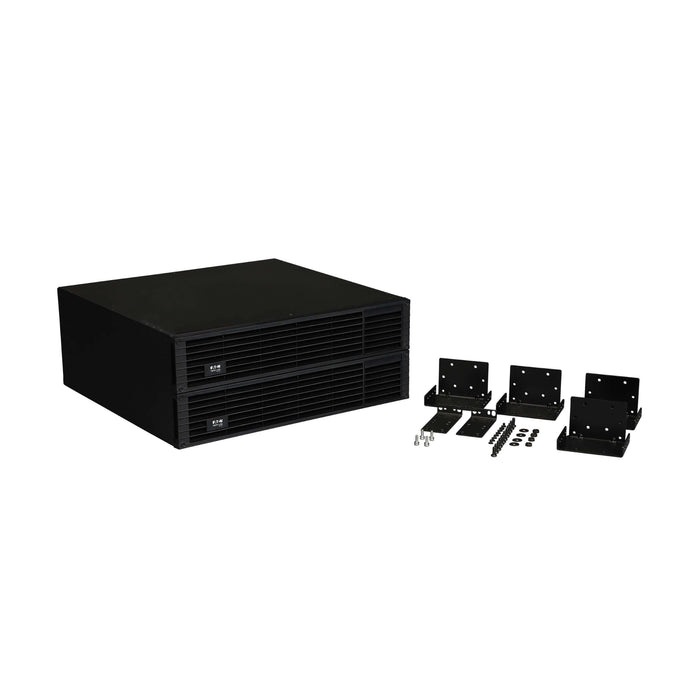

| Mounting Accessories (Included) | 2-post 19" rackmount kit |
| Mounting Accessories (Optional) | 4-post kit (4POSTRAILKIT) |
| Minimum Rack Depth Required | 20 in / 50.8 cm |
| Unit Dimensions (H x W x D) | 6.89 x 17.33 x 16.74 in (17.78 x 44 x 42.5 cm) |
| Unit Weight | 143.3 lbs / 65 kg |
| Shipping Dimensions (H x W x D) | 13.5 x 22.5 x 23.5 in (34.29 x 57.15 x 59.69 cm) |
| Shipping Weight | 170 lbs / 77.11 kg |
| Certifications | RoHS, CE (Europe) |
| Warranty (U.S. & Canada) | 2-year limited |
| Warranty (International) | 1-year limited |
