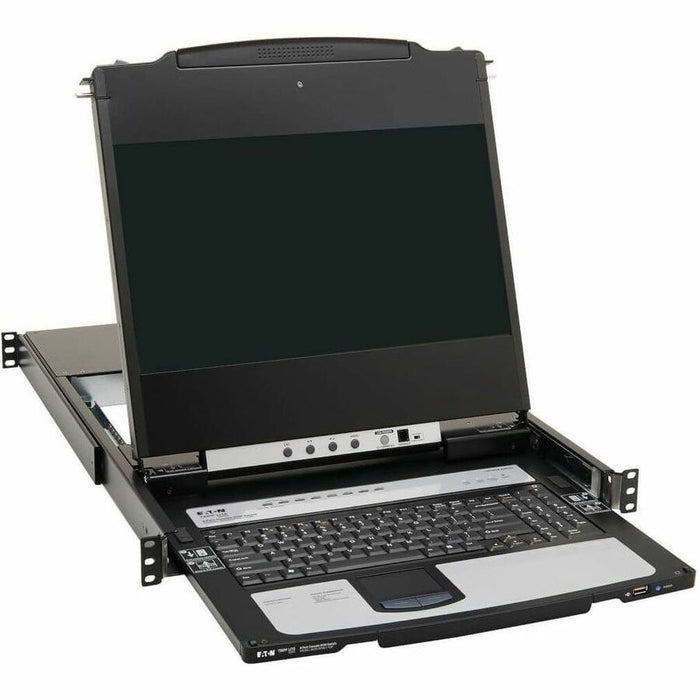

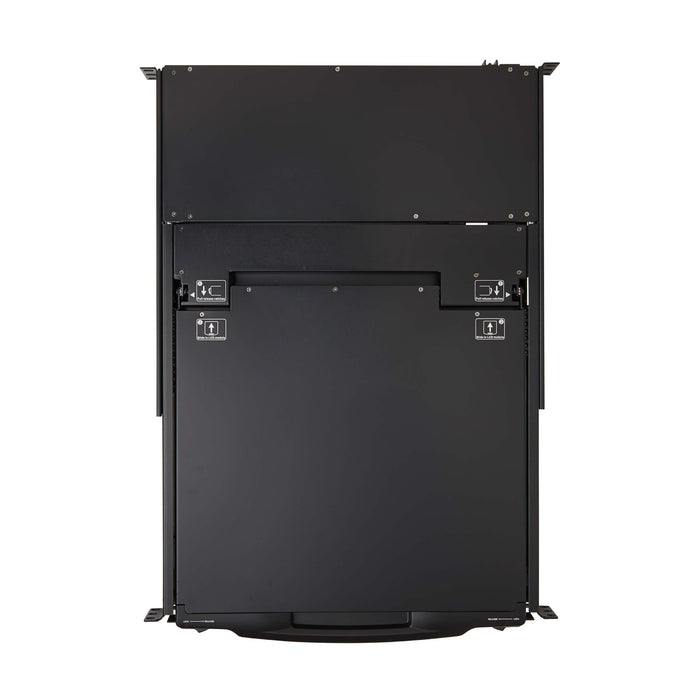

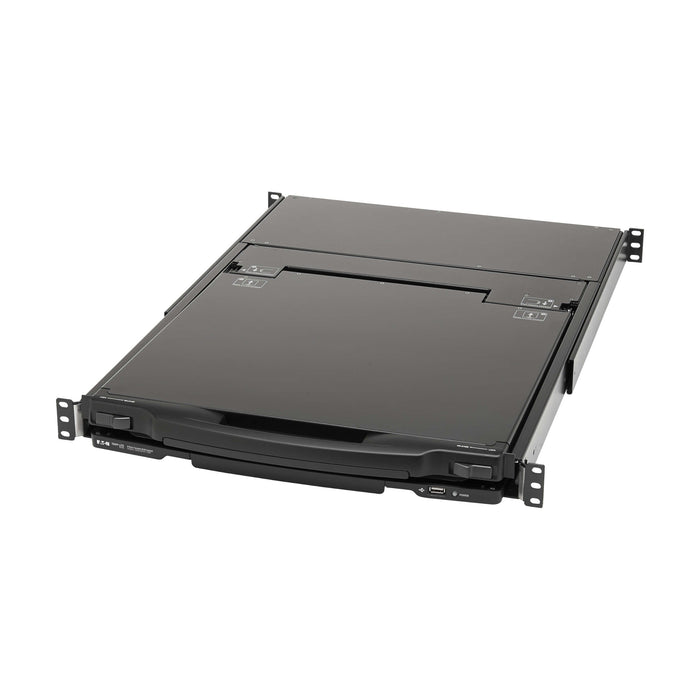

Eaton Tripp Lite NetDirector 8-Port DisplayPort KVM Switch Console with 17" LCD, IP Remote, Dual-Rail, 1U Rackmount, TAA (B030-DP08-17DIP)
The Eaton Tripp Lite B030-DP08-17DIP NetDirector KVM switch integrates a 17-inch LCD console, keyboard, touchpad, and built-in IP remote access into a 1U rackmount form factor. Supporting up to eight DisplayPort computers or servers, this all-in-one solution delivers 24/7 local or remote control over LAN, WAN, or internet—ideal for enterprise-grade IT environments.

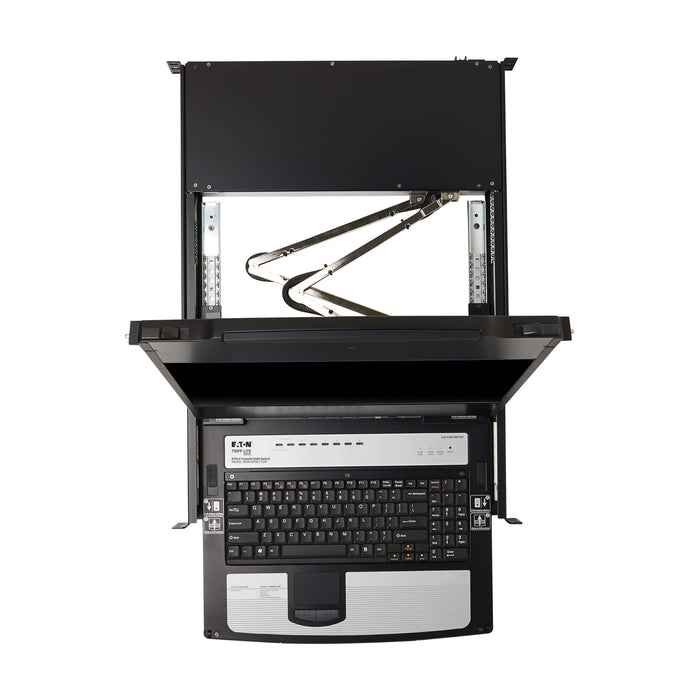

Its dual-rail design enables the LCD to remain visible while the keyboard/touchpad slides away, maximizing rack efficiency. Supporting full HD 1080p at 60 Hz and advanced security features—including multi-level passwords and remote authentication (RADIUS, LDAP, LDAPS, Active Directory)—this switch ensures smooth, secure operations. Compatible with Windows, macOS, Linux, UNIX, and Novell, the B030-DP08-17DIP offers simplified control, seamless integration, and reduced total cost of ownership.
| Category | Details |
|---|---|
| Model Number | B030-DP08-17DIP |
| Max Connected CPUs | 8 |
| Display | 17" LCD, Full HD 1920 x 1080 @ 60 Hz |
| Video Input Type | DisplayPort |
| Console Interface | USB Keyboard/Mouse, DisplayPort Monitor |
| Remote Access | IP via LAN/WAN/Internet; Supports Java & Windows apps (non-browser) |
| Port Switching | GUI, OSD, Pushbutton, Hotkey |
| Authentication Protocols | RADIUS, LDAP, LDAPS, MS Active Directory |
| Encryption Supported | DES, 3DES, AES, RC4, SSL, RSA (up to 1024-bit) |
| USB Hub Port | 1 x USB 1.1 |
| Rackmount Form Factor | 1U, Dual-Rail, 19" Rack-Mountable |
| Dimensions (H x W x D) | 1.73 x 18.90 x 26.77 in (44 x 480 x 680 mm) |
| Weight | 31 lbs (14.06 kg) |
| Power Consumption | 38.4W @ 100-240V AC, 50/60Hz |
| Operating Temp Range | 0°C to 40°C (32°F to 104°F) |
| Compliance | RoHS, REACH, Trade Agreements Act (TAA) |
| Warranty | 1-Year Limited Warranty |

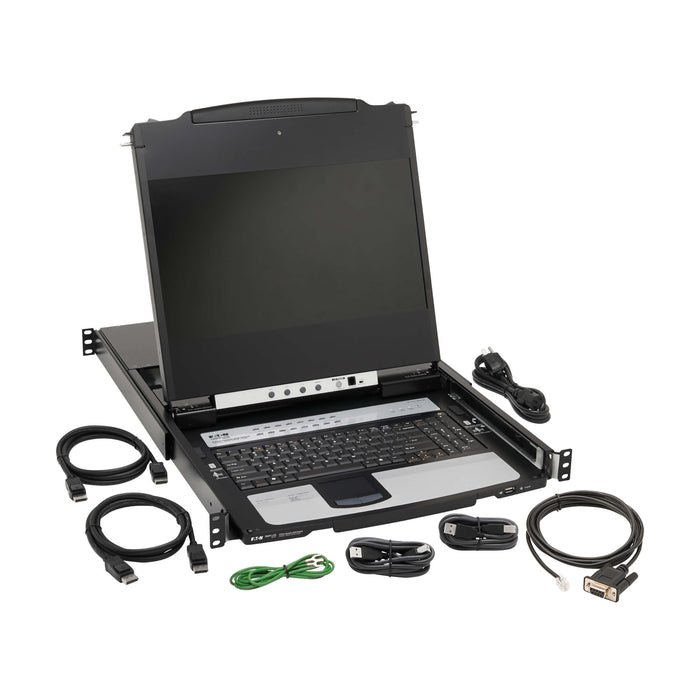

| Included Accessories | 2x DP Cables, 2x USB A/B Cables, Power Cord, RJ11 Firmware Cable, Manuals |
