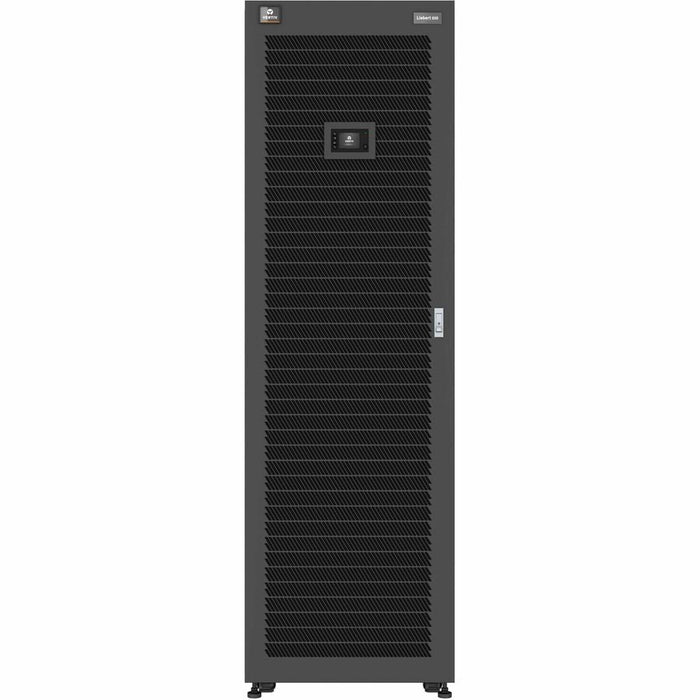

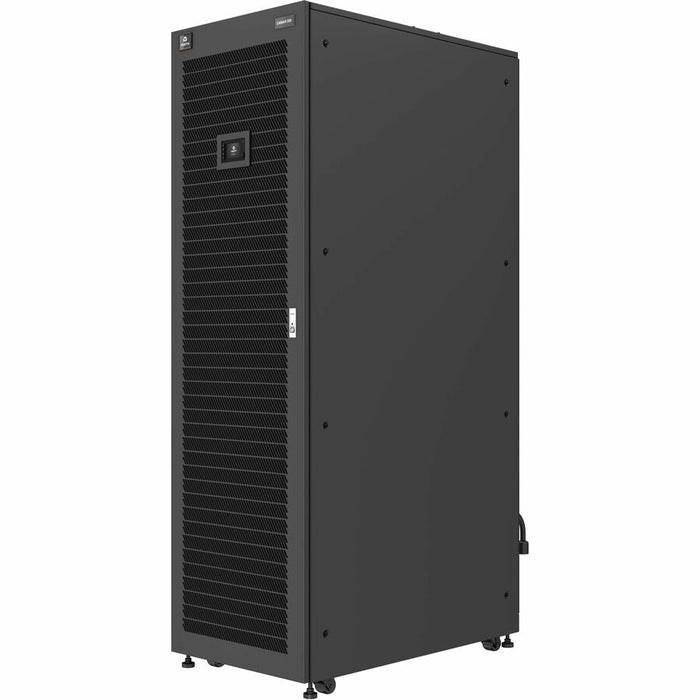

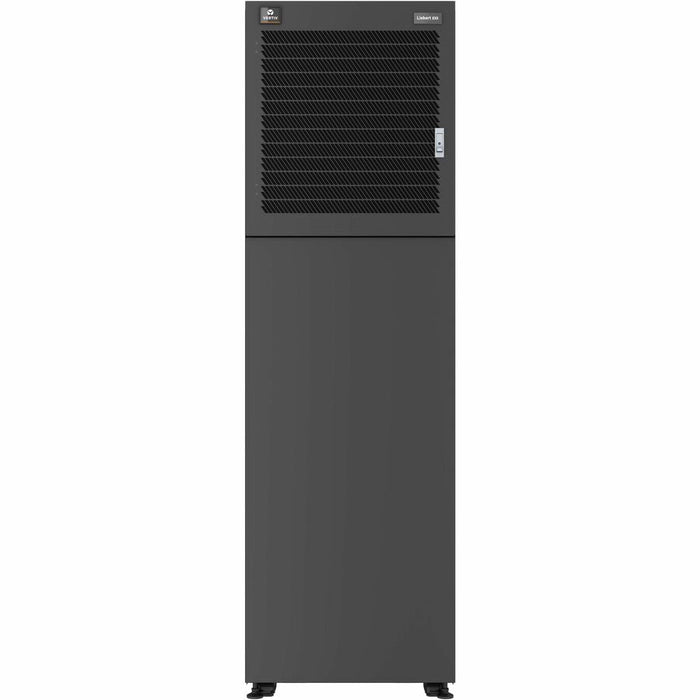

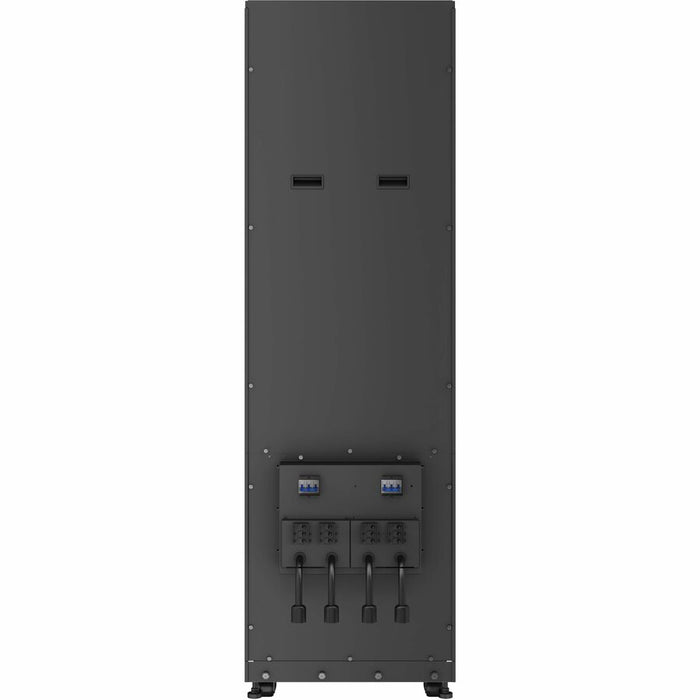

Vertiv Liebert EXS 15kVA Tower UPS, 3-Phase, 208/120V, SNMP, 18min Runtime (EXSV-15KXRTN)
by Vertiv

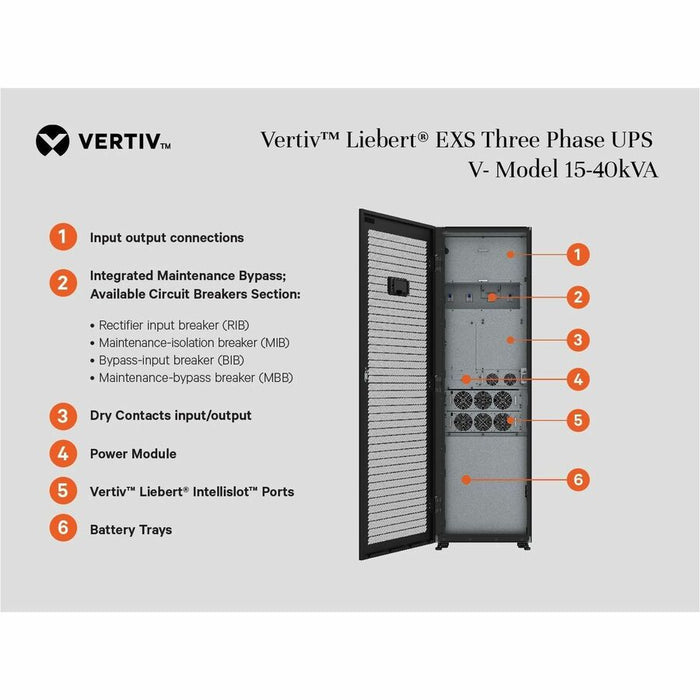

The Vertiv Liebert EXS V-Model UPS (EXSV-15KXRTN) delivers efficient and reliable three-phase online power protection with a compact footprint and robust features. Offering 15kVA/15kW capacity with true online double-conversion, it ensures continuous clean power for servers, networking, storage, and security systems. With top fan ventilation and SNMP connectivity, it supports flexible deployment across various environments. It includes an integrated maintenance bypass, high power factor (1.0), and up to 18 minutes of runtime at full load. ENERGY STAR® 2.0 certified for energy efficiency.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Model | EXSV-15KXRTN |
| Series | Liebert EXS V-Model |
| Form Factor | Tower |
| UPS Type | Online Double Conversion |
| Power Capacity | 15kVA / 15kW |
| Voltage Input | 120V AC / 230V AC |
| Voltage Output | 208V/120V AC or 220V/127V AC |
| Input Frequency | 40–70 Hz |
| Output Frequency | 60 Hz |
| Power Factor | 1.0 (Unity) |
| Runtime (Full Load) | 18 minutes |
| Runtime (Half Load) | 49 minutes |
| Battery Type | Valve-regulated Sealed Lead Acid |
| Battery Weight | 762.60 lbs |
| Management Interface | IS-Unity DP Card (SNMP, Modbus TCP/IP, BacNet IP, Relay Contact) |

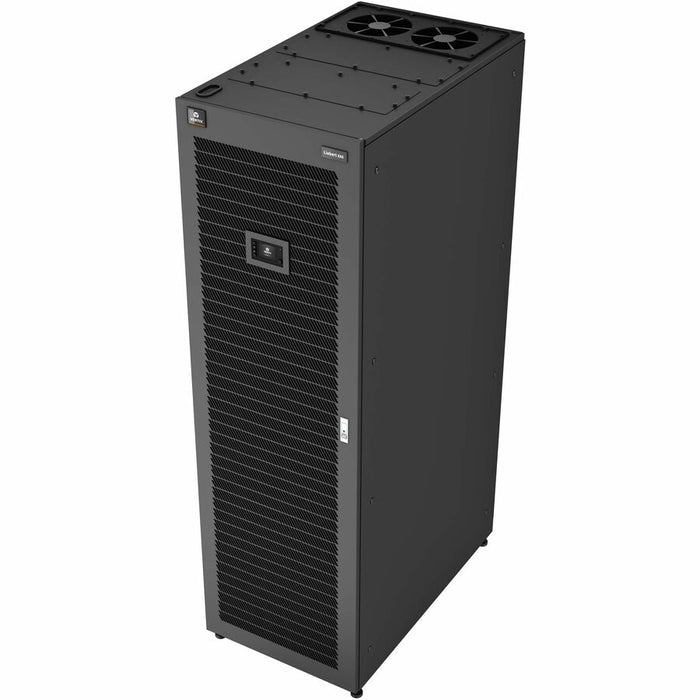

| Cooling | Top Fan |
| Environmental Sensors | Humidity, Temperature |
| Operating Temp | Up to 104°F (40°C) |
| Max Elevation | 4921 ft |
| Certifications | ENERGY STAR 2.0, UL 1778, CSA, RoHS, WEEE |
| Warranty | 1-Year Limited |
| Dimensions (HxWxD) | 78.7" x 23.6" x 39.3" |
| Unit Weight | 1455 lbs |
| Shipping Weight | 521 lbs |
| Included Items | Quick Installation Guide, Unity DP Card, Software (Download), Safety Docs |
