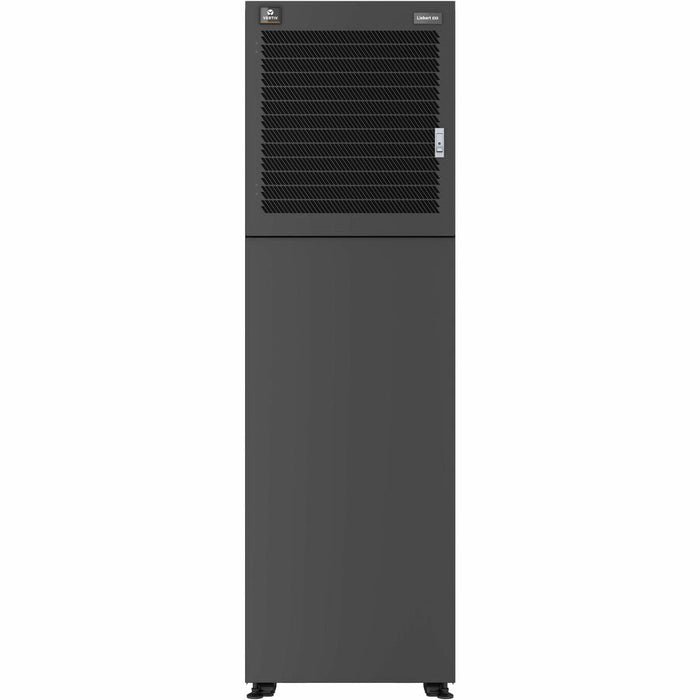

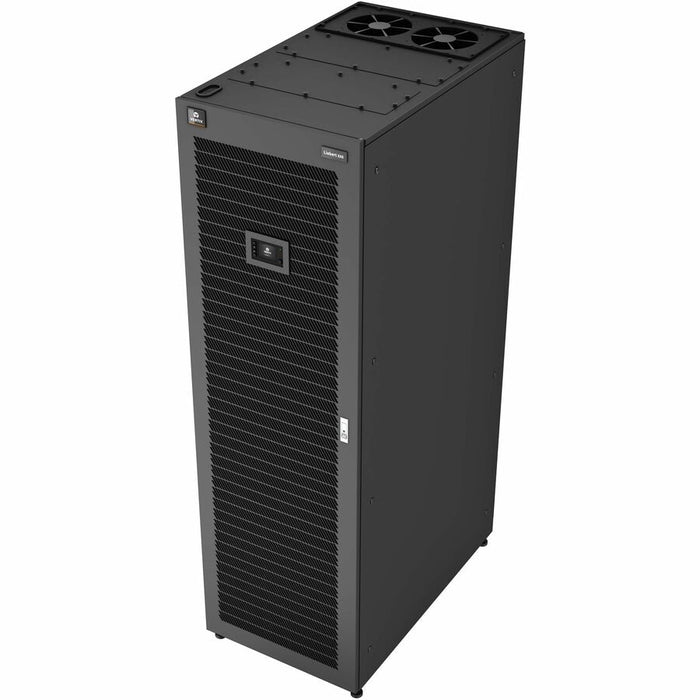

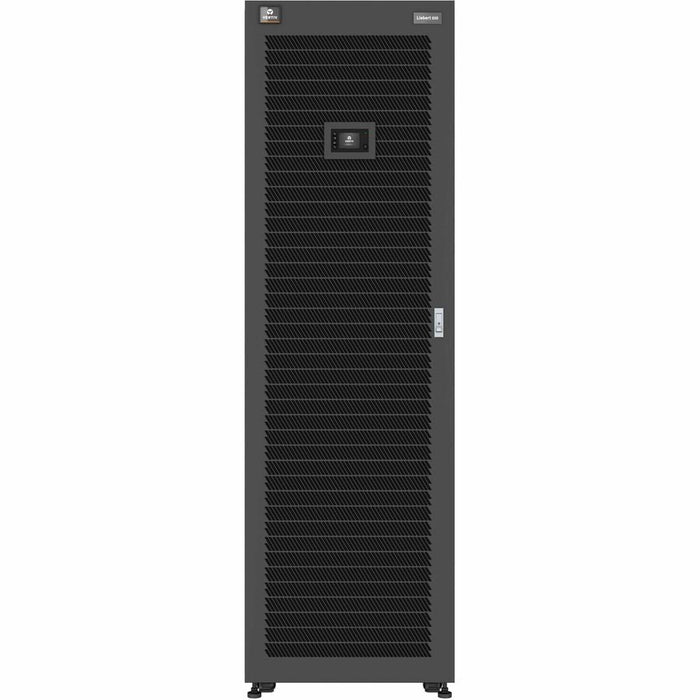

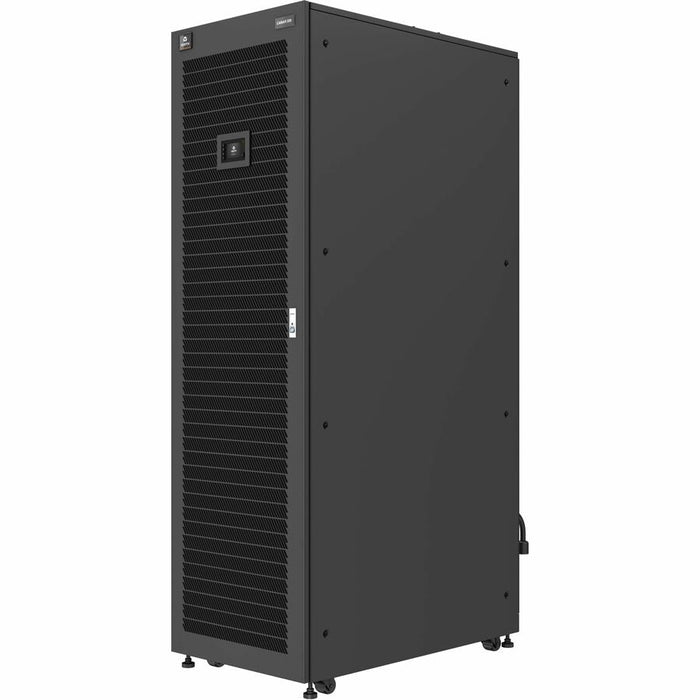

Vertiv Liebert EXS V-Model UPS Tower 20kVA/20kW 3-Phase w/ SNMP & Top Fan (EXSV-20KXRTN)
by Vertiv
The Vertiv Liebert EXS V-Model EXSV-20KXRTN is a high-performance, compact 20kVA/20kW UPS system designed for reliable protection of mission-critical systems in IT, healthcare, retail, and industrial applications. Featuring online double-conversion technology and unity power factor, it ensures stable power delivery across a broad voltage and frequency range. With a top-fan cooling configuration, intelligent SNMP/Modbus/BacNet network card, integrated maintenance bypass, and scalable runtime (13 minutes at full load), it delivers power protection with optimal efficiency. ENERGY STAR® 2.0 certified, this UPS system supports eco-mode operation and flexible installation in row, room, or wall settings.
| Specification | Details |
|---|---|
| Model | EXSV-20KXRTN |
| Brand | Vertiv Liebert |
| UPS Type | Double Conversion Online |
| Topology | True On-Line, Double-Conversion |
| Form Factor | Tower |
| Phase | Three Phase |
| Power Capacity | 20kVA / 20kW |
| Input Voltage | 120/230V AC |
| Output Voltage | 208/220/127/120V AC |

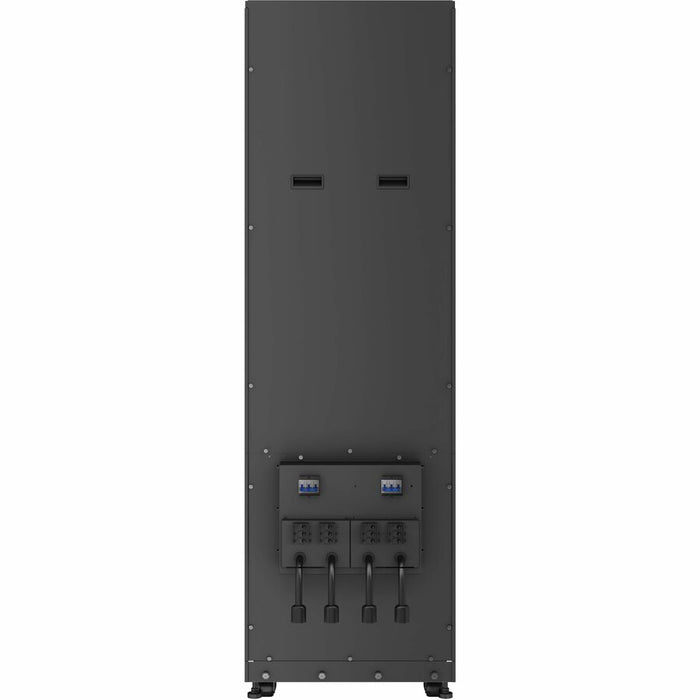

| Input/Output Connection | Hard Wire 4-wire (3PH + G) |
| Frequency (Input/Output) | 40–70 Hz / 60 Hz |
| Output Power Factor | 1.0 (Unity) |
| Runtime (Full Load / Half Load) | 13 min / 36 min |
| Battery Type | Valve-Regulated Lead Acid |
| Battery Weight | 762.60 lbs |
| Cooling Type | Top Fan |
| Communication | SNMP, Modbus TCP/IP, BacNet, Relay, RS-485 |
| Software | Vertiv Power Insight (free download) |
| Sensors | Temperature & Humidity Sensors |
| Dimensions (H x W x D) | 78.7" x 23.6" x 39.3" |
| Weight | Approx. 1455 lbs |
| Certifications | UL 1778, CSA No.22.2 107.3, ENERGY STAR 2.0, RoHS, WEEE |
| Environment | Max Temp: 104°F (40°C), Elevation: 4921 ft |
| Warranty | 1 Year Limited |
| Included Items | UPS unit, IS-Unity DP card, Quick Guide, Safety Info |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 521 lbs |
