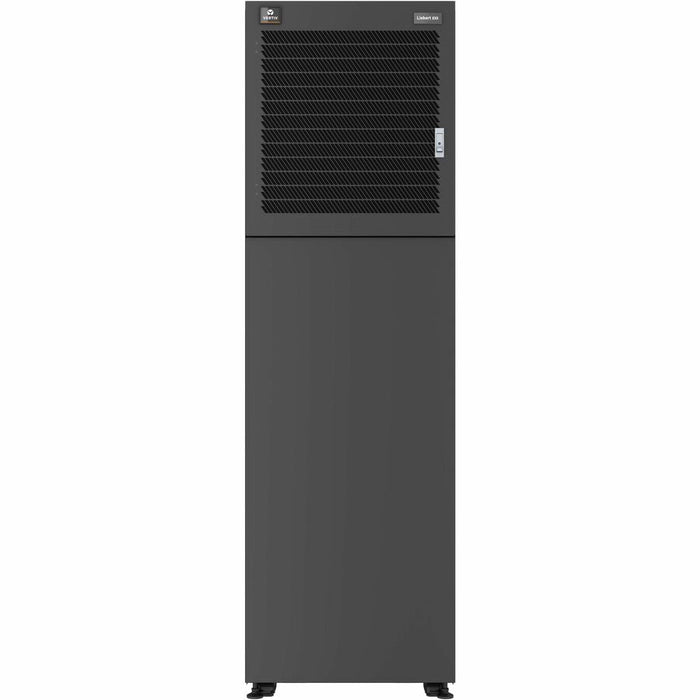

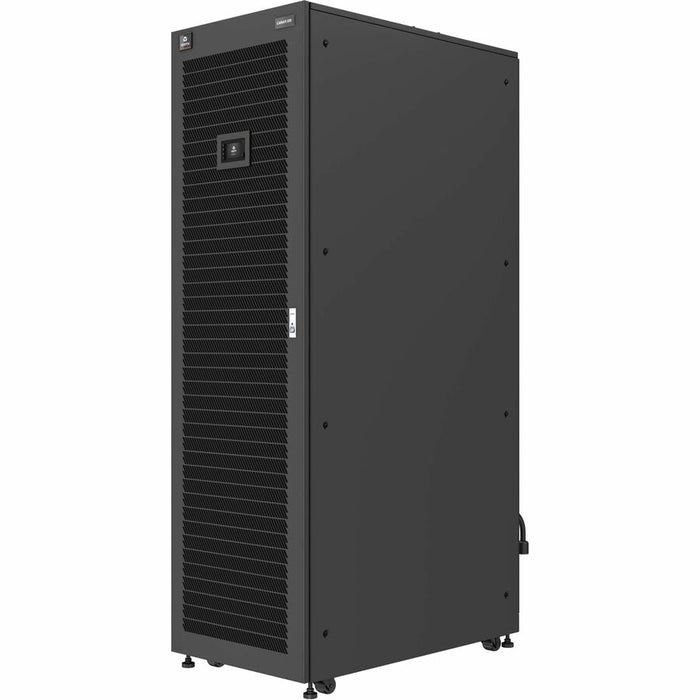

Vertiv Liebert EXS V-Model 40kVA Tower UPS 208/120V 3PH w/ SNMP (EXSV-40KTN)
by Vertiv
The Vertiv Liebert EXSV-40KTN is a 40kVA/40kW true online double-conversion UPS in a compact tower form. Designed for small data rooms and IT applications, it delivers clean, continuous power for critical loads with unity power factor and high efficiency. With integrated SNMP via IS-Unity Card, flexible battery and PDU options, and a built-in maintenance bypass cabinet, this UPS ensures reliable operation even during service. Its top fan design and robust lead-acid battery system offer runtime flexibility, scalable backup, and maximum uptime protection.
| Specification | Details |
|---|---|
| Model Number | EXSV-40KTN |
| Form Factor | Tower |
| Capacity | 40 kVA / 40 kW |
| Input Voltage | 120V / 230V AC |
| Output Voltage | 208/120V or 220/127V AC |
| Input Frequency | 40 - 70 Hz |
| Output Frequency | 60 Hz |
| Power Factor | 1 (Unity) |
| Technology | True Online Double Conversion |
| Phase | 3-Phase, 4-Wire (3PH + G) |
| Runtime | 6 minutes (full load), 18 minutes (half load) |
| Battery Type | Valve-Regulated Lead Acid |
| Battery Weight | 762.60 lb |
| Communication Options | SNMP, Modbus RS-485, BacNet IP, Relay Contact |
| Included Software | Vertiv Power Insight (download) |
| Integrated Bypass | Yes |
| Environmental Sensors | Temperature, Humidity |
| Max Operating Temp | 104°F (40°C) |
| Max Elevation | 4921 ft |
| Certifications | ENERGY STAR 2.0, UL 1778, CSA C22.2 No.107.3, RoHS, WEEE |
| Dimensions (HxWxD) | 78.7" x 23.6" x 39.3" |
| Unit Weight | 1543 lb |
| Shipping Weight | 1600+ lb (approx. from image: 609 lb discrepancy likely battery) |
| Warranty | 1-Year Limited (New and Factory Fresh) |
