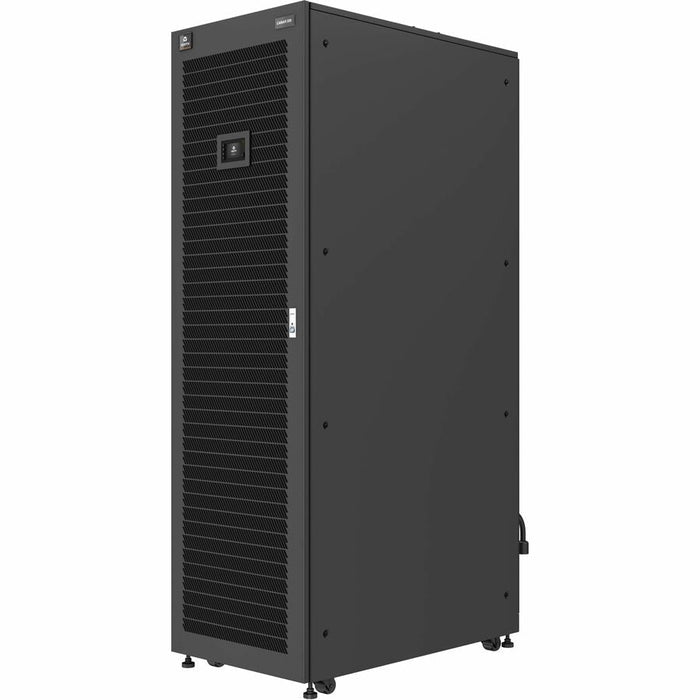

Vertiv Liebert EXSV-EBC1 External Battery Cabinet | 37.5Ah VRLA | 1-String
by Vertiv
The Vertiv Liebert EXSV-EBC1 is a high-performance external battery cabinet designed for use with Vertiv Liebert EXS UPS V-Models (15kVA–20kVA). Equipped with a 37.5Ah, 1-string VRLA battery, this cabinet provides extended runtime, improving power protection for critical systems. With a compact footprint and robust design, it ensures reliable backup in IT, healthcare, retail, and light industrial environments.
| Specification | Details |
|---|---|
| Model Number | EXSV-EBC1 |
| Battery Type | VRLA (Valve-Regulated Lead Acid) |
| Battery Configuration | 1 String |
| Battery Capacity | 37.5Ah |
| Runtime with 15kVA UPS | Up to 41 min (full load) / 94 min (half) |
| Runtime with 20kVA UPS | Up to 28 min (full load) / 69 min (half) |
| Compatible UPS Models | EXSV-15KN, EXSV-15KTN, EXSV-20KN, EXSV-20KTN |
| Dimensions (W x D x H) | Matches UPS cabinet: 600 x 1000 x 2000 mm |
| Weight | Approx. 762.6 lbs (346 kg) |
| Certifications | ENERGY STAR, UL 1778, CSA No.22.2 |
| Environment | 0–40°C, 5–95% RH non-condensing |
