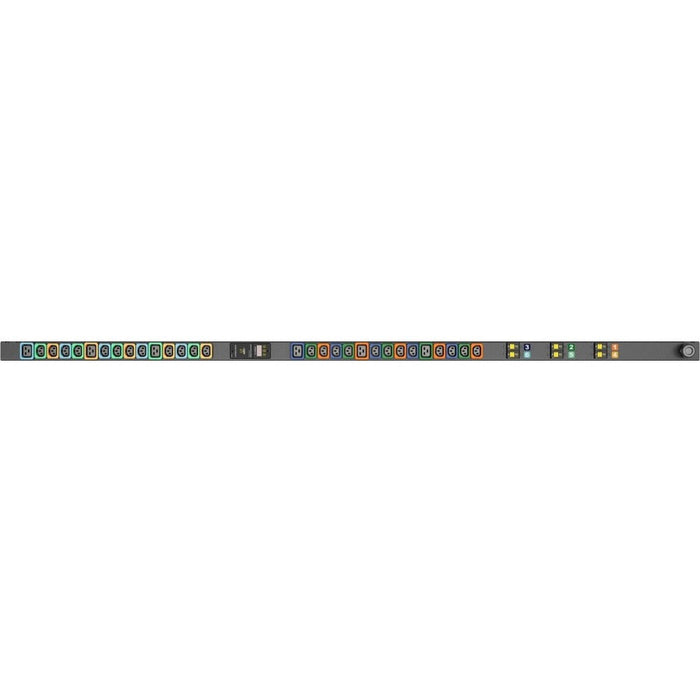

Vertiv Geist MN01D4W1-30PN63-3PS56B0A10-S-A 30-Outlets Metered Vertical PDU (I10143L)
by Vertiv
The Vertiv Geist I10143L is a high-performance, metered PDU featuring 30 U-Lock outlets for secure, reliable power distribution. Designed for modern data center environments, this 0U vertical PDU includes 24 IEC C13 and 6 IEC C19 outlets, supported by a 3P+N+E IP44 plug. With real-time power monitoring enabled via Visible Light Communication (VLC), users gain instant access to accurate phase and circuit-level metrics using the Geist Mobile App. Easily upgradeable to a monitored unit with the interchangeable IMD module—without power disruption—this unit is ideal for high-density racks requiring 16.6 kW of reliable power at 230V/415V AC.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Part Number | I10143L |
| Model | MN01D4W1-30PN63-3PS56B0A10-S-A |
| PDU Type | Metered |
| Phase | Three Phase |
| Plug Type | 3P+N+E (IP44) |
| Receptacle Type | 24 x U-Lock IEC 60320 C136 x U-Lock IEC 60320 C19 |
| Input Voltage | 230V AC / 415V AC |
| Output Voltage | 230V AC |
| Input Current | 30A |
| Power Capacity | 16.60 kW |
| Form Factor | 0U Vertical |
| Mount Type | Rack-Mountable |
| Dimensions (W x D x L) | 2" x 2.3" x 72" |
| Monitoring | VLC-enabled via Geist Mobile App |
| Upgradeable | Hot-swap IMD for monitoring upgrade |
| Protection | Overcurrent Protection |
| Package Includes | PDU Unit, Mounting Bracket Kit |
| Warranty | 5-Year Limited Warranty |
| Weight (Shipping) | 17 lbs |
| Condition | New and Factory Fresh |
| Country of Origin | United States |
