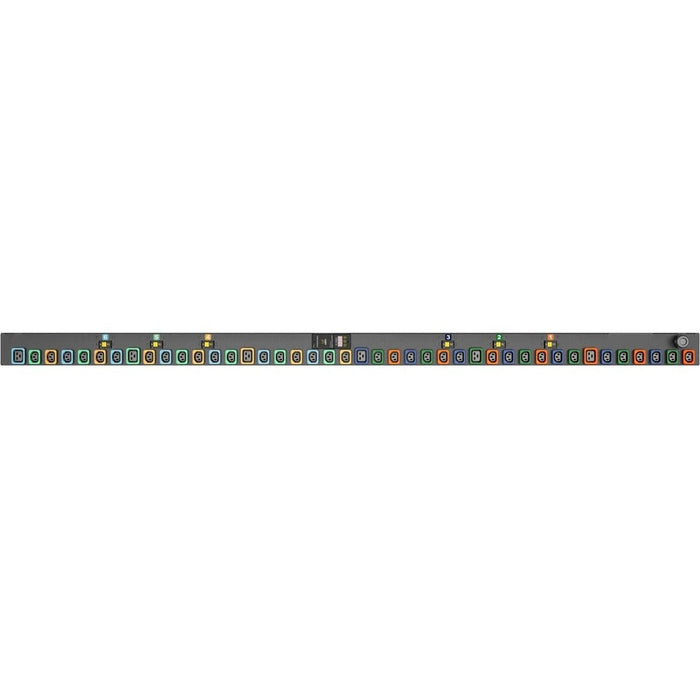

Vertiv Geist MN01D5W1-42PZ63-3PS56B0A10-S-A 42-Outlet Vertical Metered PDU (I10149L)
by Vertiv
The Vertiv Geist I10149L is a 42-outlet vertical metered PDU designed for enterprise-grade rack environments. With 36 locking IEC C13 and 6 locking IEC C19 receptacles, it offers secure, high-density power distribution. This unit features real-time monitoring with Visible Light Communication (VLC), enabling users to transmit power usage data from the LED display to mobile devices using the Geist Mobile App. The upgradeable hot-swap Interchangeable Monitoring Device (IMD) allows easy transition from metered to monitored functionality without downtime. Ideal for mission-critical deployments, it supports 230V AC input and 16.6 kW of output, backed by a 5-year limited warranty.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Part Number | I10149L |
| Model | MN01D5W1-42PZ63-3PS56B0A10-S-A |
| PDU Type | Metered |
| Phase | Three Phase |
| Input Voltage | 230V AC |
| Voltage Range | 230V AC – 400V AC |
| Output Voltage | 230V AC |
| Power Capacity | 16.6 kW |
| Input Current | 30A |
| Plug Type | IEC 60309 3P+N+E |
| Receptacles | 36 × Locking IEC C13, 6 × Locking IEC C19 |
| Form Factor | Vertical |
| Mount Type | Rack-mountable (0U) |
| Dimensions (WxDxL) | 3.5" x 2" x 75" |
| Protection | Overcurrent Protection |
| Monitoring | Visible Light Communication (VLC) via Geist Mobile App |
| Upgradeable IMD Module | Yes (Hot-swappable) |
| Environmentally Friendly | Yes |
| Package Includes | PDU, Vertical Mounting Bracket Kit |
| Warranty | 5-Year Limited |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 19 lbs |
| Country of Origin | United States |
