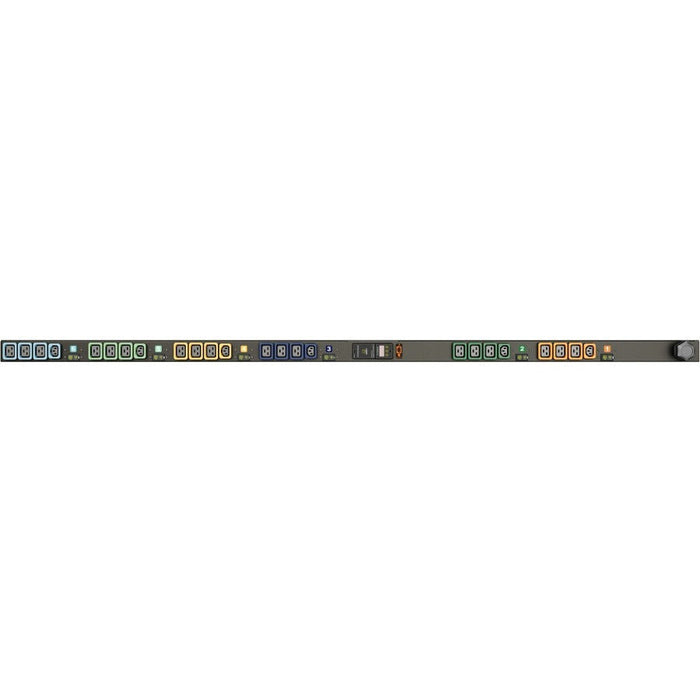

Vertiv Geist MN01D8W1-24P6H8-6PS15D0A10-S 24-Outlets Metered Vertical PDU (I10092L)
The Vertiv Geist I10092L is a 24-outlet metered vertical PDU engineered for high-density rack environments. With a robust 60A 3P+E (IP67) plug input, it provides 17.2 kW of reliable power distribution at 230V AC. The unit features 6 x U-Lock IEC C13 and 18 x U-Lock IEC C19 receptacles, offering secure connections for critical equipment.
Utilizing Visible Light Communication (VLC) technology, real-time power usage data can be captured directly from the unit's LED display to your handheld device via the Geist Mobile App. Built-in upgradeable hot-swap IMD support allows seamless transition from metered to monitored functionality without power interruption. Ideal for mission-critical setups needing flexible, scalable power management with overcurrent protection.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Part Number | I10092L |
| Model | MN01D8W1-24P6H8-6PS15D0A10-S |
| PDU Type | Metered |
| Phase | Three Phase |
| Input Plug Type | 3P+E (IP67) |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Power Rating | 17.20 kW |
| Receptacle Types | 6 x U-Lock IEC 60320 C13, 18 x U-Lock IEC 60320 C19 |
| Protection | Overcurrent Protection |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Dimensions (WxDxL) | 2.3" x 3.4" x 72" |
| Environment Friendly | Yes |
| Warranty | 5-Year Limited |
| Shipping Weight | 30 lbs |
| Package Includes | PDU Unit, Mount |
