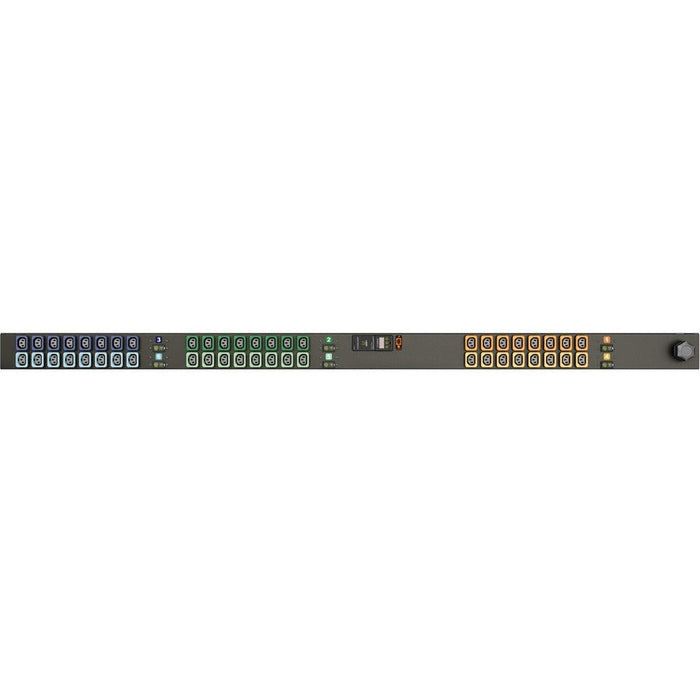

Vertiv Geist MN01D9W1-48L138-5CS15A0A10-S 48-Outlets Metered Vertical PDU
by Vertiv
The Vertiv Geist I10077L is a metered 48-outlet vertical PDU engineered for high-density rack power distribution in enterprise environments. With 3P+E CA input and 48 U-Lock IEC 60320 C13 outlets, it supports 230V AC input and delivers a 14.4kW power rating. Designed for safety and monitoring, it features real-time power metrics and VLC (Visible Light Communication) to transmit usage data via the Geist Mobile App. Upgradeable hot-swap IMD modules allow seamless transformation from Metered to Monitored configurations—no downtime required. Rack-mountable and RoHS compliant, the I10077L delivers efficient, scalable power management backed by a 5-year Vertiv warranty.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Vertiv Geist |
| Model | MN01D9W1-48L138-5CS15A0A10-S |
| Part Number | I10077L |
| Product Type | Metered PDU |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 50 A |
| Power Rating | 14.4 kW |
| PDU Type | Metered |
| Plug Type | 3P+E CA |
| Receptacle Type | 48 x U-Lock IEC 60320 C13 |
| Phase | Three Phase |
| Mount Type | Vertical Rack-mountable |
| Rack Height | 0U |
| Dimensions (WxDxL) | 3.8" x 3.4" x 72" |
| Protection | Overcurrent Protection |
| Compliance | RoHS |
| Environmentally Friendly | Yes |
| Upgradeable IMD | Yes, Hot-swap capable |
| Warranty | 5-Year Limited Warranty |
| Condition | New and Factory Fresh |
| Shipping Weight | 32 lbs |
| Package Includes | PDU, Vertical Mounting Bracket Kit |
| Country of Origin | United States |
