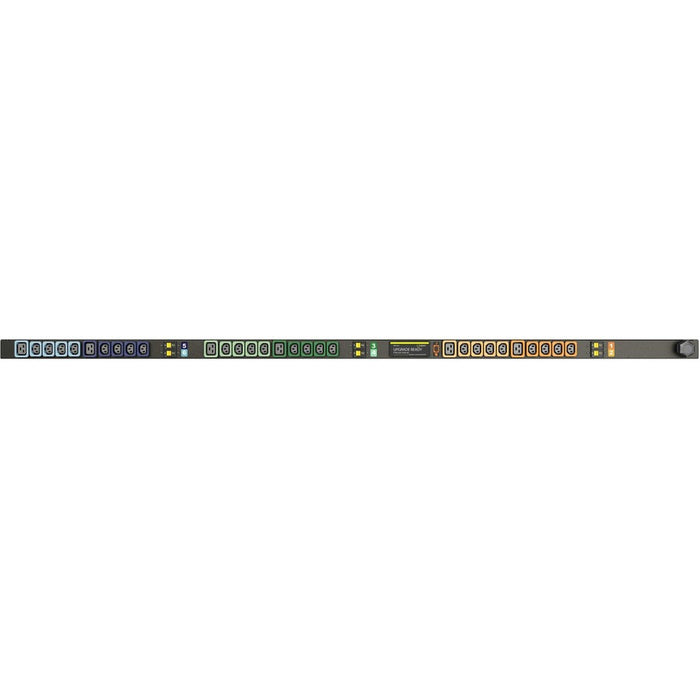

Vertiv Geist I10011L 30-Outlets 0U Vertical Basic PDU – 24 C13 & 6 C19, 30A, 230–415V, Hot-Swap Ready
by Vertiv
The Geist I10011L PDU delivers essential power distribution with the flexibility to upgrade. Featuring 30 lockable IEC outlets (24 C13 and 6 C19), this basic 0U vertical rack-mountable PDU is equipped with a 3P+N+E IP44 plug and supports input voltages from 230V to 415V AC. Built with Geist’s hot-swap Interchangeable Monitoring Device (IMD) technology, it enables seamless upgrades to metered or monitored configurations without downtime. With 16.6kW power capacity and overcurrent protection, it’s an ideal choice for reliable power in high-density data environments.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Model | MN01X4W1-30PN63-3PS56B0A10-S |
| Part Number | I10011L |
| Product Type | Basic Power Distribution Unit (PDU) |
| Phase | Three Phase |
| Plug Type | 3P+N+E (IP44) |
| Input Voltage | 230V AC / 415V AC |
| Output Voltage | 230V AC |
| Input Current | 30A |
| Power Rating | 16.60 kW |
| Receptacles | 24 x Lock IEC C13, 6 x Lock IEC C19 |
| Form Factor | 0U Vertical Rack-Mountable |
| Dimensions (WxDxL) | 2" x 2.3" x 72" |
| Shipping Weight | 17 lbs |
| Warranty | 5-Year Limited Warranty |
| Compliance | Environmentally Friendly, Overcurrent Protected |
| Country of Origin | United States |
| Included Accessories | Vertical Mounting Bracket Kit |
