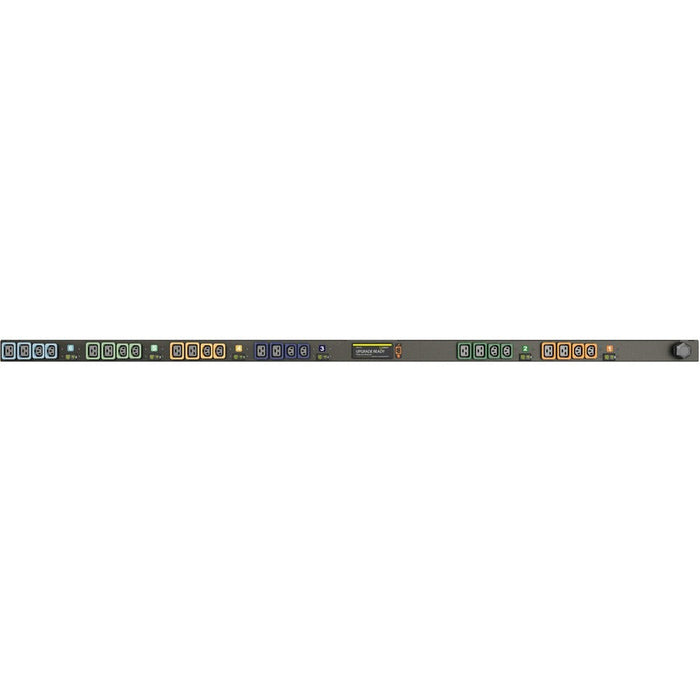

Vertiv Geist MN01X8W1-24PBB8-6PS15D0A10-S 24-Outlets Vertical Basic PDU (I10045L)
by Vertiv
The Vertiv Geist I10045L is a 0U vertical rack-mountable Basic PDU designed to deliver reliable and efficient power distribution for high-density IT environments. Featuring 24 outlets (12 x C13 and 12 x C19), this PDU supports a 60A input via IEC 60309 3P+E and delivers up to 17.2 kW of power at 208V output. With Geist’s Upgradeable hot-swap IMD technology, it allows seamless future upgrades to metered or monitored configurations without downtime. Designed for performance, safety, and flexibility, it’s ideal for scalable data center power management.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Model | MN01X8W1-24PBB8-6PS15D0A10-S |
| Part Number | I10045L |
| PDU Type | Basic |
| Phase | Three Phase |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Plug Type | IEC 60309 3P+E 60A |
| Input Current | 60 A |
| Power Capacity | 17.2 kW |
| Outlet Configuration | 12 x IEC 60320 C13, 12 x IEC 60320 C19 |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mount Type | Rack-mountable |
| Dimensions (WxDxL) | 2.3" x 3.4" x 72" |
| Protection Type | Overcurrent Protection |
| Environmentally Friendly | Yes |
| Included Accessories | Vertical Mounting Bracket Kit |
| Product Condition | New and Factory Fresh |
| Warranty | 5 Year Limited |
| Shipping Weight | 30 lbs. |
| Country of Origin | United States |
