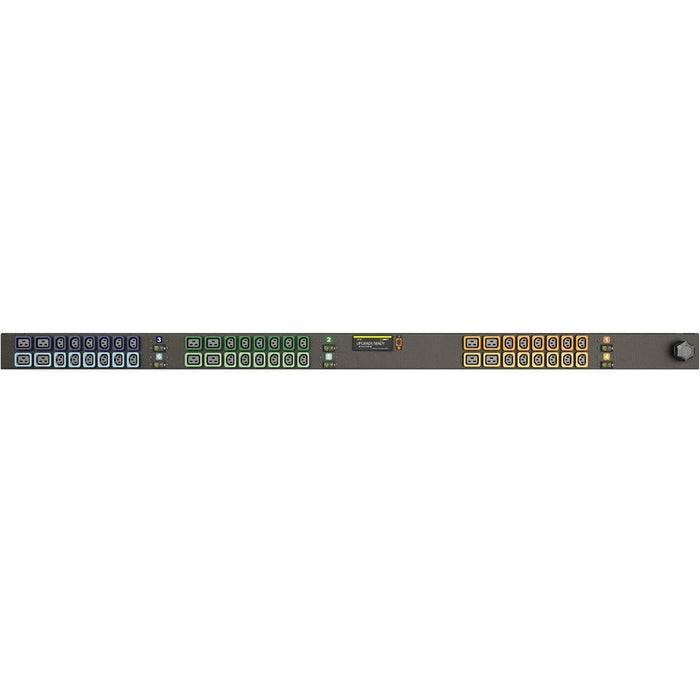

Vertiv Geist MN01X9W1-48PZB8-5CS15A0A10-S 48-Outlets Vertical Rack PDU
by Vertiv
The Vertiv Geist MN01X9W1-48PZB8-5CS15A0A10-S delivers high-performance power distribution for data centers and IT racks. Designed with 48 lockable IEC outlets (36 x C13, 12 x C19), it supports 230V AC input and is rated for 14.4 kW output. This 0U vertical PDU features a 3P+E CA plug and is rack-mountable. Built with upgradeable hot-swap Geist technology, users can transform the unit from basic to monitored or metered configurations with ease—without service disruption. Backed by a 5-year warranty and factory-fresh from the U.S., it’s a scalable solution for high-density deployments.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | I10023L |
| Model | MN01X9W1-48PZB8-5CS15A0A10-S |
| Product Type | PDU (Basic) |
| Mount Type | Rack-mountable |
| Orientation | Vertical |
| Rack Height | 0U |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Plug Type | 3P+E CA |
| Input Current | 50 A |
| Power Capacity | 14.40 kW |
| Receptacle Type | Lock IEC 60320 C13 (36x), Lock IEC 60320 C19 (12x) |
| Total Outlets | 48 |
| Protection | Overcurrent Protection |
| Width | 3.8" |
| Depth | 3.4" |
| Length | 72" |
| Package Includes | PDU unit, Vertical Mounting Bracket Kit |
| Environmental | Environmentally Friendly |
| Origin | United States |
| Warranty | 5-Year Limited Warranty |
| Condition | New and Factory Fresh |
| Shipping Weight | 1 lbs. |
