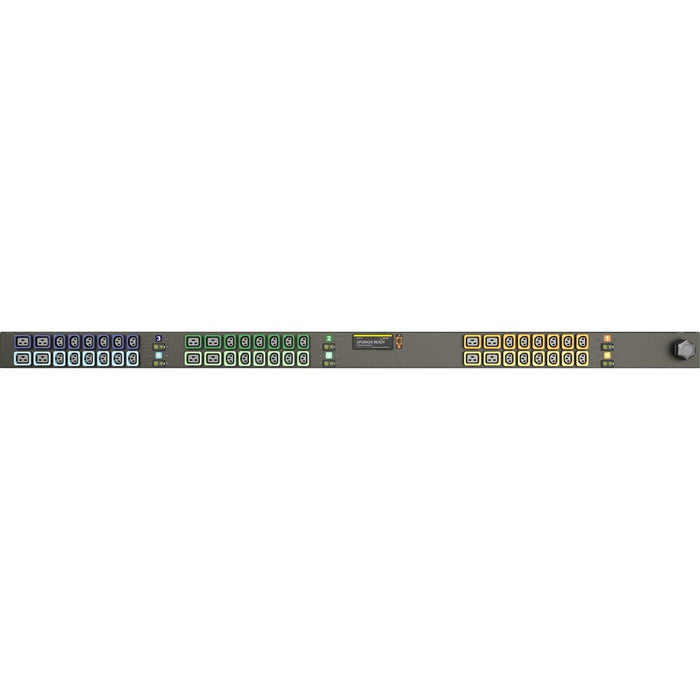

Vertiv Geist MN01X9W1-48PZB8-6PS15B0A10-S 48-Outlets Vertical PDU
by Vertiv
The Vertiv Geist I10024L PDU delivers dependable, rack-based power distribution with 48 outlets in a space-saving 0U vertical form factor. Featuring 36 U-Lock IEC C13 and 12 U-Lock IEC C19 receptacles, this basic PDU supports 230V AC input and up to 17.2kW output at 60A. Designed with Geist’s upgradeable hot-swap technology, you can seamlessly add metering or monitoring capabilities using an Interchangeable Monitoring Device (IMD), all without powering down. Built for demanding environments, it’s IP44 rated and includes overcurrent protection, remote outlet switching, and a 5-year limited warranty.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Product Model | MN01X9W1-48PZB8-6PS15B0A10-S |
| Part Number | I10024L |
| PDU Type | Basic |
| Phase | Three Phase |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating | 17.20 kW |
| Input Current | 60 A |
| Plug Type | 1 x 3P+E (IP44) |
| Receptacles | 36 x Lock IEC 60320 C13, 12 x Lock IEC 60320 C19 |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mount Type | Rack-mountable |
| Remote Outlet Switching | Yes |
| Protection Type | Overcurrent Protection |
| Width | 3.8" |
| Depth | 3.4" |
| Length | 72" |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Limited Warranty | 5 Year |
| Shipping Weight | 32 lbs |
| Condition | New and Factory Fresh |
