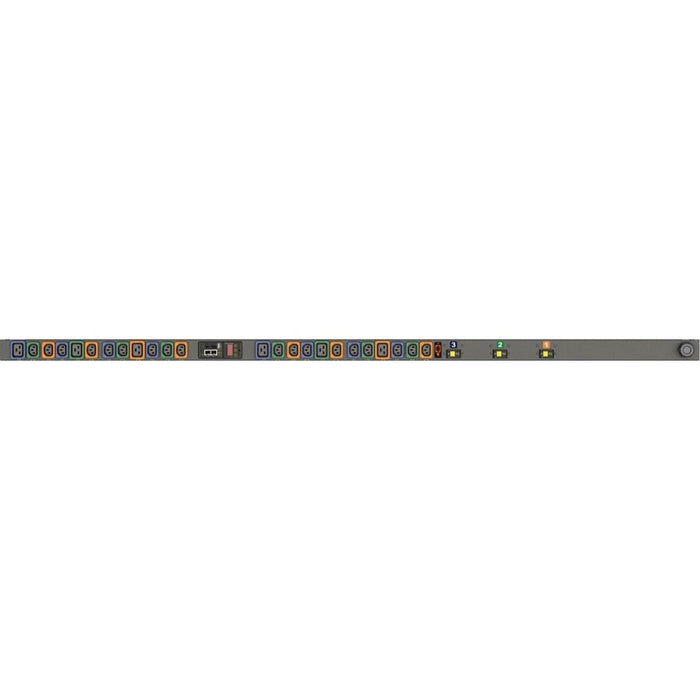

Vertiv Geist NR30026L 24-Outlets Monitored PDU, 0U Vertical, 230V, 30A, L15-30P
by Vertiv
The Vertiv Geist NR30026L is a 24-outlet monitored PDU designed for advanced power management and network visibility. Featuring IP-based outlet-level monitoring, this PDU uses Visible Light Communication (VLC) technology to transmit real-time power metrics to your mobile device via the Geist Mobile App. With 18 x IEC C13 and 6 x IEC C19 locking outlets, it ensures secure, reliable connections. The upgradeable hot-swap IMD (Interchangeable Monitoring Device) future-proofs your investment, and its vertical 0U rack-mount design maximizes space efficiency in high-density IT environments.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Part Number | NR30026L |
| Model | MNR3EGB1-24PH68-3TL15A0A10-S-A |
| Product Type | Monitored PDU |
| Mounting Type | Rack-mountable (0U) Vertical |
| Input Voltage | 230V AC (Range: 200–240V AC) |
| Output Voltage | 208V AC |
| Input Current | 30A |
| Plug Type | NEMA L15-30P |
| Receptacle Configuration | 18 x Locking IEC C13, 6 x Locking IEC C19 |
| Network Interface | RJ-45 (Ethernet) |
| Power Rating | 8600W |
| Protection | Overcurrent Protection |
| Management Protocols | DHCP, HTTP/S, SNMP v1/v2c/v3, Syslog, SSH, etc. |
| Remote Outlet Switching | Yes |
| Dimensions (WxDxL) | 2" x 2.6" x 66.3" |
| Weight | 22 lbs |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | 5-Year Limited |
| In the Box | PDU + Mounting Brackets |
