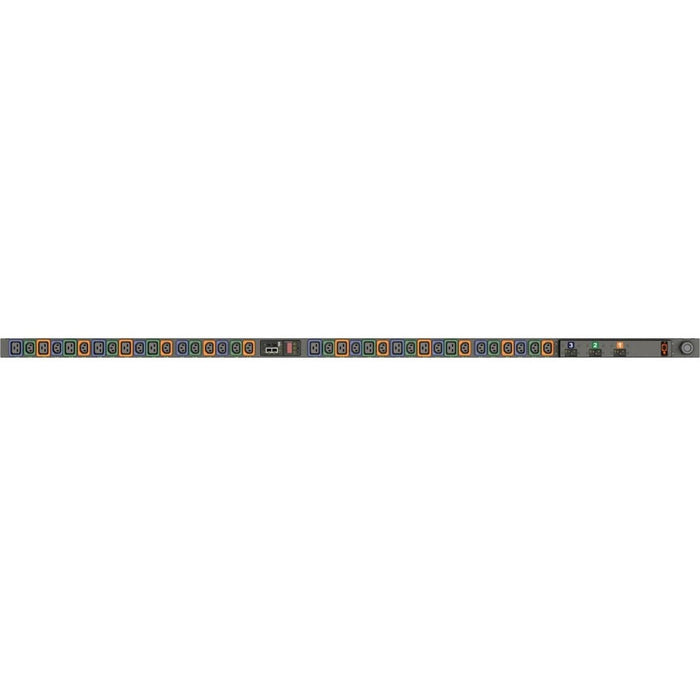

Vertiv Geist NR30042L 36-Outlets Monitored PDU, 230V, 0U, Rack-Mountable
by Vertiv
The Vertiv Geist NR30042L is a monitored power distribution unit (PDU) offering advanced power monitoring and environmental sensing. Equipped with 36 locking IEC outlets (24 x C13, 12 x C19) and a 3P+E CA plug, it delivers robust three-phase power at 230V AC with 10 kW output capacity. Using Visible Light Communication (VLC), real-time power metrics are transmitted via LED display to the Geist Mobile App, ensuring seamless visibility. Featuring remote outlet switching and network connectivity through RJ-45, this vertical 0U rack-mountable unit includes a hot-swappable IMD module for future-proof upgrades.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Model | MNR3EGW1-36PNB8-4CS15A0A10-S-A |
| Part Number | NR30042L |
| Product Type | Monitored PDU |
| Mount Type | Rack-mountable (Vertical) |
| Rack Height | 0U |
| Outlets | 24 x Locking IEC C13, 12 x Locking IEC C19 |
| Plug Type | 3P+E CA |
| Input Voltage | 230V AC (200V–240V Range) |
| Output Voltage | 208V AC |
| Power Rating | 10 kW |
| Input Current | 35 A |
| Network Connectivity | RJ-45 |
| Remote Switching | Yes |
| Monitoring Protocols | DHCP, HTTP/S, SNMP (v1/v2c/v3), Syslog, SSH, etc. |
| Dimensions (WxDxL) | 2" x 2.6" x 72" |
| Shipping Weight | 20 lbs |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | 5-Year Limited Warranty |
| Package Includes | PDU, Vertical Mounting Bracket Kit |
