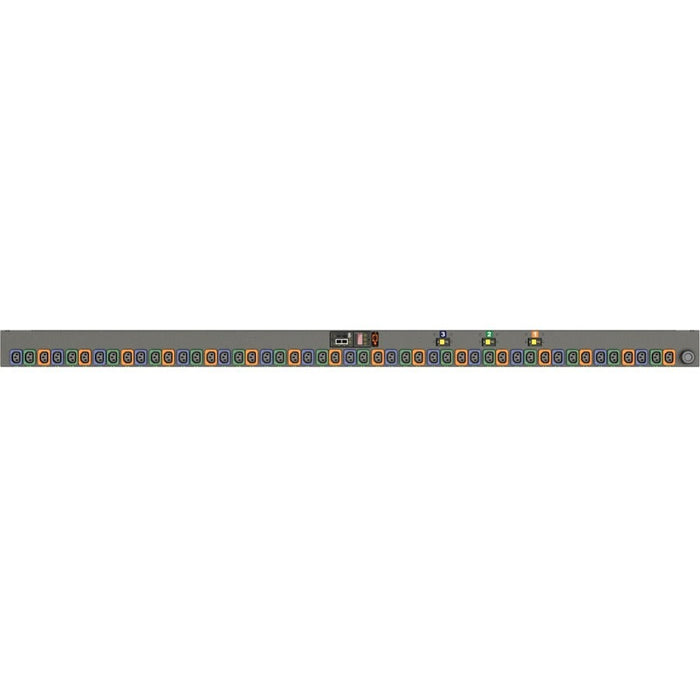

Vertiv Geist NR30029L 48-Outlets Monitored PDU, 30A, NEMA L15-30P, 0U, Vertical
by Vertiv
The Vertiv Geist NR30029L is a high-density, monitored PDU offering 48 locking IEC C13 outlets and a NEMA L15-30P plug for robust three-phase power distribution. Featuring real-time power monitoring, it uses Visible Light Communication (VLC) to transmit detailed power data from the display to your mobile device via the Geist Mobile App. Equipped with Geist Upgradeable hot-swap technology, the PDU’s Interchangeable Monitoring Device (IMD) can be easily upgraded as your infrastructure evolves. With vertical, zero-U rack mounting, overcurrent protection, and comprehensive network management support (SNMP, HTTP/S, SSH, Syslog, and more), this PDU ensures reliable and intelligent power delivery for mission-critical IT environments.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | NR30029L |
| Model | MNR3EHW1-48L138-3TL15A0A10-S-A |
| Product Type | Monitored PDU |
| Plug Type | NEMA L15-30P |
| Input Voltage | 230V AC (200–240V AC range) |
| Input Current | 30A |
| Output Voltage | 208V AC |
| Power Rating | 8600W |
| Receptacle Type | 48 × U-Lock IEC 60320 C13 |
| Phase | Three Phase |
| Network Interface | 1 × RJ-45 (Ethernet) |
| Network Protocols | SNMP (v1/v2c/v3), HTTP/S, SSH, Syslog, LDAP, etc. |
| Mounting Orientation | Vertical |
| Rack Units | 0U |
| Mount Type | Rack-mountable |
| Dimensions (W × D × L) | 3.7" × 2.6" × 70" |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | 5-Year Limited Warranty |
| Package Includes | PDU, Vertical Mounting Bracket Kit |
