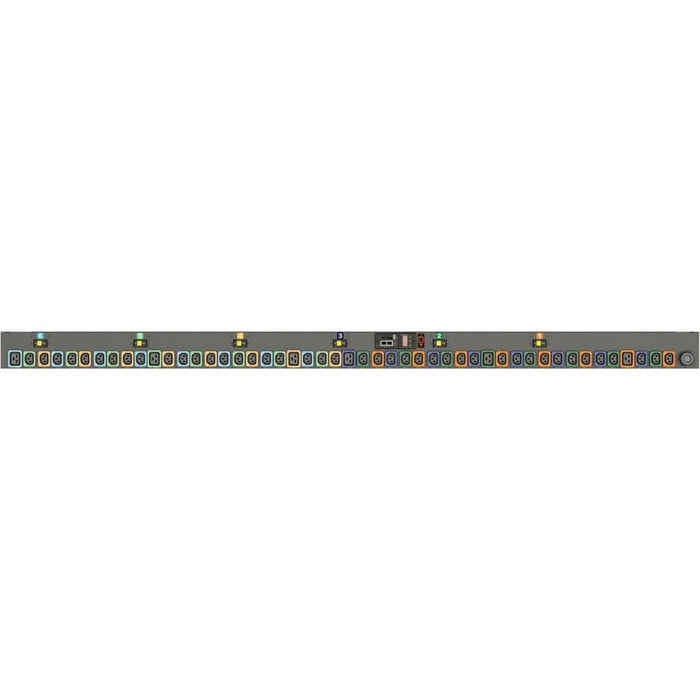

Vertiv Geist NR30038L 48-Outlets Monitored Vertical Rack PDU, 16.6kW, 3P+N+E IP44, C13/C19, 0U
by Vertiv
The Vertiv Geist NR30038L is a high-density, 0U vertical rack-mountable PDU designed for critical IT environments. Equipped with 48 locking IEC outlets (42 x C13, 6 x C19), this monitored power distribution unit supports real-time, outlet-level power metrics with network connectivity via RJ-45. It features Visible Light Communication (VLC) for quick power data access using the Geist Mobile App and is upgradeable via a hot-swappable Interchangeable Monitoring Device (IMD). Built for 3-phase loads with IP44-rated 3P+N+E plug, this unit handles up to 16.6 kW at 30A input and ensures robust protection and compatibility with enterprise power management tools.
| Category | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Model | MNR3EHW1-48MI13-3PS56B0A10-S-A |
| Part Number | NR30038L |
| Product Type | Monitored PDU |
| Phase | Three Phase |
| Input Plug | 3P+N+E (IP44) |
| Input Voltage | 230 V AC / 415 V AC |
| Voltage Range | 200–240 V AC / 346–415 V AC |
| Output Voltage | 230 V AC |
| Input Current | 30 A |
| Power Capacity | 16.6 kW |
| Receptacle Type | 42 x Locking IEC C13, 6 x Locking IEC C19 |
| Mount Type | Rack-mountable |
| Rack Units | 0U |
| Mount Orientation | Vertical |
| Network Port | RJ-45 |
| Network Management | SNMP (v1/v2c/v3), HTTP/S, SSH, Syslog, DHCP, IPv4/IPv6, etc. |
| Protection | Overcurrent Protection |
| Dimensions (WxDxL) | 3.7" x 2.6" x 70" |
| Shipping Weight | 22 lbs |
| Package Contents | PDU, Vertical Mounting Bracket Kit |
| Warranty | 5-Year Limited |
| Condition | New and Factory Fresh |
| Country of Origin | United States |
| Eco-Friendly | Yes |
