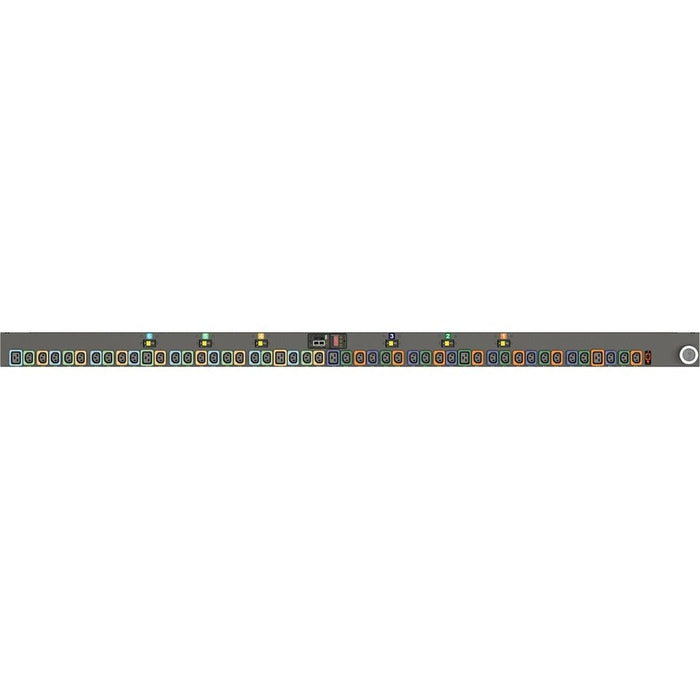

Vertiv Geist NR30056L 48-Outlets 0U Vertical Monitored PDU, 17.2kW, IP67, 230V
by Vertiv
The Vertiv Geist NR30056L is a high-performance 48-outlet vertical monitored PDU designed for enterprise-grade power distribution. Engineered with 3P+E (IP67) connectivity and real-time monitoring, it delivers 17.2kW of power at 230V AC across 42 x IEC C13 and 6 x IEC C19 U-Lock outlets. Integrated Visible Light Communication (VLC) enables instant access to power usage data via the Geist Mobile App, while hot-swappable IMD technology ensures future-ready upgradability. Ideal for rack-mounted deployments, the NR30056L supports secure, reliable, and manageable power delivery in data center environments.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Model | MNR3EHW1-48MI18-6PS15D0A10-S-A |
| Part Number | NR30056L |
| PDU Type | Monitored |
| Form Factor | Vertical, 0U Rack-mountable |
| Input Plug | 3P+E (IP67) |
| Input Voltage | 230V AC (Range: 200V–240V AC) |
| Output Voltage | 208V AC |
| Input Current | 60A |
| Power Capacity | 17.2 kW |
| Outlets | 42 x IEC 60320 C13 (U-Lock), 6 x IEC 60320 C19 (U-Lock) |
| Protection | Overcurrent, Double Pole |
| Network Interface | RJ-45 (Ethernet) |
| Communication Protocols | DHCP, HTTP/S, SNMP v1/v2c/v3, SSH, SMTP, IPv4/6, etc. |
| Mounting Kit | Included |
| Dimensions (WxDxL) | 3.7" x 2.6" x 75" |
| Shipping Weight | 26 lbs |
| Environmentally Friendly | Yes |
| Country of Origin | USA |
| Warranty | 5-Year Limited Warranty |
| Condition | New and Factory Fresh |
