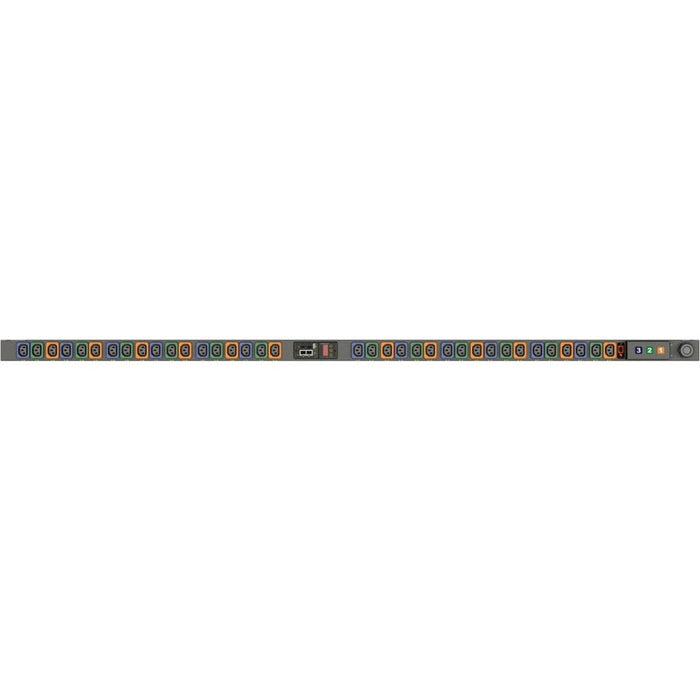

Vertiv Geist NS30008L 36-Outlets Switched Rack PDU (3P+N+E, C13, 11kW, 0U)
by Vertiv
The Vertiv Geist NS30008L is a high-performance switched rack PDU engineered for robust power distribution and advanced monitoring in enterprise environments. Featuring 36 lockable IEC C13 outlets and a 3P+N+E (IP44) input plug, this vertical 0U PDU delivers up to 11 kW of power with input voltage support from 200V to 415V AC. Built-in IP-based monitoring, outlet-level switching, and compatibility with the Geist Mobile App via Visible Light Communication (VLC) allow for comprehensive, real-time visibility into power usage and environmental data. Upgradeable via a hot-swappable IMD module, the NS30008L ensures scalability for evolving data center needs.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Model | MNS3EGB0-36L133-2PS56B0A10-S-A |
| Part Number | NS30008L |
| Product Type | Switched Rack PDU |
| Outlet Count | 36 x U-Lock IEC 60320 C13 |
| Input Plug | 3P+N+E (IP44) |
| Input Voltage Range | 200–240V AC / 346–415V AC |
| Output Voltage | 230V AC |
| Input Current | 20A |
| Power Capacity | 11 kW |
| Phase | Three Phase |
| Mount Type | Vertical Rack-Mountable (0U) |
| Dimensions (WxDxL) | 2" x 2.6" x 66.3" |
| Management Protocols | SNMP (v1/v2c/v3), HTTP/HTTPS, SSH, Syslog, NTP, LDAP, RSTP, SMTP |
| Remote Switching | Yes |
| Network Interface | RJ-45 Ethernet |
| Monitoring | Visible Light Communication (VLC) via Geist Mobile App |
| Hot-Swap Module | Interchangeable Monitoring Device (IMD) |
| Environmentally Friendly | Yes |
| Warranty | 5-Year Limited Warranty |
| Shipping Weight | 18 lbs. |
| Country of Origin | United States |
