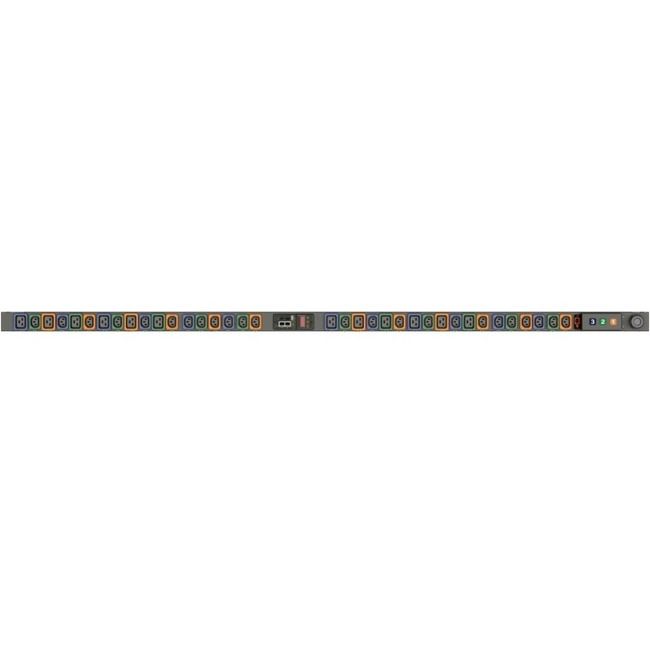

Vertiv Geist NS30010L 36-Outlets Switched Rack PDU, 24xC13 & 12xC19, 11kW, IP44
by Vertiv
The Vertiv Geist NS30010L is a high-density, switched rack PDU designed for intelligent power distribution in modern data centers. With 36 U-Lock outlets—24 x IEC 60320 C13 and 12 x IEC 60320 C19—this unit supports mission-critical equipment with secure connections and advanced outlet control. It features IP-based monitoring, remote switching, and real-time environmental data visibility via Visible Light Communication (VLC) and the Geist Mobile App. Its upgradeable IMD module ensures long-term flexibility, and the vertical 0U form factor makes it ideal for space-constrained rack environments.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand | Geist |
| Model Number | MNS3EGB0-36PNB3-2PS56B0A10-S-A |
| Part Number | NS30010L |
| Product Type | Switched Rack PDU |
| Mounting Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Total Outlets | 36 |
| Outlet Details | 24 x U-Lock IEC 60320 C1312 x U-Lock IEC 60320 C19 |
| Input Plug Type | 3P+N+E (IP44) |
| Input Plug Quantity | 1 |
| Input Voltage Range | 200–240V AC / 346–415V AC |
| Output Voltage | 230V AC |
| Input Current | 20A |
| Power Rating | 11 kW |
| Phase | Three Phase |
| Remote Switching | Yes |
| Network Connection | RJ-45 |
| Supported Protocols | DHCP, HTTP/HTTPS, IPv4/IPv6, LDAP, NTP, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog |
| Communication Technology | Visible Light Communication (VLC) |
| Upgradeable IMD Module | Yes (Hot-swappable) |
| Environment Monitoring | Supported (Sensors optional) |
| Dimensions (W x D x L) | 2" x 2.6" x 66.3" |
| Weight | 18 lbs |
| Warranty | 5-Year Limited Warranty |
| Condition | New and Factory Fresh |
| Package Includes | PDU unit, Vertical Mounting Bracket Kit |
| Eco-Friendly | Yes |
| Country of Origin | United States |
