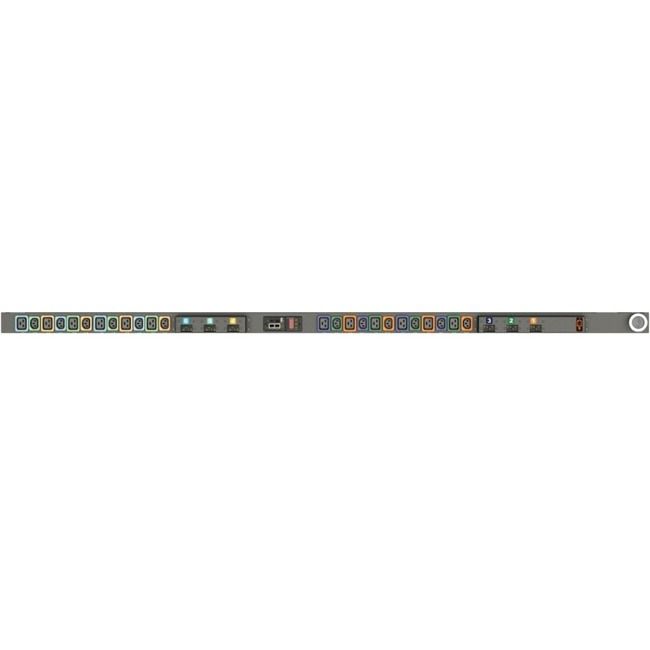

Vertiv Geist NS30049L 24-Outlets Switched PDU, 60A, 3P+E, Vertical Rack-Mount
by Vertiv
The Vertiv Geist NS30049L is a high-performance 24-outlet switched PDU designed for intelligent power distribution and advanced remote management. Featuring 12 U-Lock IEC C13 and 12 U-Lock IEC C19 outlets, this unit provides secure connections and IP-based control for critical IT environments. With built-in support for real-time power monitoring, remote switching, and Visible Light Communication (VLC) via the Geist Mobile App, this PDU ensures efficient, data-driven power management. Designed for vertical rack-mounting, it includes a 3P+E (IP44) plug, 60A input, and delivers up to 17.2 kW of power—perfect for high-density deployments.
| Specification | Details |
|---|---|
| Brand | Geist (Vertiv) |
| Model | MNS3EGW1-24PBB8-6PS15B0A10-S-A |
| Part Number | NS30049L |
| Product Type | Switched PDU |
| Input Plug Type | 3P+E (IP44) |
| Input Voltage | 200–240 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60A |
| Power Capacity | 17.20 kW |
| Receptacle Type & Quantity | 12 x U-Lock IEC C13, 12 x U-Lock IEC C19 |
| Phase | Three Phase |
| Form Factor | Vertical Rack-Mountable (0U) |
| Dimensions (WxDxL) | 2.3" x 2.6" x 70" |
| Network Connectivity | RJ-45, SNMP (v1/v2c/v3), HTTP/S, SSH, Syslog |
| Environmental Monitoring | Supported via Geist Upgradeable IMD |
| Switching Capabilities | Remote Outlet Switching |
| Protocols Supported | IPv4, IPv6, SNMP, DHCP, NTP, RSTP, LDAP, SMTP |
| Protection | Overcurrent Protection |
| Mounting Kit | Included |
| Warranty | 5-Year Limited Warranty |
| Country of Origin | United States |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 22 lbs. |
